This example shows how to use the C Function block to integrate legacy C functions that have start and terminate actions.
In this example, the legacy C functions are defined in
fault.h, and implemented in
To enable calling the C functions from the C Function block, in the model, specify the header file and the source file in the Configuration Parameters > Simulation Target pane. This model opens a log file, writes data to it, and then closes the log file. The
openLogFile function is called in the Start Code section and the
closeLogFile function is called in the Terminate Code section of the C Function block. In the Output Code section, the
incAndLogFaultCounter function is called. The prototype of the legacy functions are:
incAndLogFaultCounter(void *fid, unsigned int counter, double time)
void *fid is a file pointer,
unsigned int counter is the fault counter, and
double time indicates the time.
In this example the ports of the C Function block are configured as follows:
The file pointer returned by
openLogFile function and the fault counter are persistent symbols of the C Function block.
The input of the C Function block is mapped to time.

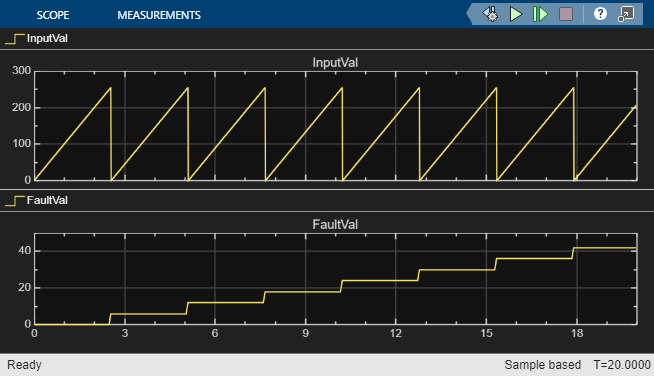

model = 'slexCFunctionStartTerm'; open_system(model); sim(model); slcc('clearCustomCodeModules');
