Probe
Output signal attributes, including width, dimensionality, sample time, and complex signal flag
Libraries:
Simulink /
Signal Attributes
HDL Coder /
Signal Attributes
Description
The Probe block outputs selected information about the signal on its input. The block can output the following attributes of the input signal: width, dimensionality, sample time, and a flag indicating whether the input is a complex-valued signal. The block has one input port. The number of output ports depends on the information that you select for probing, that is, signal dimensionality, sample time, and/or complex signal flag. Each probed value is output as a separate signal on a separate output port, with an independent data type control. During simulation, the block icon displays the probed data.
Examples

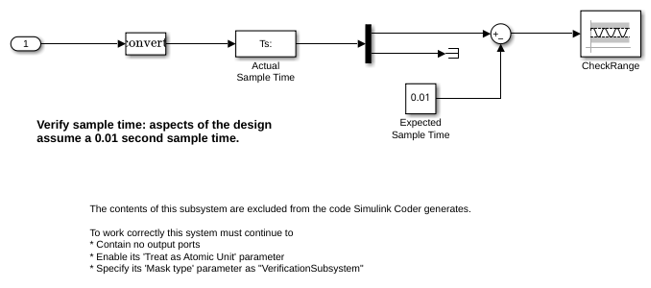

Probe Sample Time of a Signal
The sldemo_fuelsys
model shows how to check the sample time
of a signal using the Probe block.
Ports
Input
Port_1 — Input signal
scalar | vector | matrix | N-D array
Input signal to probe, specified as a scalar, vector, matrix, or N-D array. The block accepts real or complex-valued signals of any built-in data type.
You can use an array of buses as an input signal to a Probe block. For details about defining and using an array of buses, see Group Nonvirtual Buses in Arrays of Buses.
Data Types: single
| double
| half
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| string
| Boolean
| fixed point
| enumerated
| bus
Output
Port_1 (W) — Signal width
scalar
Width, or number of elements, in the input signal, specified as a
scalar. The width is also displayed on the block icon with the notation
W:
.
Dependencies
To enable this port, select Probe width.
Data Types: single
| double
| half
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| fixed point
Port_2 (Ts) — Sample time
vector
Sample time of the input signal, as a two-element vector that
specifies the period and offset of the sample time, respectively. The
sample time is also displayed on the block icon with the notation
Ts:
. See Specify Sample Time
for more information.
Dependencies
To enable this port, select Probe sample time.
Data Types: single
| double
| half
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| fixed point
Port_3 (C) — Signal complexity
scalar
Indication of input signal complexity:
When the input signal is complex, the block outputs
1
.When the input signal is real-valued, the block outputs
0
.
The indication of signal complexity is also displayed on
the block icon with the notation C:
.
Dependencies
To enable this port, select Detect complex signal.
Data Types: single
| double
| half
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| fixed point
Port_4 (D) — Signal dimensions
scalar | vector
Dimensions of the input signal, output as a scalar or vector. The
signal dimensions are also displayed on the block icon with the notation
D:
.
Dependencies
To enable this port, select Probe signal dimensions.
Data Types: single
| double
| half
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| fixed point
Parameters
Main
Probe width — Output width of the input signal
on
(default) | off
Select to output the width, or number of elements, of the probed signal.
Programmatic Use
Block Parameter:
ProbeWidth |
Type: character vector |
Values:
'off' | 'on' |
Default:
'on' |
Probe sample time — Output sample time of input signal
on
(default) | off
Select to output the sample time of the probed signal. The output is a two-element vector that specifies the period and offset of the sample time, respectively. See Specify Sample Time for more information.
Programmatic Use
Block Parameter:
ProbeSampleTime |
Type: character vector |
Values:
'off' | 'on' |
Default:
'on' |
Detect complex signal — Indicate the complexity of input signal
on
(default) | off
Select to output 1
if the probed signal is complex;
otherwise, 0
.
Programmatic Use
Block Parameter:
ProbeComplexSignal |
Type: character vector |
Values:
'off' | 'on' |
Default:
'on' |
Probe signal dimensions — Output dimensions of input signal
on
(default) | off
Select to output the dimensions of the probed signal.
Programmatic Use
Block Parameter:
ProbeSignalDimensions |
Type: character vector |
Values:
'off' | 'on' |
Default:
'on' |
Signal Attributes
Data type for width — Data type of signal width output
double
(default) | single
| int8
| uint8
| int16
| uint16
| int32
| uint32
| Same as input
Select the output data type for the signal width.
Programmatic Use
Block Parameter:
ProbeWidthDataType |
Type: character vector |
Values:
'double' | 'single' | 'int8' | 'uint8' | 'int16' |
'uint16' | 'int32' | 'uint32' | 'Same as
input' |
Default:
'double' |
Data type for sample time — Data type of sample time output
double
(default) | single
| int8
| uint8
| int16
| uint16
| int32
| uint32
| Same as input
Select the output data type for the sample time information.
Programmatic Use
Block Parameter:
ProbeSampleTimeDataType |
Type: character vector |
Values:
'double' | 'single' | 'int8' | 'uint8' | 'int16' |
'uint16' | 'int32' | 'uint32' | 'Same as
input' |
Default:
'double' |
Data type for signal complexity — Data type of complexity output
double
(default) | single
| int8
| uint8
| int16
| uint16
| int32
| uint32
| boolean
| Same as input
Select the output data type for the complexity information.
Programmatic Use
Block Parameter:
ProbeComplexityDataType |
Type: character vector |
Values:
'double' | 'single' | 'int8' | 'uint8' | 'int16' |
'uint16' | 'int32' | 'uint32' | 'Same as
input' |
Default:
'double' |
Data type for signal dimensions — Data type for signal dimension output
double
(default) | single
| int8
| uint8
| int16
| uint16
| int32
| uint32
| Same as input
Select the output data type for the signal dimension output.
Programmatic Use
Block Parameter:
ProbeDimensionsDataType |
Type: character vector |
Values:
'double' | 'single' | 'int8' | 'uint8' | 'int16' |
'uint16' | 'int32' | 'uint32' | 'Same as
input' |
Default:
'double' |
Block Characteristics
Data Types |
|
Direct Feedthrough |
|
Multidimensional Signals |
|
Variable-Size Signals |
|
Zero-Crossing Detection |
|
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
HDL Code Generation
Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.
HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic.
This block has one default HDL architecture.
ConstrainedOutputPipeline | Number of registers to place at
the outputs by moving existing delays within your design. Distributed
pipelining does not redistribute these registers. The default is
|
OutputPipeline | Number of output pipeline stages
to insert in the generated code. Distributed pipelining and constrained
output pipelining can move these registers. The default is
|
This block supports code generation for complex signals.
Fixed-Point Conversion
Design and simulate fixed-point systems using Fixed-Point Designer™.
Version History
Introduced before R2006a
