Bit Set

Set specified bit of stored integer to one

  • Bit Set block

Simulink / Logic and Bit Operations
HDL Coder / Logic and Bit Operations


The Bit Set block sets the specified bit of the stored integer to one. Scaling is ignored.

You can specify the bit to be set to one with the Index of bit parameter, where bit zero is the least significant bit.


expand all

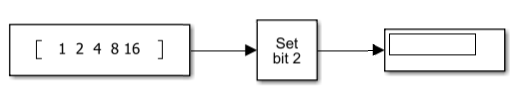

If the Bit Set block is turned on for bit 2 is set to 1.

A vector of constants 2.^[0 1 2 3 4] is represented in binary as [00001 00010 00100 01000 10000].

With bit 2 set to 1, the result is [00101 00110 00100 01100 10100], which is represented in decimal as [5 6 4 12 20].



expand all

Input signal with the specified bit of the stored integer.

Data Types: single | double | Boolean | fixed point


expand all

Output signal with the specified bit set to 1.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | fixed point | enumerated | bus


expand all

Index of bit where bit 0 is the least significant bit.

Programmatic Use

Block Parameter: iBit
Type: character vector
Values: positive integer

Block Characteristics

Data Types

Booleana | fixed point | integer

Direct Feedthrough


Multidimensional Signals


Variable-Size Signals


Zero-Crossing Detection


a Bit operations are not recommended for use with Boolean signals.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

PLC Code Generation
Generate Structured Text code using Simulink® PLC Coder™.

Fixed-Point Conversion
Design and simulate fixed-point systems using Fixed-Point Designer™.

Version History

Introduced before R2006a
