Ideal Translational Velocity Source

Ideal velocity source in mechanical translational systems

•

Libraries:
Simscape / Foundation Library / Mechanical / Mechanical Sources

Description

The Ideal Translational Velocity Source block represents an ideal source of velocity that generates velocity differential at its terminals proportional to the input physical signal. The source is ideal in a sense that it is assumed to be powerful enough to maintain specified velocity regardless of the force exerted on the system.

Connections R and C are mechanical translational conserving ports. Port S is a physical signal port, through which the control signal that drives the source is applied. The relative velocity (velocity differential) across the source is directly proportional to the signal at the control port S. The entire variety of Simulink^® signal sources can be used to generate the desired velocity variation profile.

The block positive direction is from port R to port C. This means that the velocity is measured as v = v_R – v_C, where v_R, v_C are the absolute velocities at ports R and C, respectively, and force through the source is negative if it is acts from C to R. The power generated by the source is negative if the source delivers energy to port R.

Examples

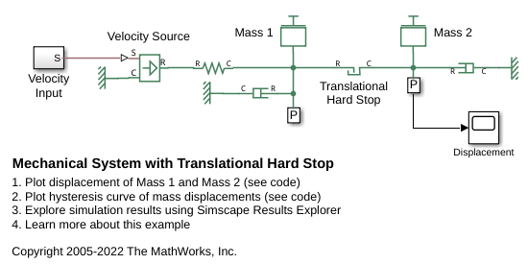

Mechanical System with Translational Hard Stop

Two masses connected by a hard stop. Mass 1 is driven by an Ideal Velocity Source. As the velocity input changes direction, Mass 2 will stay at rest until Mass 1 reaches the other end of the backlash modeled by the Translational Hard Stop. Plotting the displacement of Mass 2 against the displacement of the Mass 1 produces a typical hysteresis curve.

• Open Model

Ports

Input

S — Control signal, m/s

physical signal

Physical signal input port, through which the control signal that drives the source is applied.

Conserving

R — Rod

mechanical translational

Mechanical translational conserving port associated with the source moving part (rod).

C — Case

mechanical translational

Mechanical translational conserving port associated with the source reference point (case).

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Version History

Introduced in R2007a
