Sampled aperiodic triangle
Generate 200 ms of a symmetric triangular pulse with a sample rate of 10 kHz and a width of 40 ms.
fs = 10e3; t = -0.1:1/fs:0.1; w = 40e-3; x = tripuls(t,w);
Generate two variations of the same pulse:
One displaced 45 ms into the past and skewed 45% to the left.
tpast = -45e-3; spast = -0.45; xpast = tripuls(t-tpast,w,spast);
One displaced 60 ms into the future, half as wide, and skewed completely to the right.
tfutr = 60e-3; sfutr = 1; xfutr = tripuls(t-tfutr,w/2,sfutr);

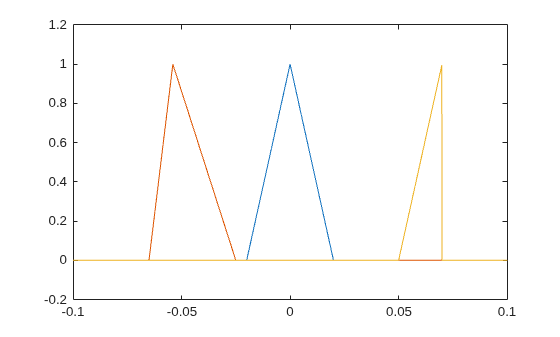

Plot the original pulse and the two copies on the same axes.
plot(t,x,t,xpast,t,xfutr) ylim([-0.2 1.2])
t— Sample times
Sample times of unit triangular pulse, specified as a vector.
w— Triangle width
1(default) | positive number
Triangle width, specified as a positive number.
s— Triangle skew
0(default) | real number
Triangle skew, specified as a real number such that –1 ≤
s ≤ 1. When
s is 0, the function generates a symmetric
y— Triangular pulse
Triangular pulse of unit amplitude, returned as a vector.
