findchangepts

Find abrupt changes in signal

Description

ipt = findchangepts(x) returns the index at which the mean of x changes most significantly.

  • If x is a vector with N elements, then findchangepts partitions x into two regions, x(1:ipt-1) and x(ipt:N), that minimize the sum of the residual (squared) error of each region from its local mean.

  • If x is an M-by-N matrix, then findchangepts partitions x into two regions, x(1:M,1:ipt-1) and x(1:M,ipt:N), returning the column index that minimizes the sum of the residual error of each region from its local M-dimensional mean.

example

ipt = findchangepts(x,Name,Value) specifies additional options using name-value arguments. Options include the number of changepoints to report and the statistic to measure instead of the mean. See Changepoint Detection for more information.

example

[ipt,residual] = findchangepts(___) also returns the residual error of the signal against the modeled changes, incorporating any of the previous specifications.

example

findchangepts(___) without output arguments plots the signal and any detected changepoints. For more information, see Statistic.

Note

Before plotting, the findchangepts function clears (clf) the current figure. To plot the signal and detected changepoints in a subplot, use a plotting function. See Audio File Segmentation.

example

Examples

collapse all

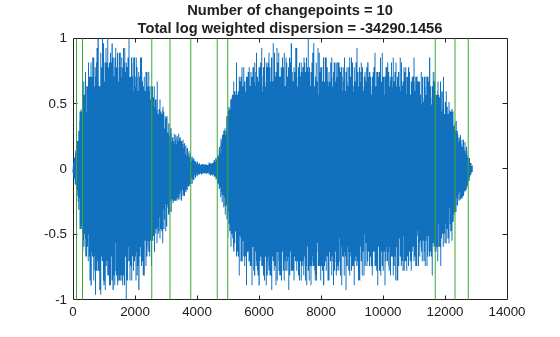

Load a data file containing a recording of a train whistle sampled at 8192 Hz. Find the 10 points at which the root-mean-square level of the signal changes most significantly.

load train

findchangepts(y,MaxNumChanges=10,Statistic="rms")

Figure contains an axes object. The axes object with title Number of changepoints = 10 Total log weighted dispersion = -34290.1456 contains 2 objects of type line.

Compute the short-time power spectral density of the signal. Divide the signal into 128-sample segments and window each segment with a Hamming window. Specify 120 samples of overlap between adjoining segments and 128 DFT points. Find the 10 points at which the mean of the power spectral density changes the most significantly.

[s,f,t,pxx] = spectrogram(y,128,120,128,Fs);

findchangepts(pow2db(pxx),MaxNumChanges=10)

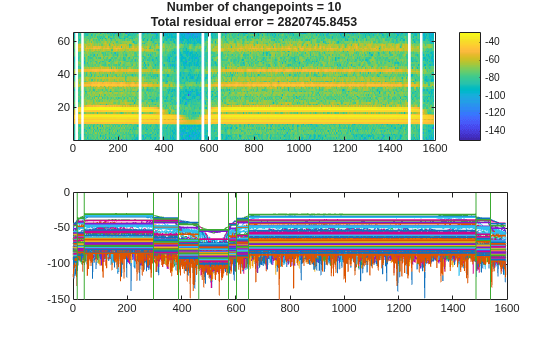

Figure contains 2 axes objects. Axes object 1 contains 131 objects of type line. Axes object 2 with title Number of changepoints = 10 Total residual error = 2820745.8453 contains 11 objects of type image, line.

Reset the random number generator for reproducible results. Generate a random signal where:

  • The mean is constant in each of seven regions and changes abruptly from region to region.

  • The variance is constant in each of five regions and changes abruptly from region to region.

rng("default")

lr = 20;

mns = [0 1 4 -5 2 0 1];
nm = length(mns);

vrs = [1 4 6 1 3];
nv = length(vrs);

v = randn(1,lr*nm*nv)/2;

f = reshape(repmat(mns,lr*nv,1),1,lr*nm*nv);
y = reshape(repmat(vrs,lr*nm,1),1,lr*nm*nv);

t = v.*y+f;

Plot the signal, highlighting the steps of its construction.

subplot(2,2,1)
plot(v)
title("Original")
xlim([0 700])

subplot(2,2,2)
plot([f;v+f]')
title("Means")
xlim([0 700])

subplot(2,2,3)
plot([y;v.*y]')
title("Variances")
xlim([0 700])

subplot(2,2,4)
plot(t)
title("Final")
xlim([0 700])

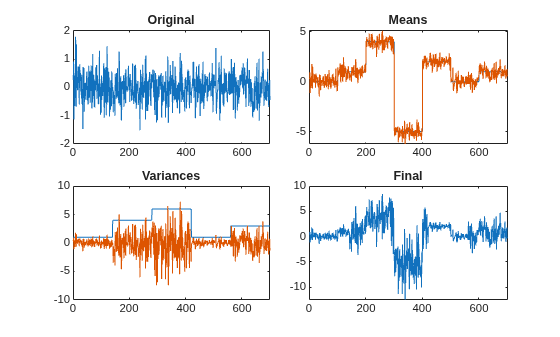

Figure contains 4 axes objects. Axes object 1 with title Original contains an object of type line. Axes object 2 with title Means contains 2 objects of type line. Axes object 3 with title Variances contains 2 objects of type line. Axes object 4 with title Final contains an object of type line.

Find the five points where the mean of the signal changes most significantly.

figure
findchangepts(t,MaxNumChanges=5)

Figure contains an axes object. The axes object with title Number of changepoints = 5 Total residual error = 1989.3814 contains 3 objects of type line.

Find the five points where the root-mean-square level of the signal changes most significantly.

findchangepts(t,MaxNumChanges=5,Statistic="rms")

Figure contains an axes object. The axes object with title Number of changepoints = 5 Total log weighted dispersion = 871.1003 contains 2 objects of type line.

Find the point where the mean and standard deviation of the signal change the most.

findchangepts(t,Statistic="std")

Figure contains an axes object. The axes object with title Number of changepoints = 1 Total log weighted dispersion = 1263.4625 contains 3 objects of type line.

Load a speech signal sampled at Fs=7418Hz. The file contains a recording of a female voice saying the word "MATLAB®."

load mtlb

Discern the vowels and consonants in the word by finding the points at which the variance of the signal changes significantly. Limit the number of changepoints to five.

numc = 5;

[q,r] = findchangepts(mtlb,Statistic="rms",MaxNumChanges=numc);

Create a signal mask for the speech signal based on the changepoint indices. See signalMask for more information about using a signal mask.

t = (0:length(mtlb)-1)/Fs;
roitable = ([[1;q] [q;length(mtlb)]]);

x = ["M" "A" "T" "L" "A" "B"]';
c = categorical(x,unique(x,"stable"));

msk = signalMask(table(t(roitable),c),SampleRate=Fs,RightShortening=1);
roimask(msk)
ans=6×2 table
           Var1            c
    ___________________    _

          0    0.017525    M
    0.01766     0.10461    A
    0.10475     0.22162    T
    0.22176     0.33675    L
    0.33688     0.46535    A
    0.46549     0.53909    B

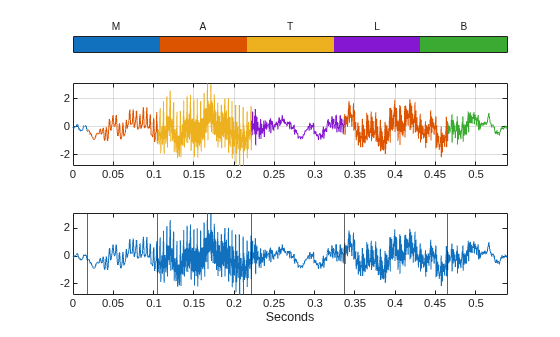

Plot the speech signal and detected changepoints in a subplot along with the regions of interest from the signal mask:

  • In the upper subplot, use the plotsigroi function to visualize the signal mask regions. Adjust the settings to make the colorbar appear at the top..

  • In the lower subplot, plot the original speech signal and add the detected changepoints as vertical lines.

subplot(2,1,1)
plotsigroi(msk,mtlb)
colorbar("off")
nc = numel(c)-1;
colormap(gca,lines(nc));
colorbar(TickLabels=categories(c),Ticks=1/2/nc:1/nc:1, ...
    TickLength=0,Location="northoutside")
xlabel("")

Figure contains an axes object. The axes object contains 6 objects of type line.

subplot(2,1,2)
plot(t,mtlb)
hold on
xline(q/Fs)
hold off
xlim([0 t(end)])
xlabel("Seconds")

Figure contains an axes object. The axes object with xlabel Seconds contains 6 objects of type line, constantline.

To play the sound with a pause after each of the segments, uncomment these lines.

% for k = 1:length(roitable)
%     intv = roitable(k,1):roitable(k,2);
%     soundsc(mtlb(intv).*hann(length(intv)),Fs)
%     pause(.5)
% end

Create a signal that consists of two sinusoids with varying amplitude and a linear trend.

vc = sin(2*pi*(0:201)/17).*sin(2*pi*(0:201)/19).* ...
    [sqrt(0:0.01:1) (1:-0.01:0).^2]+(0:201)/401;

Find the points where the signal mean changes most significantly. The 'Statistic' name-value argument is optional in this case. Specify a minimum residual error improvement of 1.

findchangepts(vc,'Statistic','mean','MinThreshold',1)

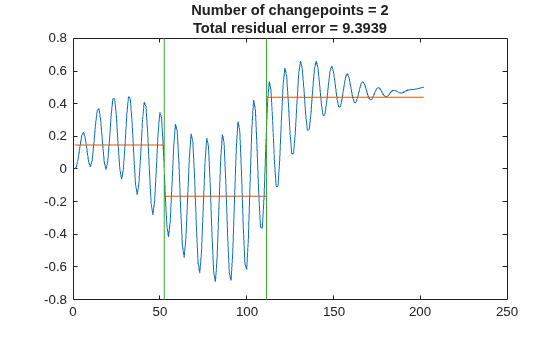

Figure contains an axes object. The axes object with title Number of changepoints = 2 Total residual error = 9.3939 contains 3 objects of type line.

Find the points where the root-mean-square level of the signal changes the most. Specify a minimum residual error improvement of 6.

findchangepts(vc,'Statistic','rms','MinThreshold',6)

Figure contains an axes object. The axes object with title Number of changepoints = 4 Total log weighted dispersion = -436.5368 contains 2 objects of type line.

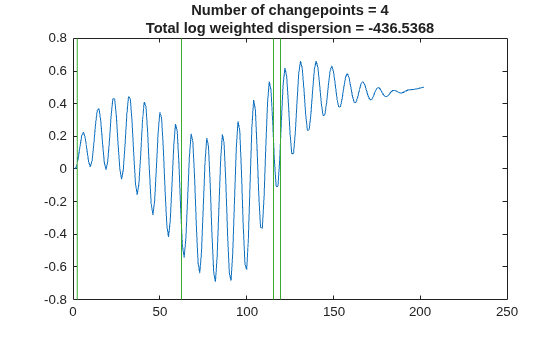

Find the points where the standard deviation of the signal changes most significantly. Specify a minimum residual error improvement of 10.

findchangepts(vc,'Statistic','std','MinThreshold',10)

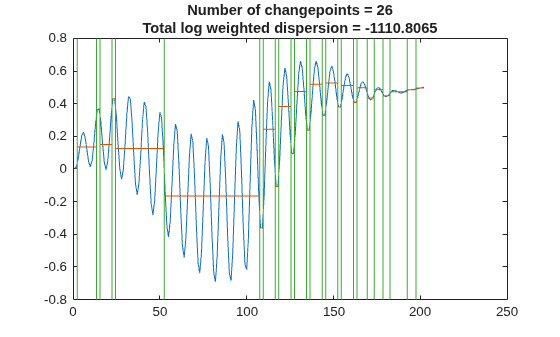

Figure contains an axes object. The axes object with title Number of changepoints = 26 Total log weighted dispersion = -1110.8065 contains 3 objects of type line.

Find the points where the mean and the slope of the signal change most abruptly. Specify a minimum residual error improvement of 0.6.

findchangepts(vc,'Statistic','linear','MinThreshold',0.6)

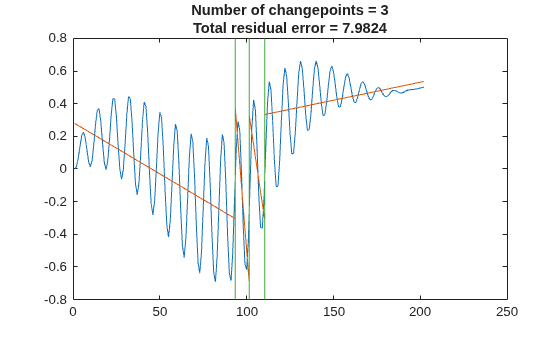

Figure contains an axes object. The axes object with title Number of changepoints = 3 Total residual error = 7.9824 contains 3 objects of type line.

Generate a two-dimensional, 1000-sample Bézier curve with 20 random control points. A Bézier curve is defined by:

C(t)=k=0m(mk)tk(1-t)m-kPk,

where Pk is the kth of m control points, t ranges from 0 to 1, and (mk) is a binomial coefficient. Plot the curve and the control points.

m = 20;
P = randn(m,2);
t = linspace(0,1,1000)';

pol = t.^(0:m-1).*(1-t).^(m-1:-1:0);
bin = gamma(m)./gamma(1:m)./gamma(m:-1:1);
crv = bin.*pol*P;

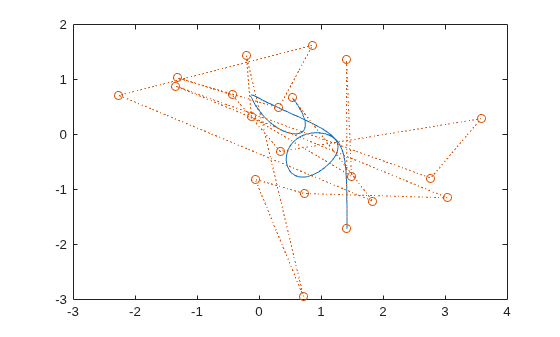

plot(crv(:,1),crv(:,2),P(:,1),P(:,2),"o:")

Figure contains an axes object. The axes object contains 2 objects of type line.

Partition the curve into three segments, such that the points in each segment are at a minimum distance from the segment mean.

findchangepts(crv',MaxNumChanges=3)

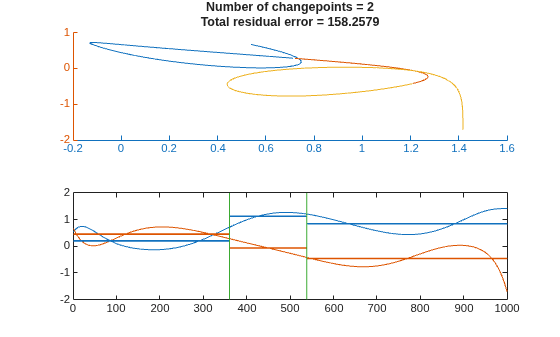

Figure contains 2 axes objects. Axes object 1 contains 5 objects of type line. Axes object 2 with title Number of changepoints = 2 Total residual error = 158.2579 contains 3 objects of type line.

Partition the curve into 20 segments that are best fit by straight lines.

findchangepts(crv',Statistic="linear",MaxNumChanges=19)

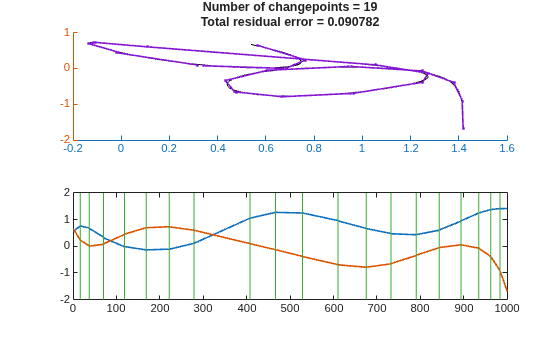

Figure contains 2 axes objects. Axes object 1 contains 5 objects of type line. Axes object 2 with title Number of changepoints = 19 Total residual error = 0.090782 contains 21 objects of type line.

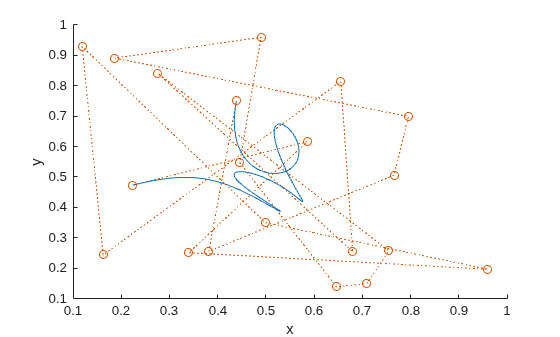

Generate and plot a three-dimensional Bézier curve with 20 random control points.

P = rand(m,3);
crv = bin.*pol*P;

plot3(crv(:,1),crv(:,2),crv(:,3),P(:,1),P(:,2),P(:,3),"o:")
xlabel("x")
ylabel("y")

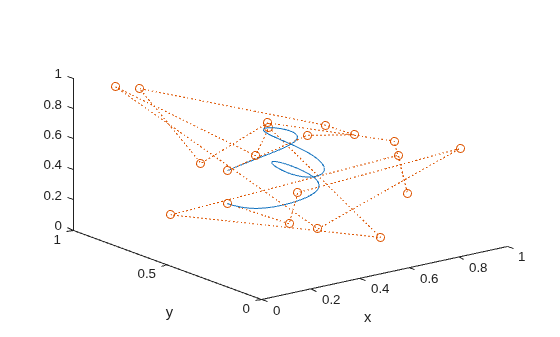

Figure contains an axes object. The axes object with xlabel x, ylabel y contains 2 objects of type line.

Visualize the curve from above.

view([0 0 1])

Figure contains an axes object. The axes object with xlabel x, ylabel y contains 2 objects of type line.

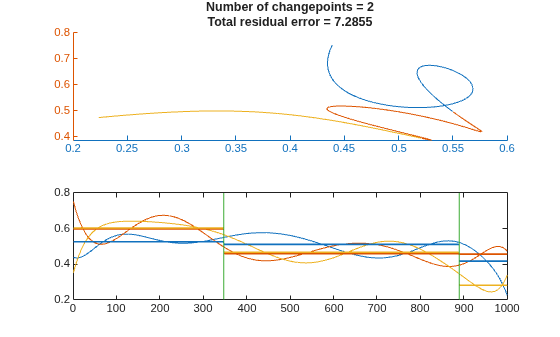

Partition the curve into three segments, such that the points in each segment are at a minimum distance from the segment mean.

findchangepts(crv',MaxNumChanges=3)

Figure contains 2 axes objects. Axes object 1 contains 7 objects of type line. Axes object 2 with title Number of changepoints = 2 Total residual error = 7.2855 contains 3 objects of type line.

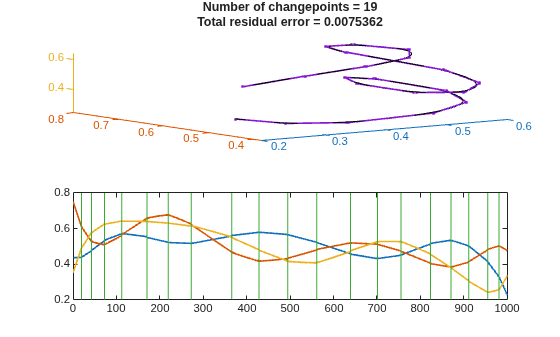

Partition the curve into 20 segments that are best fit by straight lines.

findchangepts(crv',Statistic="linear",MaxNumChanges=19)

Figure contains 2 axes objects. Axes object 1 contains 7 objects of type line. Axes object 2 with title Number of changepoints = 19 Total residual error = 0.0075362 contains 21 objects of type line.

Input Arguments

collapse all

Input signal, specified as a real-valued vector or matrix.

  • If x is a vector with N elements, then findchangepts partitions x into two regions, x(1:ipt-1) and x(ipt:N), that minimize the sum of the residual (squared) error of each region from the local value of the statistic specified in Statistic.

  • If x is an M-by-N matrix, then findchangepts partitions x into two regions, x(1:M,1:ipt-1) and x(1:M,ipt:N), returning the column index that minimizes the sum of the residual error of each region from the local M-dimensional value of the statistic specified in Statistic.

Example: reshape(randn(100,3)+[-3 0 3],1,300) is a random signal with two abrupt changes in mean.

Example: reshape(randn(100,3).*[1 20 5],1,300) is a random signal with two abrupt changes in root-mean-square level.

Data Types: single | double

Name-Value Arguments

collapse all

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: MaxNumChanges=3,Statistic="rms",MinDistance=20 finds up to three points where the changes in root-mean-square level are most significant and where the points are separated by at least 20 samples.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: 'MaxNumChanges',3,'Statistic',"rms",'MinDistance',20 finds up to three points where the changes in root-mean-square level are most significant and where the points are separated by at least 20 samples.

Maximum number of significant changes to return, specified as an integer scalar. After finding the point with the most significant change, findchangepts gradually loosens its search criterion to include more changepoints without exceeding the specified maximum. If any search setting returns more than the maximum, then the function returns nothing. If MaxNumChanges is not specified, then the function returns the point with the most significant change. You cannot specify MinThreshold and MaxNumChanges simultaneously.

Example: findchangepts([0 1 0]) returns the index of the second sample.

Example: findchangepts([0 1 0],MaxNumChanges=1) returns an empty matrix.

Example: findchangepts([0 1 0],MaxNumChanges=2) returns the indices of the second and third points.

Data Types: single | double

Type of change to detect, specified as one of these values:

  • "mean" — Detect changes in mean. If you call findchangepts with no output arguments, the function plots the signal, the changepoints, and the mean value of each segment enclosed by consecutive changepoints.

  • "rms" — Detect changes in root-mean-square level. If you call findchangepts with no output arguments, the function plots the signal and the changepoints.

  • "std" — Detect changes in standard deviation, using Gaussian log-likelihood. If you call findchangepts with no output arguments, the function plots the signal, the changepoints, and the mean value of each segment enclosed by consecutive changepoints.

  • "linear" — Detect changes in mean and slope. If you call findchangepts with no output arguments, the function plots the signal, the changepoints, and the line that best fits each portion of the signal enclosed by consecutive changepoints.

Example: findchangepts([0 1 2 1],Statistic="mean") returns the index of the second sample.

Example: findchangepts([0 1 2 1],Statistic="rms") returns the index of the third sample.

Minimum number of samples between changepoints, specified as an integer scalar. If you do not specify this number, then the default is 1 for changes in mean and 2 for other changes.

Example: findchangepts(sin(2*pi*(0:10)/5),MaxNumChanges=5,MinDistance=1) returns five indices.

Example: findchangepts(sin(2*pi*(0:10)/5),MaxNumChanges=5,MinDistance=3) returns two indices.

Example: findchangepts(sin(2*pi*(0:10)/5),MaxNumChanges=5,MinDistance=5) returns no indices.

Data Types: single | double

Minimum improvement in total residual error for each changepoint, specified as a real scalar that represents a penalty. This option acts to limit the number of returned significant changes by applying the additional penalty to each prospective changepoint. You cannot specify MinThreshold and MaxNumChanges simultaneously.

Example: findchangepts([0 1 2],MinThreshold=0) returns two indices.

Example: findchangepts([0 1 2],MinThreshold=1) returns one index.

Example: findchangepts([0 1 2],MinThreshold=2) returns no indices.

Data Types: single | double

Output Arguments

collapse all

Changepoint locations, returned as a vector of integer indices.

Residual error of the signal against the modeled changes, returned as a vector.

More About

collapse all

References

[1] Killick, Rebecca, Paul Fearnhead, and Idris A. Eckley. “Optimal detection of changepoints with a linear computational cost.” Journal of the American Statistical Association. Vol. 107, No. 500, 2012, pp. 1590–1598.

[2] Lavielle, Marc. “Using penalized contrasts for the change-point problem.” Signal Processing. Vol. 85, August 2005, pp. 1501–1510.
