## Tune and Validate Controller Parameters

The `hinfstruct`

command lets you tune
parameters in a structured control system that you have represented as a
`genss`

model with tunable elements, augmented by weighting
functions that capture your design requirements. To obtain such a tunable model:

Build a

`genss`

model by creating and connecting tunable and fixed LTI models in MATLAB^{®}, as shown in Build Tunable Model for Tuning with hinfstruct.Extract a

`genss`

model from a Simulink^{®}model using an`slTuner`

interface, as shown in Extract Tunable Control System from Simulink Model.

### Tune and Validate in Simulink

In Simulink, use `hinfstruct`

to tune the parameters in the `genss`

model you extract from your Simulink model. To validate the result, write the parameters back to the model and simulate the model to evaluate the tuned performance.

To obtain the `genss`

model, run the example Extract Tunable Control System from Simulink Model, or load the model and a preprepared `slTuner`

interface to the model and prepared `genss`

model of the closed-loop system with weighting functions.

open_system('rct_diskdrive') load hinfstructTuneValidate.mat ST0 T0 T0

Generalized continuous-time state-space model with 2 outputs, 2 inputs, 13 states, and the following blocks: C: Tunable PID controller, 1 occurrences. a: Scalar parameter, 2 occurrences. Type "ss(T0)" to see the current value and "T0.Blocks" to interact with the blocks.

Tune the tunable parameters in `T0`

. `hinfstruct`

finds parameter values that minimize the H-infinity norm of `T0`

. To avoid falling into a local minimum, use the `RandomStart`

option to restart the optimization multiple times at randomized initial parameter values.

```
opts = hinfstructOptions('RandomStart',5);
[T,gamma,info] = hinfstruct(T0,opts);
```

Final: Peak gain = 3.88, Iterations = 67 Final: Peak gain = 597, Iterations = 178 Some closed-loop poles are marginally stable (decay rate near 1e-07) Final: Peak gain = 597, Iterations = 166 Some closed-loop poles are marginally stable (decay rate near 1e-07) Final: Peak gain = 3.88, Iterations = 68 Final: Peak gain = 1.56, Iterations = 98 Final: Peak gain = 1.56, Iterations = 84

`hinfstruct`

returns `gamma`

equal to the smallest achieved H-infinity norm (peak gain) over all optimization runs. The function also returns the `genss`

model `T`

, which is a version of `T0`

with the tunable parameters set to the values that achieve `gamma`

. For instance, compare the initial value of the PI controller `C`

to the tuned value.

pid(T0.Blocks.C)

ans = 1 Ki * --- s with Ki = 0.001 Name: C Continuous-time I-only controller.

pid(T.Blocks.C)

ans = 1 Kp + Ki * --- s with Kp = 0.000846, Ki = 0.0103 Name: C Continuous-time PI controller in parallel form.

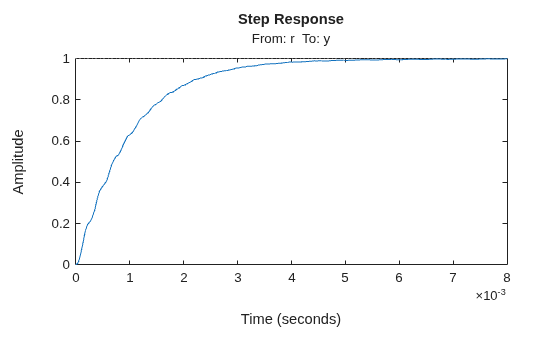

To examine the response of the linearized system with the tuned parameter values, apply the tuned values to the `slTuner`

interface. Then extract and plot the closed-loop step response.

ST = copy(ST0); setBlockValue(ST,T); Try = getIOTransfer(ST,'r','y'); step(Try)

Lastly, apply the tuned values to the Simulink model to test them against the full system.

writeBlockValue(ST0)

You can now simulate the model and examine its responses with the tuned parameter values.

### Tune and Validate in MATLAB

In MATLAB, use `hinfstruct`

to tune the parameters in the `genss`

model you build by creating and connecting tunable and fixed LTI models. To validate the result, examine the responses of the open-loop or closed-loop system with the tuned parameter values.

To obtain the tunable `genss`

model for this example, run the example Build Tunable Model for Tuning with hinfstruct, or load the prepared closed-loop model `T0`

and the elements of the control system, the plant `G`

, tunable filter `F`

, and tunable PID controller `C`

.

load hinfstructMATLABTuneValidate T0 G F C

Tune the tunable parameters in `T0`

. `hinfstruct`

finds parameter values that minimize the H-infinity norm of `T0`

. To avoid falling into a local minimum, use the `RandomStart`

option to restart the optimization multiple times at randomized initial parameter values.

```
opts = hinfstructOptions('RandomStart',5);
[T,gamma,info] = hinfstruct(T0,opts);
```

Final: Peak gain = 3.88, Iterations = 67 Final: Peak gain = 596, Iterations = 199 Some closed-loop poles are marginally stable (decay rate near 1e-07) Final: Peak gain = 597, Iterations = 183 Some closed-loop poles are marginally stable (decay rate near 1e-07) Final: Peak gain = 3.88, Iterations = 66 Final: Peak gain = 1.56, Iterations = 100 Final: Peak gain = 1.56, Iterations = 99

`hinfstruct`

returns `gamma`

equal to the smallest achieved H-infinity norm (peak gain) over all optimization runs. The function also returns the `genss`

model `T`

, which is a version of `T0`

with the tunable parameters set to the values that achieve `gamma`

. For instance, compare the initial value of the PI controller `C`

to the tuned value.

pid(T0.Blocks.C)

ans = 1 Ki * --- s with Ki = 0.001 Name: C Continuous-time I-only controller.

pid(T.Blocks.C)

ans = 1 Kp + Ki * --- s with Kp = 0.000846, Ki = 0.0103 Name: C Continuous-time PI controller in parallel form.

To validate the result, compare the unweighted open-loop response with the target open-loop response, which for `T0`

was specified as:

$\mathit{LS}=\frac{1+0.001\frac{\mathit{s}}{{\omega}_{\mathit{c}}}}{0.001+\frac{\mathit{s}}{{\omega}_{\mathit{c}}}}$

(See Build Tunable Model for Tuning with hinfstruct.)

```
wc = 1000;
s = tf('s');
LS = (1+0.001*s/wc)/(0.001+s/wc);
```

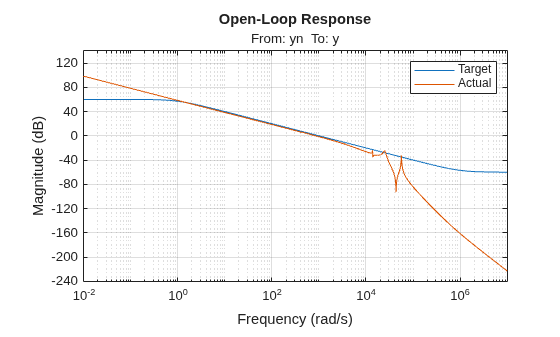

Construct the open-loop response with the tuned parameter values. Because `C`

is itself a tuned block, you can get its tuned value directly from `T`

. `F`

is a `genss`

model with tunable parameter `a`

, so you must use `getValue`

to propagate the value of the tunable parameter in `T`

to `F`

.

C = getBlockValue(T,'C'); F = getValue(F,T.Blocks); L = G*C*F; bodemag(LS,L) grid on title('Open-Loop Response') legend('Target','Actual')

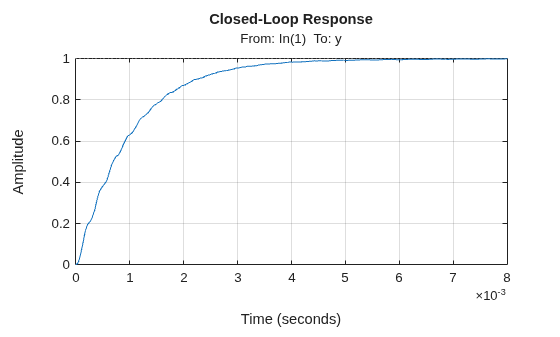

The 0dB crossover frequency and overall loop shape are as expected. Finally, plot the step response of the overall closed-loop system using the tuned parameter values.

CL = feedback(G*C,F); step(CL) grid on title('Closed-Loop Response')
