# centerOfMass

Center of mass position and Jacobian

## Description

example

com = centerOfMass(robot) computes the center of mass position of the robot model at its home configuration, relative to the base frame.

com = centerOfMass(robot,configuration) computes the center of mass position of the robot model at the specified joint configuration, relative to the base frame.

[com,comJac] = centerOfMass(robot,configuration) also returns the center of mass Jacobian, which relates the center of mass velocity to the joint velocities.

## Examples

collapse all

Load a KUKA LBR iiwa robot model from the Robotics System Toolbox™ loadrobot. This is specified as a rigidBodyTree object.

lbr =
rigidBodyTree with properties:

NumBodies: 10
Bodies: {[1x1 rigidBody]  [1x1 rigidBody]  [1x1 rigidBody]  [1x1 rigidBody]  [1x1 rigidBody]  [1x1 rigidBody]  [1x1 rigidBody]  [1x1 rigidBody]  [1x1 rigidBody]  [1x1 rigidBody]}
Base: [1x1 rigidBody]
BaseName: 'world'
Gravity: [0 0 0]
DataFormat: 'struct'

Set the data format to "row". For all dynamics calculations, the data format must be either "row" or "column".

lbr.DataFormat = "row";

Compute the center of mass position and Jacobian at the home configuration of the robot.

[comLocation,comJac] = centerOfMass(lbr);
show(lbr);
hold all

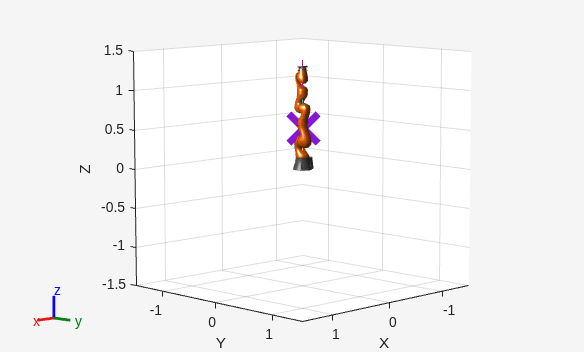

plot3(comLocation(1),comLocation(2),comLocation(3),Marker="x",MarkerSize=30,LineWidth=5);

## Input Arguments

collapse all

Robot model, specified as a rigidBodyTree object. To use the centerOfMass function, set the DataFormat property to either 'row' or 'column'.

Robot configuration, specified as a vector with positions for all nonfixed joints in the robot model. You can generate a configuration using homeConfiguration(robot), randomConfiguration(robot), or by specifying your own joint positions. To use the vector form of configuration, set the DataFormat property for the robot to either 'row' or 'column'.

## Output Arguments

collapse all

Center of mass location, returned as an [x y z] vector. The vector describes the location of the center of mass for the specified configuration relative to the body frame, in meters.

Center of mass Jacobian, returned as a 3-by-n matrix, where n is the robot velocity degrees of freedom.

## References

[1] Featherstone, Roy. Rigid Body Dynamics Algorithms. Springer US, 2008. DOI.org (Crossref), doi:10.1007/978-1-4899-7560-7.

## Version History

Introduced in R2017a
