traceLine
Description
Use the traceLine
object to create a line trace. You can use this
object to create lines of different lengths and different angles
Creation
Description
trace = traceLine
creates a line trace using default
properties.
trace = traceLine(Name=Value)
sets properties using one or more
name-value arguments. For example, traceLine('StartPoint',[1 1])
creates a line trace shape with the starting point of [1 1]
.
Properties not specified retain their default values.
Properties
Object Functions
add | Boolean unite operation on two RF PCB shapes |
and | Shape1 & Shape2 for RF PCB shapes |
area | Calculate area of RF PCB shape in square meters |
intersect | Boolean intersection operation on two RF PCB shapes |

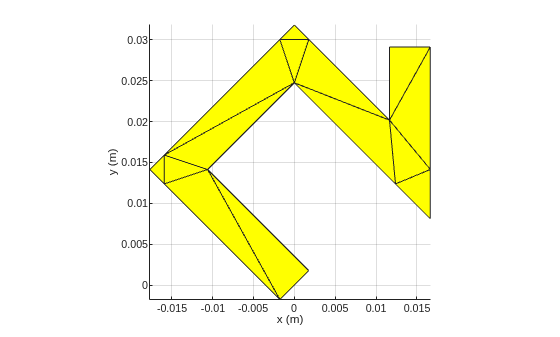

mesh | Change and view mesh properties of metal or dielectric in PCB component |
minus | Shape1 - Shape2 for RF PCB shapes |
mirrorX | Mirror shape along X-axis |
mirrorY | Mirror shape along Y-axis |
plus | Shape1 + Shape2 for RF PCB shapes |

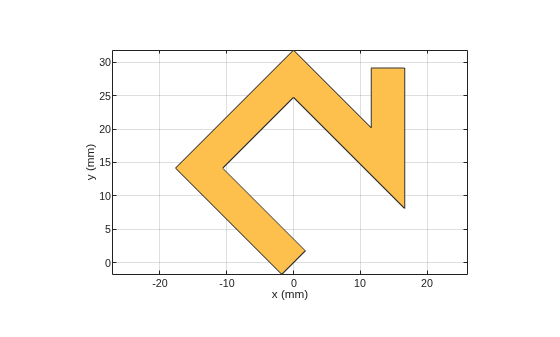

rotate | Rotate RF PCB shape about defined axis |
rotateX | Rotate RF PCB shape about x-axis |
rotateY | Rotate RF PCB shape about y-axis and angle |
rotateZ | Rotate RF PCB shape about z-axis |
subtract | Boolean subtraction operation on two RF PCB shapes |
scale | Change size of RF PCB shape by fixed amount |
show | Display PCB component structure or PCB shape |
translate | Move RF PCB shape to new location |
Examples
Version History
Introduced in R2021b
See Also
traceCross
| traceTee
| traceRectangular
| traceSpiral
| tracePoint
