radial

Create radial shape

Since R2021b

Description

Use the radial object to create a radial shape on the X-Y plane.

Creation

Syntax

radialshape = radial

radialshape = radial(Name=Value)

Description

radialshape = radial creates a radial shape on the X-Y plane.

radialshape = radial(Name=Value) sets Properties using one or more name-value arguments. For example, radial(ReferencePoint=[1 1]) creates a radial shape with the reference point at [1 1]. Properties not specified retain their default values.

Properties

Name — Name of radial shape

'myradial' (default) | character vector | string scalar

Name of the radial shape, specified as a character vector or string scalar.

Example: radialshape = radial(Name='radialShape')

Data Types: char | string

ReferencePoint — Reference point of radial shape

[0 0] (default) | two-element vector

Reference point of radial shape, specified as a two-element vector of nonnegative elements in Cartesian coordinates. Use the reference point to modify the shape relative to its initial position.

Example: radialshape = radial(ReferencePoint=[1 1])

Data Types: double

OuterRadius — Outer radius of radial

0.0016 (default) | positive scalar

Outer radius of the radial shape, specified as a positive scalar in meters.

Example: radialshape = radial(OuterRadius=0.0024)

Data Types: double

InnerRadius — Inner radius of radial

0 (default) | positive scalar

Inner radius of the radial shape, specified as a positive scalar in meters. This value truncates the radial from the tip.

Example: radialshape = radial(InnerRadius=0.4)

Data Types: double

Angle — Angel of radial

90 (default) | positive scalar

Angel of the radial shape, specified as a positive scalar in degrees. The value of the angle must be greater than 0 degrees and less than 180 degrees.

Example: radialshape = radial(Angle=50)

Data Types: double

Object Functions

add	Boolean unite operation on two RF PCB shapes
and	Shape1 & Shape2 for RF PCB shapes
area	Calculate area of RF PCB shape in square meters
intersect	Boolean intersection operation on two RF PCB shapes
mesh	Change and view mesh properties of metal or dielectric in PCB component
minus	Shape1 - Shape2 for RF PCB shapes
mirrorX	Mirror shape along X-axis
mirrorY	Mirror shape along Y-axis
plus	Shape1 + Shape2 for RF PCB shapes
rotate	Rotate RF PCB shape about defined axis
rotateX	Rotate RF PCB shape about x-axis
rotateY	Rotate RF PCB shape about y-axis and angle
rotateZ	Rotate RF PCB shape about z-axis
subtract	Boolean subtraction operation on two RF PCB shapes
scale	Change size of RF PCB shape by fixed amount
show	Display PCB component structure or PCB shape
translate	Move RF PCB shape to new location

Examples

Create Default Radial Shape

Create a radial shape with default properties.

radialshape = radial

radialshape =
  radial with properties:

              Name: 'myradial'
    ReferencePoint: [0 0]
       OuterRadius: 0.0016
       InnerRadius: 0
             Angle: 90

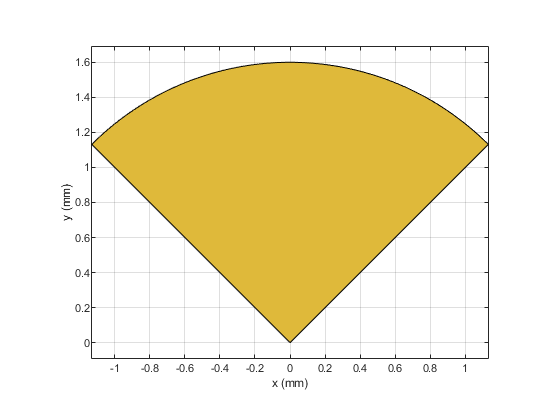

View the shape.

show(radialshape)

Version History

Introduced in R2021b
