Use Metal Catalog to Design Coplanar Waveguide

Open the metal catalog.

mc = MetalCatalog;
open(mc)

List the properties of the metal material Aluminium.

s = find(mc,'Aluminium')

s = struct with fields:
            Name: 'Aluminium'
    Conductivity: 37700000
       Thickness: 30
           Units: 'mil'
        Comments: ''

Use the above metal in a coplanar waveguide.

m = metal('Aluminium');
waveguide = coplanarWaveguide('Conductor',m)

waveguide =
  coplanarWaveguide with properties:

              Length: 0.0231
               Width: 0.0039
             Spacing: 2.0000e-04
          ViaSpacing: [0.0011 0.0070]
         ViaDiameter: 5.0000e-04
              Height: 0.0016
    GroundPlaneWidth: 0.0300
           Substrate: [1×1 dielectric]
           Conductor: [1×1 metal]
          IsShielded: 0

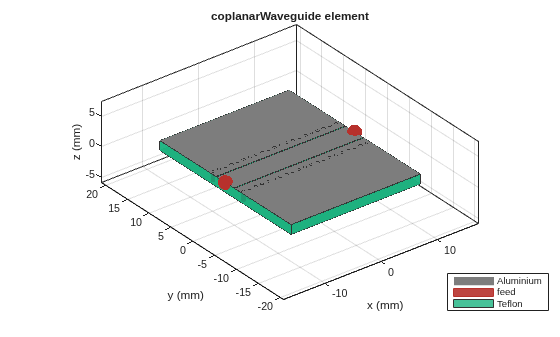

View the waveguide using show function.

figure;
show(waveguide)
