Synthetic Aperture Radar System Simulation and Image formation

This example demonstrates how to model a Synthetic Aperture RADAR (SAR) system using Stepped Frequency Modulated (SFM) waveform and generate a SAR image in Simulink®. In this example a SAR platform is defined along with the waveform it transmits. The receiver is modeled to handle the matched filtering and azimuth processing of different sub pulses of the SFM waveform. A similar example in MATLAB using Linear Frequency Modulated (LFM) waveform can be found in Stripmap Synthetic Aperture Radar (SAR) Image Formation.

Introduction

The model shows a SAR system setup to simulate IQ returns and perform image formation from the IQ data. The aircraft/airborne platform in this example exploits SFM waveform and its corresponding processing. The SFM waveform is an alternative technique to obtain larger bandwidth and it has some advantages over conventional LFM waveform.

As the SFM constructs a wide-band chirp from a burst of narrow-band chirps it provides improved noise figure and receiver sensitivity because of the narrow instantaneous bandwidth.

helperslexSARSystemSim('openModel');

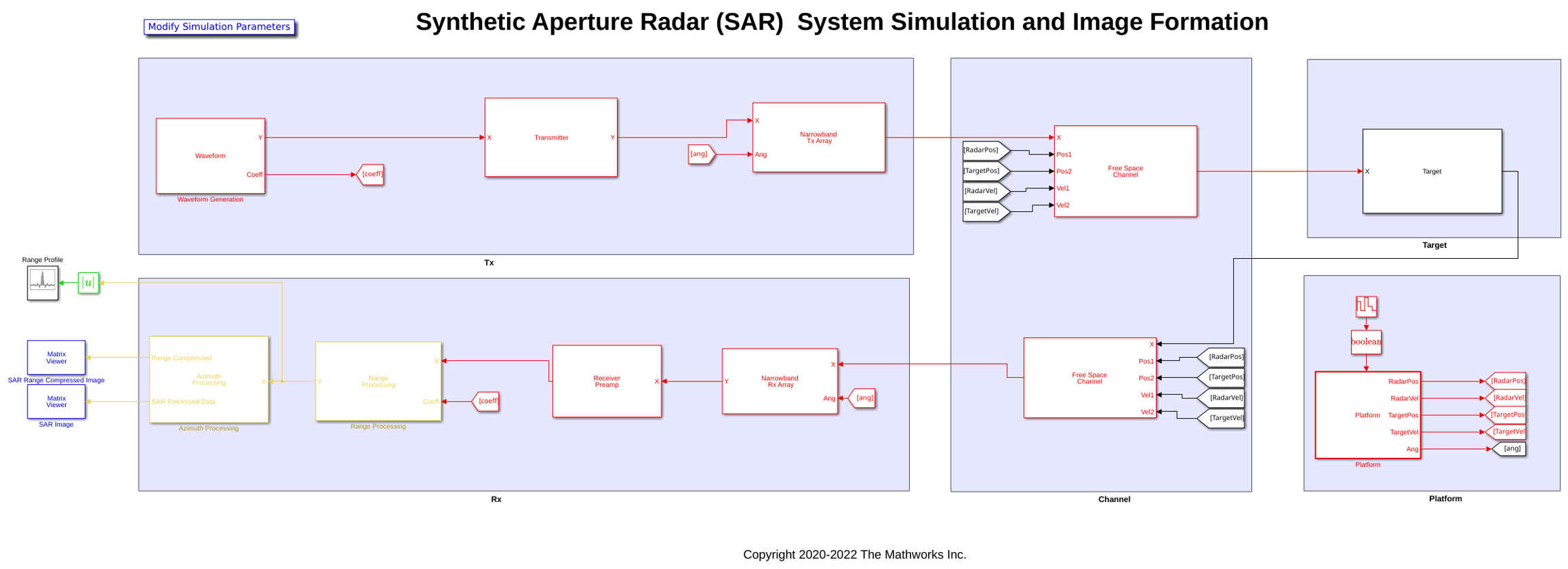

The model has various sections Tx, Channel, Target, Platform and Rx. Tx section simulates the generation and transmission of SFM waveform. The channel section models the two-way propagation of the signal to and from the target. The target section models three point targets located at 800 m, 1000 m and 1300 m each with a mean RCS of 1. The platform subsystem models the flight path. The Rx section simulates the reception, range, and azimuth processing of SAR raw data.

Waveform Generation

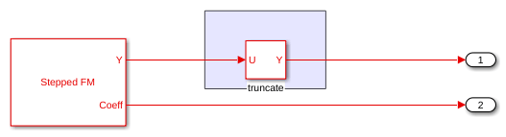

The Waveform Generation subsystem includes a SFM waveform generating module. The transmitted SFM burst consists of 4 sub pulses with PRF of 1000 Hz such that it satisfies the criteria for maximum unambiguous range and maximum Doppler. The coefficients for matched filtering the IQ data at the receiver are also generated in this module.

helperslexSARSystemSim('showWaveform');

Platform

The platform subsystem simulates the motion of flight on which the synthetic aperture radar is mounted. It is a triggered subsystem that mimics a stop and go assumption as the platform moves from a position A to position B transmitting and receiving the burst of pulses at each position. Hence, the platform remains at a position until all the sub pulses in a burst are transmitted and received. The sub pulses here implies the 4 steps of the SFM waveform transmitted and received at each position along the flight path. The platform is at a height of 500 m moving in the cross-range direction at a velocity of 100 m/s.

helperslexSARSystemSim('showPlatform');

Range Processing

This is the first step in obtaining the SAR image. The Range Processing subsystem depicts how we perform the matched filtering for the waveform burst. The most convenient method for matched filtering the SFM waveform burst is the pulse by pulse processing. In pulse by pulse processing, first each individual sub pulse in the burst is matched filter using the matched coefficients generated from the waveform generation subsystem. Secondly, after matched filtering of the sub pulses they are integrated together to complete the matched filtering of the entire burst. The pulse compressed sub pulses are coherently integrated to obtain the range compressed data.

helperslexSARSystemSim('showRangeProcessing');

Azimuth Processing

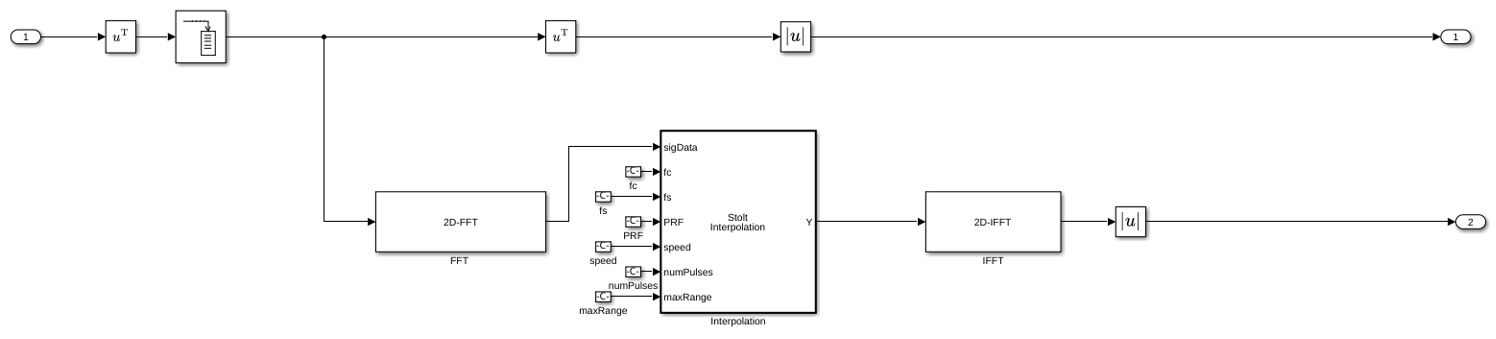

Azimuth Processing subsystem models the final step in obtaining the SAR image. This subsystem implements Range Migration Algorithm (RMA) to focus the SAR image. The range compressed data is buffered to obtain data from every range bin before performing azimuth processing which focuses the image in cross-range/azimuth direction.

helperslexSARSystemSim('showAzimuthProcessing');

Exploring the Example

Several dialog parameters of the model are calculated by the helper function helperslexSARSystemParam. To open the function from the model, click on Modify Simulation Parameters block. This function is executed once the model is loaded. It exports to the workspace a structure whose fields are referenced by the dialogs. To modify any parameters, either change the values in the structure at the command prompt or edit the helper function and rerun it to update the parameter structure.

Results and Display

The results below show the processed data at different stages of the simulation.

helperslexSARSystemSim('runModel');

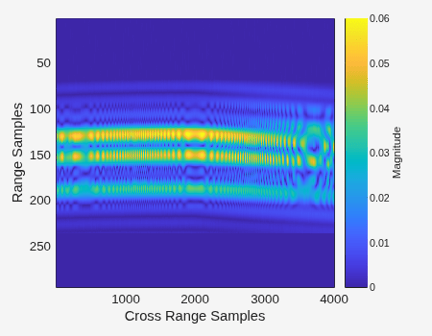

The below image shows data after range processing of the burst waveform.

helperslexSARSystemSim('showRangeCompressed');

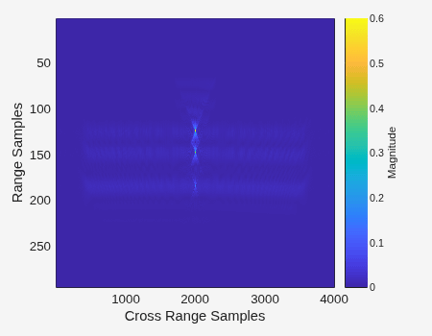

The below image shows SAR image after range and azimuth focusing.

helperslexSARSystemSim('showSARImage');

Summary

This example exhibits how to use a SFM waveform for a SAR imaging system mounted on an aircraft to image targets on the ground. The example models the entire system in Simulink® and shows how to use the SFM waveform and its corresponding processing.

helperslexSARSystemSim('closeModel');
