Rectangular Pulse Waveforms

Definition of Rectangular Pulse Waveform

Define the following function of time:


Assume that a radar transmits a signal of the form:


where ωc denotes the carrier frequency. Note that a(t) represents an on-off rectangular amplitude modulation of the carrier frequency. After demodulation, the complex envelope of x(t) is the real-valued rectangular pulse a(t) of duration τ seconds.

How to Create Rectangular Pulse Waveforms

To create a rectangular pulse waveform, use phased.RectangularWaveform. You can customize certain characteristics of the waveform, including:

  • Sampling rate

  • Pulse duration

  • Pulse repetition frequency

  • Number of samples or pulses in each vector that represents the waveform

Rectangular Waveform Plot

This example shows how to create a rectangular pulse waveform variable using phased.RectangularWaveform . The example also plots the pulse and finds the bandwidth of the pulse.

Construct a rectangular pulse waveform with a duration of 50 μs, a sample rate of 1 MHz, and a pulse repetition frequency (PRF) of 10 kHz.

waveform = phased.RectangularWaveform('SampleRate',1e6,...

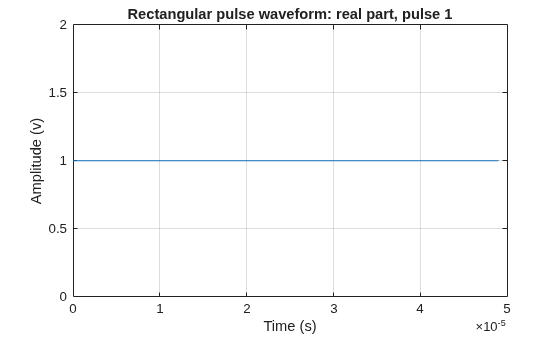

Plot a single rectangular pulse by calling plot directly on the rectangular waveform variable. plot is a method of phased.RectangularWaveform. This method produces an annotated graph of your pulse waveform.


Find the bandwidth of the rectangular pulse.

bw = bandwidth(waveform)
bw = 20000

The bandwidth, bw, of a rectangular pulse in hertz is approximately the reciprocal of the pulse duration 1/sRect.PulseWidth.

Pulses of Rectangular Waveform

This example shows how to create rectangular pulse waveform signals having different durations. The example plots two pulses of each waveform.

Create a rectangular pulse with a duration of 100 μs and a PRF of 1 kHz. Set the number of pulses in the output equal to two.

waveform = phased.RectangularWaveform('PulseWidth',100e-6,...

Make a copy of your rectangular pulse and change the pulse width in your original waveform to 10 μs.

waveform2 = clone(waveform);
waveform.PulseWidth = 10e-6;

sRect and sRect1 now specify different rectangular pulses because you changed the pulse width of waveform.

Execute the System objects to return two pulses of your rectangular pulse waveforms.

y = waveform();
y2 = waveform2();

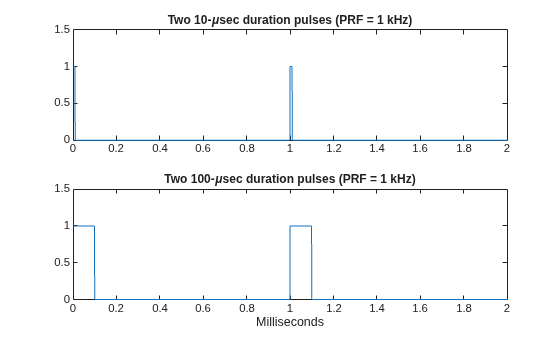

Plot the real part of the waveforms.

totaldur = 2*1/waveform.PRF;
totnumsamp = totaldur*waveform.SampleRate;
t = unigrid(0,1/waveform.SampleRate,totaldur,'[)');
axis([0 totaldur*1e3 0 1.5])
title('Two 10-\musec duration pulses (PRF = 1 kHz)')
axis([0 totaldur*1e3 0 1.5])
title('Two 100-\musec duration pulses (PRF = 1 kHz)')
