Time Series Forecasting Using Deep Learning

This example shows how to forecast time series data using a long short-term memory (LSTM) network.

To forecast the values of future time steps of a sequence, you can train a sequence-to-sequence regression LSTM network, where the responses are the training sequences with values shifted by one time step. That is, at each time step of the input sequence, the LSTM network learns to predict the value of the next time step.

To forecast the values of multiple time steps in the future, use the predictAndUpdateState function to predict time steps one at a time and update the network state at each prediction.

This example uses the data set chickenpox_dataset. The example trains an LSTM network to forecast the number of chickenpox cases given the number of cases in previous months.

Load Sequence Data

Load the example data. chickenpox_dataset contains a single time series, with time steps corresponding to months and values corresponding to the number of cases. The output is a cell array, where each element is a single time step. Reshape the data to be a row vector.

data = chickenpox_dataset;
data = [data{:}];

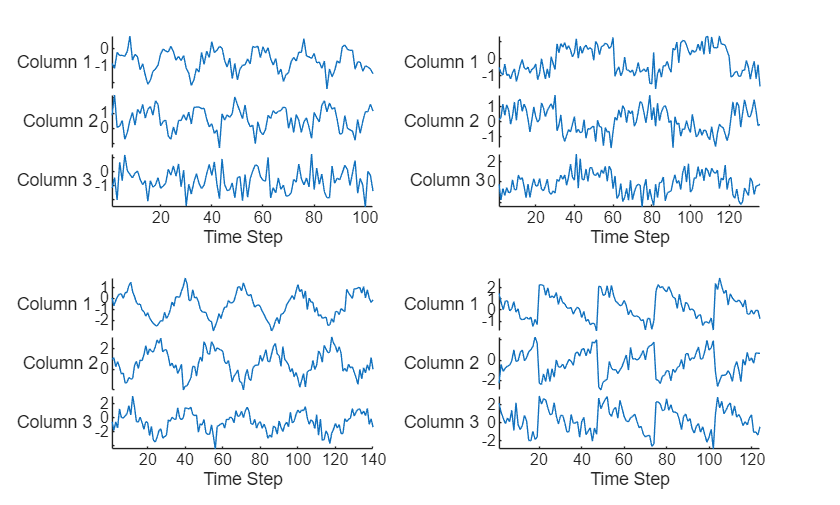

figure
plot(data)
xlabel("Month")
ylabel("Cases")
title("Monthy Cases of Chickenpox")

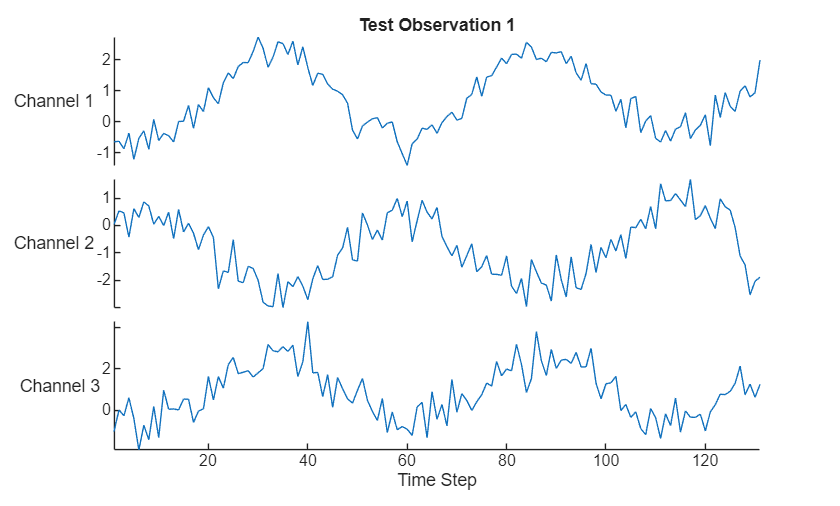

Partition the training and test data. Train on the first 90% of the sequence and test on the last 10%.

To forecast the values of future time steps of a sequence, specify the responses to be the training sequences with values shifted by one time step. That is, at each time step of the input sequence, the LSTM network learns to predict the value of the next time step.

numTimeStepsTrain = floor(0.9*numel(data));
XTrain = data(1:numTimeStepsTrain);
YTrain = data(2:numTimeStepsTrain+1);
XTest = data(numTimeStepsTrain+1:end-1);
YTest = data(numTimeStepsTrain+2:end);

Standardize Data

For a better fit and to prevent the training from diverging, standardize the training data to have zero mean and unit variance. Standardize the test data using the same parameters as the training data.

mu = mean(XTrain);
sig = std(XTrain);

XTrain = (XTrain - mu) / sig;
YTrain = (YTrain - mu) / sig;

XTest = (XTest - mu) / sig;

Define LSTM Network Architecture

Create an LSTM regression network. Specify the LSTM layer to have 200 hidden units.

inputSize = 1;
numResponses = 1;
numHiddenUnits = 200;

layers = [ ...
    sequenceInputLayer(inputSize)
    lstmLayer(numHiddenUnits)
    fullyConnectedLayer(numResponses)
    regressionLayer];

Specify the training options. Set the solver to 'adam' and train for 250 epochs. To prevent the gradients from exploding, set the gradient threshold to 1. Specify the initial learn rate 0.005, and drop the learn rate after 125 epochs by multiplying by a factor of 0.2.

opts = trainingOptions('adam', ...
    'MaxEpochs',250, ...
    'GradientThreshold',1, ...
    'InitialLearnRate',0.005, ...
    'LearnRateSchedule','piecewise', ...
    'LearnRateDropPeriod',125, ...
    'LearnRateDropFactor',0.2, ...
    'Verbose',0, ...
    'Plots','training-progress');

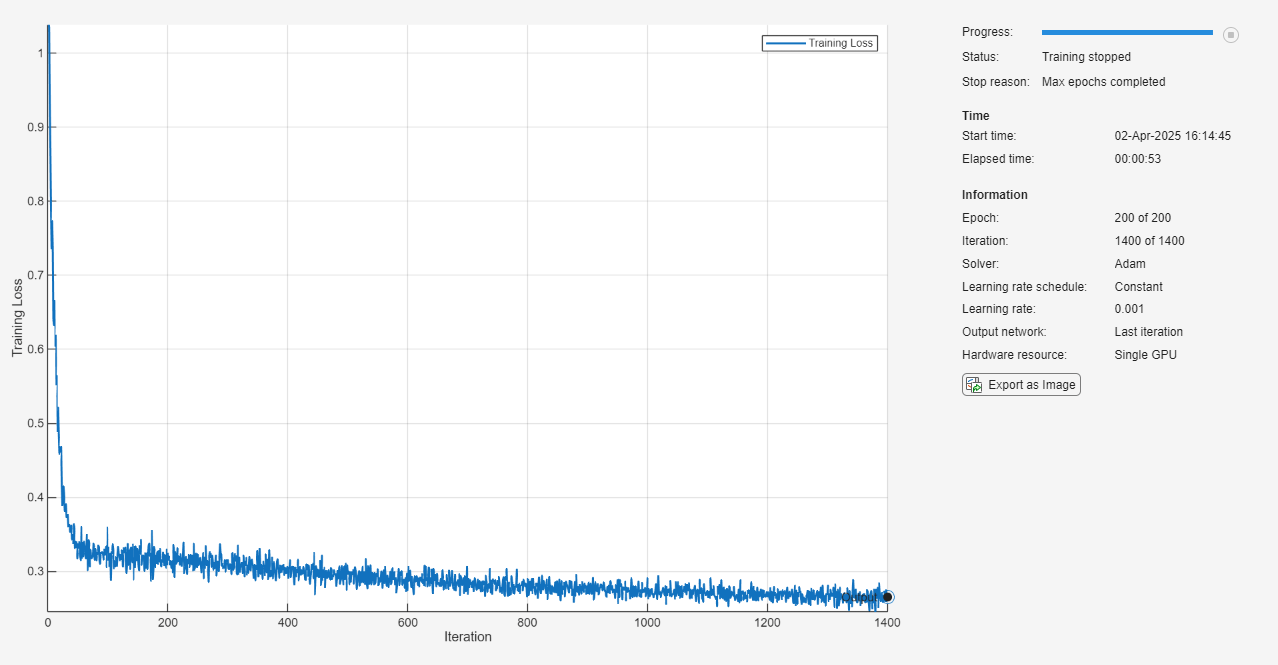

Train LSTM Network

Train the LSTM network with the specified training options by using trainNetwork.

net = trainNetwork(XTrain,YTrain,layers,opts);

Forecast Future Time Steps

To forecast the values of multiple time steps in the future, use the predictAndUpdateState function to predict time steps one at a time and update the network state at each prediction. For each prediction, use the previous prediction as input to the function.

To initialize the network state, first predict on the training data XTrain. Next, make the first prediction using the last time step of the training response YTrain(end). Loop over the remaining predictions and input the previous prediction to predictAndUpdateState.

net = predictAndUpdateState(net,XTrain);
[net,YPred] = predictAndUpdateState(net,YTrain(end));

numTimeStepsTest = numel(XTest);
for i = 2:numTimeStepsTest
    [net,YPred(1,i)] = predictAndUpdateState(net,YPred(i-1));
end

Unstandardize the predictions using mu and sig calculated earlier.

YPred = sig*YPred + mu;

The training progress plot reports the root-mean-square error (RMSE) calculated from the standardized data. Calculate the RMSE from the unstandardized predictions.

rmse = sqrt(mean((YPred-YTest).^2))
rmse = single
    211.1609

Plot the training time series with the forecasted values.

figure
plot(data(1:numTimeStepsTrain))
hold on
idx = numTimeStepsTrain:(numTimeStepsTrain+numTimeStepsTest);
plot(idx,[data(numTimeStepsTrain) YPred],'.-')
hold off
xlabel("Month")
ylabel("Cases")
title("Forecast")
legend(["Observed" "Forecast"])

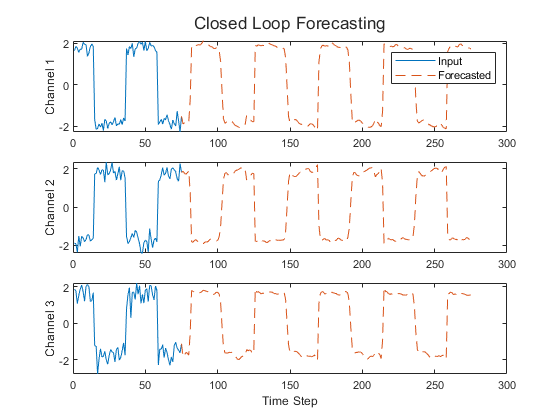

Compare the forecasted values with the test data.

figure
subplot(2,1,1)
plot(YTest)
hold on
plot(YPred,'.-')
hold off
legend(["Observed" "Forecast"])
ylabel("Cases")
title("Forecast")

subplot(2,1,2)
stem(YPred - YTest)
xlabel("Month")
ylabel("Error")
title("RMSE = " + rmse)

Update Network State with Observed Values

If you have access to the actual values of time steps between predictions, then you can update the network state with the observed values instead of the predicted values.

First, initialize the network state. To make predictions on a new sequence, reset the network state using resetState. Resetting the network state prevents previous predictions from affecting the predictions on the new data. Reset the network state, and then initialize the network state by predicting on the training data.

net = resetState(net);
net = predictAndUpdateState(net,XTrain);

Predict on each time step. For each prediction, predict the next time step using the observed value of the previous time step.

YPred = [];
numTimeStepsTest = numel(XTest);
for i = 1:numTimeStepsTest
    [net,YPred(1,i)] = predictAndUpdateState(net,XTest(i));
end

Unstandardize the predictions using mu and sig calculated earlier.

YPred = sig*YPred + mu;

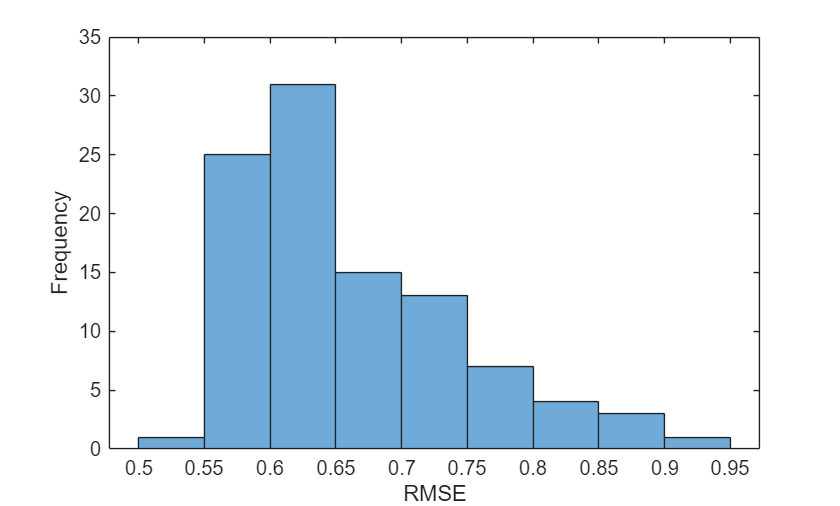

Calculate the root-mean-square error (RMSE).

rmse = sqrt(mean((YPred-YTest).^2))
rmse = 116.8079

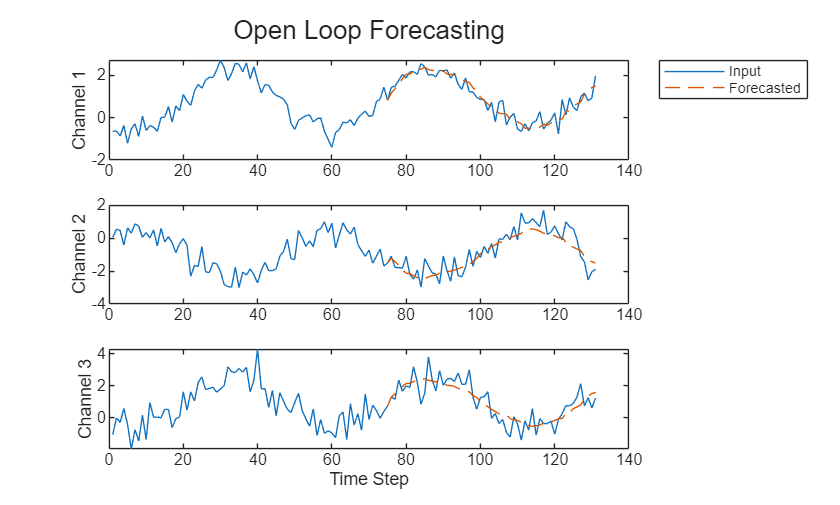

Compare the forecasted values with the test data.

figure
subplot(2,1,1)
plot(YTest)
hold on
plot(YPred,'.-')
hold off
legend(["Observed" "Predicted"])
ylabel("Cases")
title("Forecast with Updates")

subplot(2,1,2)
stem(YPred - YTest)
xlabel("Month")
ylabel("Error")
title("RMSE = " + rmse)

Here, the predictions are more accurate when updating the network state with the observed values instead of the predicted values.
