MPC Control of an Inverted Pendulum on a Cart

This example uses a model predictive controller (MPC) to control an inverted pendulum on a cart.

Pendulum/Cart Assembly

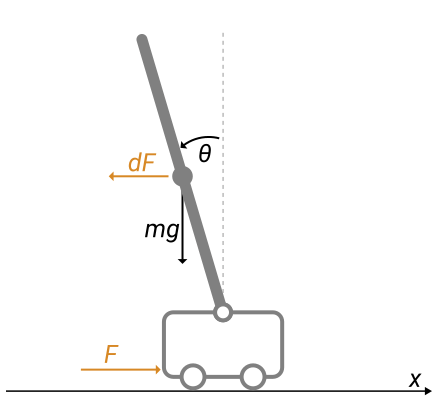

The plant for this example is the following cart/pendulum assembly, where x is the cart position and theta is the pendulum angle.

This system is controlled by exerting a variable force F on the cart. The controller needs to keep the pendulum upright while moving the cart to a new position or when the pendulum is nudged forward by an impulse disturbance dF applied at the upper end of the inverted pendulum.

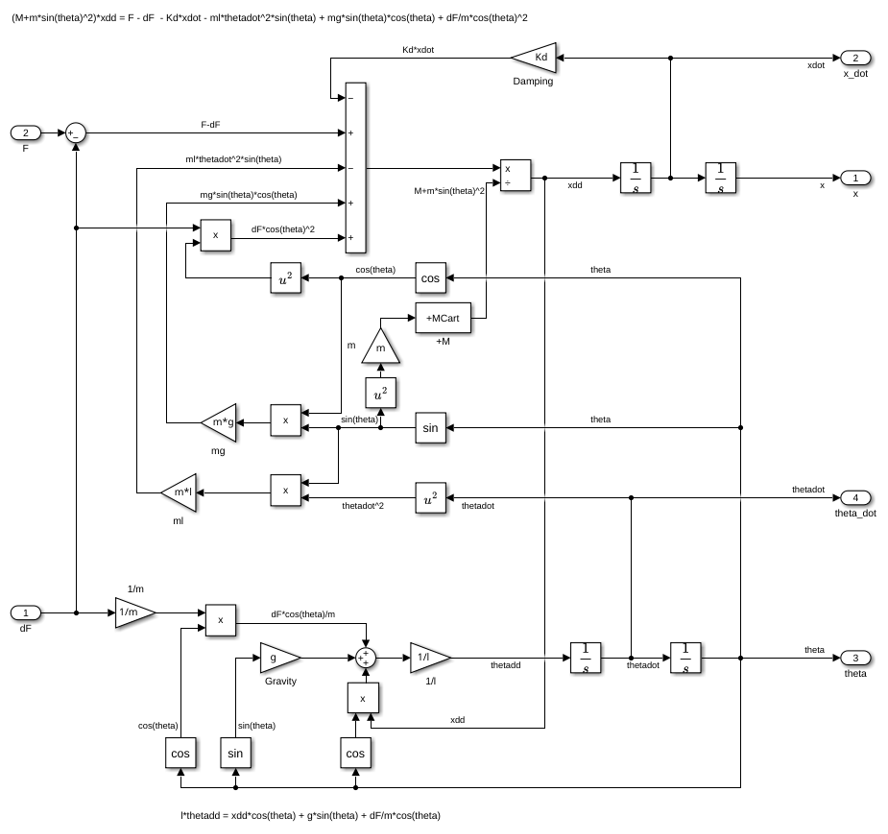

This plant is modeled in Simulink® with commonly used blocks.

mdlPlant = 'mpc_pendcartPlant';
load_system(mdlPlant)
open_system([mdlPlant '/Pendulum and Cart System'],'force')

Control Objectives

Assume the following initial conditions for the cart/pendulum assembly:

• The cart is stationary at x = 0.

• The inverted pendulum is stationary at the upright position theta = 0.

The control objectives are:

• Cart can be moved to a new position between -10 and 10 with a step setpoint change.

• When tracking such a setpoint change, the rise time should be less than 4 seconds (for performance) and the overshoot should be less than 5 percent (for robustness).

• When an impulse disturbance of magnitude of 2 is applied to the pendulum, the cart should return to its original position with a maximum displacement of 1. The pendulum should also return to the upright position with a peak angle displacement of 15 degrees (0.26 radian).

The upright position is an unstable equilibrium for the inverted pendulum, which makes the control task more challenging.

Control Structure

For this example, use a single MPC controller with:

• One manipulated variable: Variable force F.

• Two measured outputs: Cart position x and pendulum angle theta.

• One unmeasured disturbance: Impulse disturbance dF.

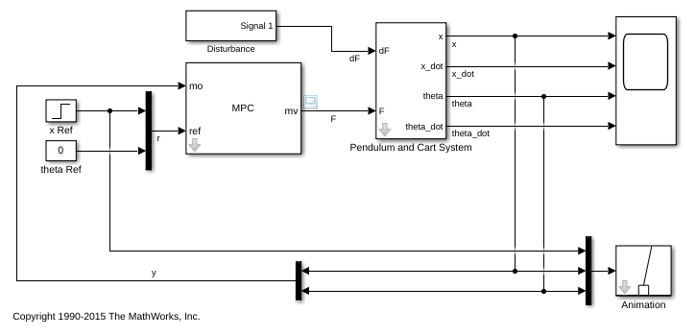

mdlMPC = 'mpc_pendcartImplicitMPC';
open_system(mdlMPC)

Although cart velocity x_dot and pendulum angular velocity theta_dot are available from the plant model, to make the design case more realistic, they are excluded as MPC measurements.

While the cart position setpoint varies (step input), the pendulum angle setpoint is constant (0 = upright position).

Linear Plant Model

Since the MPC controller requires a linear time-invariant (LTI) plant model for prediction, linearize the Simulink plant model at the initial operating point.

Specify linearization input and output points.

io(1) = linio([mdlPlant '/dF'],1,'openinput');
io(2) = linio([mdlPlant '/F'],1,'openinput');
io(3) = linio([mdlPlant '/Pendulum and Cart System'],1,'openoutput');
io(4) = linio([mdlPlant '/Pendulum and Cart System'],3,'openoutput');

Create operating point specifications for the plant initial conditions.

opspec = operspec(mdlPlant);

The first state is cart position x, which has a known initial state of 0.

opspec.States(1).Known = true;
opspec.States(1).x = 0;

The third state is pendulum angle theta, which has a known initial state of 0.

opspec.States(3).Known = true;
opspec.States(3).x = 0;

Compute operating point using these specifications.

options = findopOptions('DisplayReport',false);
op = findop(mdlPlant,opspec,options);

Obtain the linear plant model at the specified operating point.

plant = linearize(mdlPlant,op,io);
plant.InputName = {'dF';'F'};
plant.OutputName = {'x';'theta'};

Examine the poles of the linearized plant.

damp(plant)


   Pole        Damping       Frequency      Time Constant
                           (rad/seconds)      (seconds)

  0.00e+00    -1.00e+00       0.00e+00              Inf
 -3.21e+00     1.00e+00       3.21e+00         3.11e-01
  5.13e+00    -1.00e+00       5.13e+00        -1.95e-01
 -1.19e+01     1.00e+00       1.19e+01         8.40e-02

Examine the zeros (if any) of the linearized plant.

tzero(plant)

ans =

  0x1 empty double column vector

The plant has an integrator, an unstable pole, and no zeros.

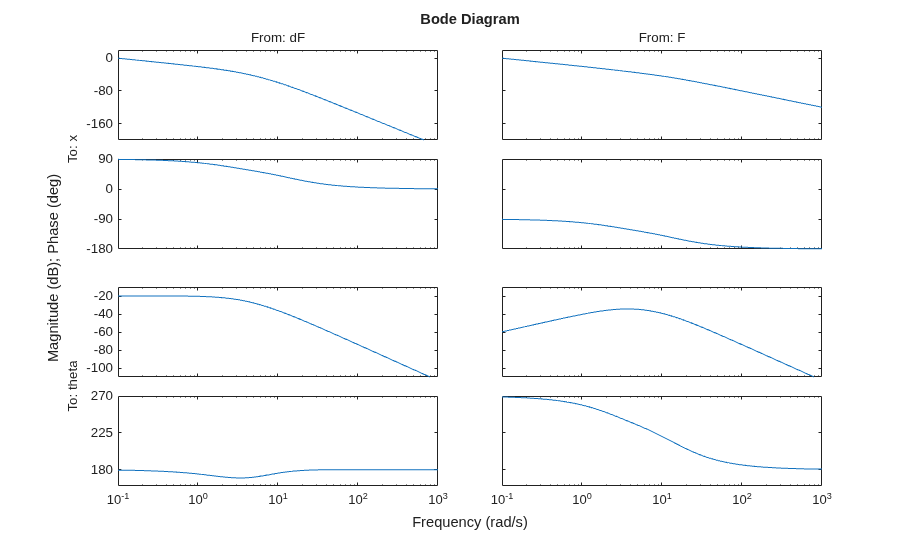

Display a Bode plot diagram

bode(plant)

The plant has an integrator and an unstable pole.

bdclose(mdlPlant)

MPC Design

The plant has two inputs, dF and F, and two outputs, x and theta. In this example, dF is specified as an unmeasured disturbance used by the MPC controller for better disturbance rejection. Set the plant signal types.

plant = setmpcsignals(plant,'ud',1,'mv',2);

To control an unstable plant, the controller sample time cannot be too large (poor disturbance rejection) or too small (excessive computational load). Similarly, the prediction horizon cannot be too long (the plant unstable mode would dominate) or too short (constraint violations would be unforeseen). Use the following parameters for this example:

Ts = 0.01;
PredictionHorizon = 50;
ControlHorizon = 5;
mpcobj = mpc(plant,Ts,PredictionHorizon,ControlHorizon);

-->"Weights.ManipulatedVariables" is empty. Assuming default 0.00000.
-->"Weights.ManipulatedVariablesRate" is empty. Assuming default 0.10000.
-->"Weights.OutputVariables" is empty. Assuming default 1.00000.
   for output(s) y1 and zero weight for output(s) y2

There is a limitation on how much force can be applied to the cart, which is specified as hard constraints on manipulated variable F.

mpcobj.MV.Min = -200;
mpcobj.MV.Max = 200;

It is good practice to scale plant inputs and outputs before designing weights. In this case, since the range of the manipulated variable is greater than the range of the plant outputs by two orders of magnitude, scale the MV input by 100.

mpcobj.MV.ScaleFactor = 100;

To improve controller robustness, increase the weight on the MV rate of change from 0.1 to 1.

mpcobj.Weights.MVRate = 1;

To achieve balanced performance, adjust the weights on the plant outputs. The first weight is associated with cart position x and the second weight is associated with angle theta.

mpcobj.Weights.OV = [1.2 1];

To achieve a more aggressive disturbance rejection, increase the state estimator gain by multiplying the default disturbance model gains by a factor of 10.

Update the input disturbance model.

disturbance_model = getindist(mpcobj);
setindist(mpcobj,'model',disturbance_model*10);

-->Converting model to discrete time.
-->The "Model.Disturbance" property is empty:
   Assuming unmeasured input disturbance #1 is integrated white noise.
   Assuming no disturbance added to measured output #1.
-->Assuming output disturbance added to measured output #2 is integrated white noise.
-->"Model.Noise" is empty. Assuming white noise on each measured output.

Update the output disturbance model.

disturbance_model = getoutdist(mpcobj);
setoutdist(mpcobj,'model',disturbance_model*10);

-->Converting model to discrete time.
   Assuming no disturbance added to measured output #1.
-->Assuming output disturbance added to measured output #2 is integrated white noise.
-->"Model.Noise" is empty. Assuming white noise on each measured output.

Calculate the steady state output sensitivity of the closed loop

cloffset(mpcobj)

-->Converting model to discrete time.
-->"Model.Noise" is empty. Assuming white noise on each measured output.

ans =

   -0.0000   12.5735
    0.0000    1.0000

The fact that the first column is close to zero shows that a constant disturbance applied to the cart position (first output) is fully recovered by the closed loop. On the other hand, the second column shows that a constant disturbance applied to theta passes unmitigated through the closed loop and greatly affects the cart position (12.57). In other words, while the closed loop is able to compensate for a position disturbance (or equivalently track a position reference) it is not able to compensate for a constant disturbance in the measured angle (or equivalently track a constant reference angle).

Closed-Loop Simulation

Validate the MPC design with a closed-loop simulation in Simulink.

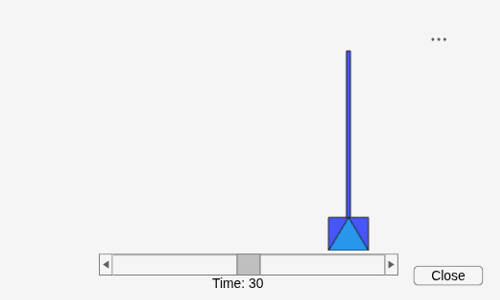

open_system([mdlMPC '/Scope'])
sim(mdlMPC)

In the nonlinear simulation, all the control objectives are successfully achieved.

Discussion

It is important to point out that the designed MPC controller has its limitations. For example, if you increase the step setpoint change to 15, the pendulum fails to recover its upright position during the transition.

To reach the longer distance within the same rise time, the controller applies more force to the cart at the beginning. As a result, the pendulum is displaced from its upright position by a larger angle such as 60 degrees. At such angles, the plant dynamics differ significantly from the LTI predictive model obtained at theta = 0. As a result, errors in the prediction of plant behavior exceed what the built-in MPC robustness can handle, and the controller fails to perform properly.

A simple workaround to avoid the pendulum falling is to restrict pendulum displacement by adding soft output constraints to theta and reducing the ECR weight on constraint softening.

mpcobj.OV(2).Min = -pi/2;
mpcobj.OV(2).Max = pi/2;
mpcobj.Weights.ECR = 100;

However, with these new controller settings, it is no longer possible to reach the longer distance within the required rise time. In other words, controller performance is sacrificed to avoid violation of soft output constraints.

To reach longer distances within the same rise time, the controller needs more accurate models at different angle to improve prediction. Another example Gain-Scheduled MPC Control of Inverted Pendulum on Cart shows how to use gain scheduling MPC to achieve the longer distances.
