Adding markers to a line plot can be a useful way to distinguish multiple lines or to highlight particular data points. Add markers in one of these ways:
Include a marker symbol in the line-specification input argument, such as
Marker property as a name-value pair, such
For a list of marker options, see Supported Marker Symbols.

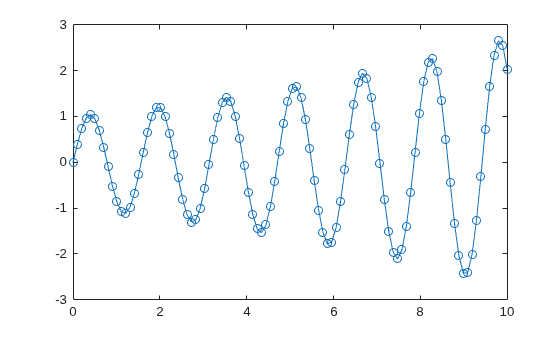

Create a line plot. Display a marker at each data point by including the line-specification input argument when calling the
plot function. For example, use
'-o' for a solid line with circle markers.
x = linspace(0,10,100); y = exp(x/10).*sin(4*x); plot(x,y,'-o')

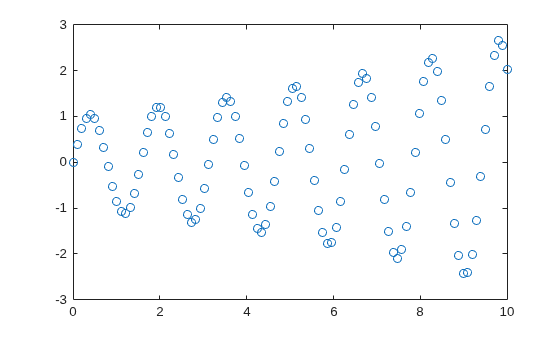

If you specify a marker symbol and do not specify a line style, then
plot displays only the markers with no line connecting them.
Alternatively, you can add markers to a line by setting the
Marker property as a name-value pair. For example,
plot(x,y,'Marker','o') plots a line with circle markers.

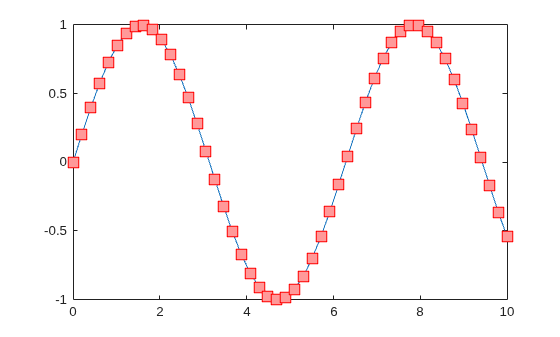

Create a line plot with markers. Customize the markers by setting these properties using name-value pair arguments with the
MarkerSize - Marker size, which is specified as a positive value.
MarkerEdgeColor - Marker outline color, which is specified as a color name or an RGB triplet.
MarkerFaceColor - Marker interior color, which is specified as a color name or an RGB triplet.
Specify the colors using either a character vector of a color name, such as
'red', or an RGB triplet, such as
[0.4 0.6 0.7]. An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1].
x = linspace(0,10,50); y = sin(x); plot(x,y,'-s','MarkerSize',10,... 'MarkerEdgeColor','red',... 'MarkerFaceColor',[1 .6 .6])

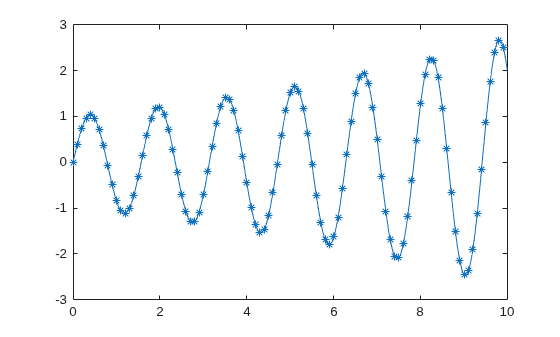

Create a line plot with 1,000 data points, add asterisks markers, and control the marker positions using the
MarkerIndices property. Set the property to the indices of the data points where you want to display markers. Display a marker every tenth data point, starting with the first data point.
x = linspace(0,10,1000); y = exp(x/10).*sin(4*x); plot(x,y,'-*','MarkerIndices',1:10:length(y))

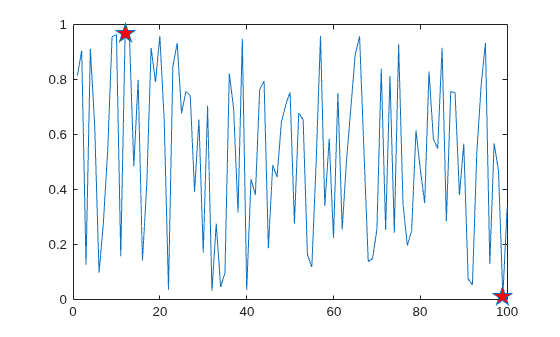

Create a vector of random data and find the index of the minimum and maximum values. Then, create a line plot of the data. Display red markers at the minimum and maximum data values by setting the
MarkerIndices property to a vector of the index values.
x = 1:100; y = rand(100,1); idxmin = find(y == max(y)); idxmax = find(y == min(y)); plot(x,y,'-p','MarkerIndices',[idxmin idxmax],... 'MarkerFaceColor','red',... 'MarkerSize',15)
Modify the marker locations, then revert back to the default locations.

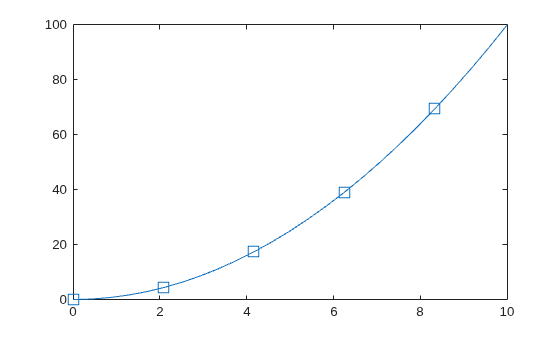

Create a line plot and display large, square markers every five data points. Assign the chart line object to the variable
p so that you can access its properties after it is created.
x = linspace(0,10,25); y = x.^2; p = plot(x,y,'-s'); p.MarkerSize = 10; p.MarkerIndices = 1:5:length(y);

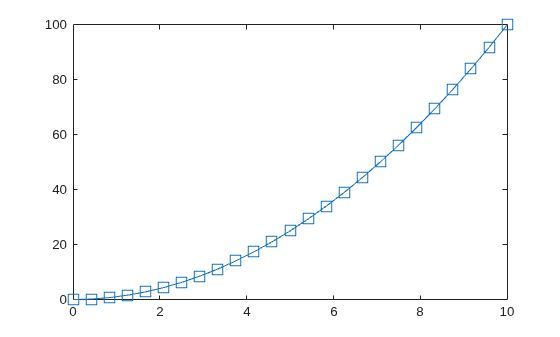

MarkerIndices property to the default value, which is a vector of all index values from 1 to the number of data points.
p.MarkerIndices = 1:length(y);
|Five-pointed star (pentagram)|
|Six-pointed star (hexagram)|
The line-specification input argument does not support marker options that are
more than one character. Use the one character alternative or set the
Marker property instead.
