Change Color Scheme Using a Colormap

MATLAB® uses a default color scheme when it displays visualizations such as surface plots. You can change the color scheme by specifying a colormap. Colormaps are three-column arrays containing RGB triplets in which each row defines a distinct color.

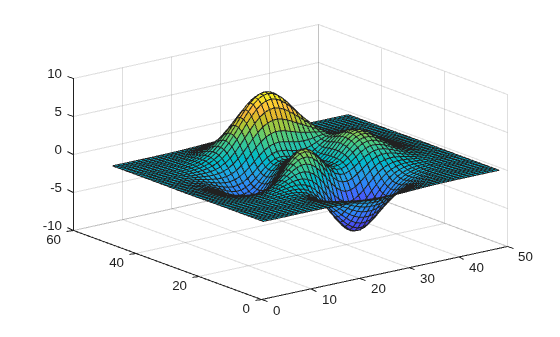

For example, here is a surface plot with the default color scheme.

f = figure;
surf(peaks);

Figure contains an axes. The axes contains an object of type surface.

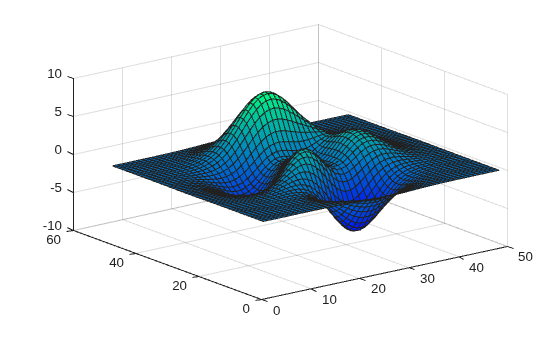

The following command changes the colormap of the current figure to winter, one of several predefined colormaps (see Colormaps for a full list).

colormap winter;

Figure contains an axes. The axes contains an object of type surface.

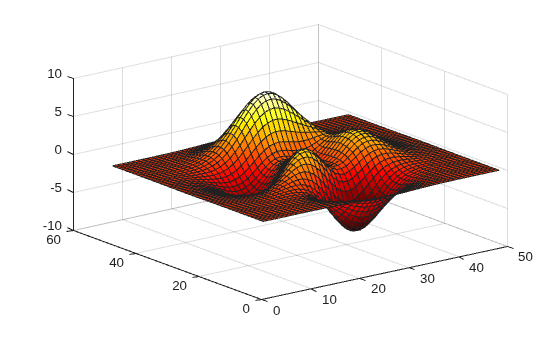

If you have multiple figures open, pass the Figure object as the first argument to the colormap function.

colormap(f,hot);

Figure contains an axes. The axes contains an object of type surface.

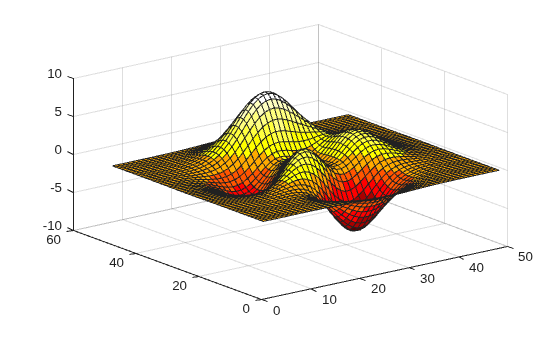

Each predefined colormap provides a palette of 256 colors by default. However, you can specify any number of colors by passing a whole number to the predefined colormap function. For example, here is the hot colormap with ten entries.

c = hot(10);
colormap(c);

Figure contains an axes. The axes contains an object of type surface.

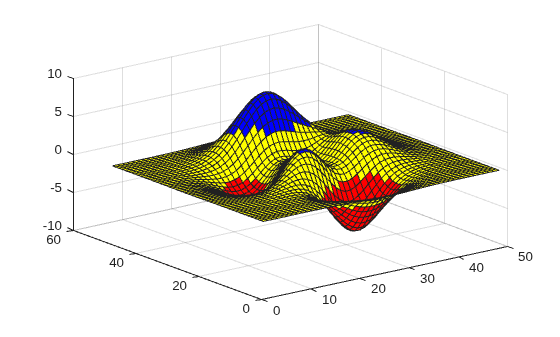

You can also create your own colormap as an m-by-3 array. Each row in the array contains the red, green, and blue intensities of a different color. The intensities are in the range [0,1]. Here is a simple colormap that contains three entries.

mycolors = [1 0 0; 1 1 0; 0 0 1];
colormap(mycolors);

Figure contains an axes. The axes contains an object of type surface.

If you are working with multiple axes, you can assign a different colormap to each axes by passing the axes object to the colormap function.

tiledlayout(1,2)
ax1 = nexttile;
surf(peaks);
shading interp;
colormap(ax1,parula(10));

ax2 = nexttile;
surf(peaks);
shading interp;
colormap(ax2,cool(10));

Figure contains 2 axes. Axes 1 contains an object of type surface. Axes 2 contains an object of type surface.
