ingeoquad

True for points inside or on lat-lon quadrangle

collapse all in page

Syntax

tf = ingeoquad(lat, lon, latlim, lonlim)

Description

tf = ingeoquad(lat, lon, latlim, lonlim) returns an array tf that has the same size as lat and lon. tf(k) is true if and only if the point lat(k), lon(k) falls within or on the edge of the geographic quadrangle defined by latlim and lonlim. latlim is a vector of the form [southern-limit northern-limit], and lonlim is a vector of the form [western-limit eastern-limit]. All angles are in units of degrees.

Examples

collapse all

Open Live Script

Load elevation data and a geographic cells reference object for the Korean peninsula. Display the data on a world map. Apply a colormap appropriate for elevation data.

load korea5c
worldmap([20 50],[90 150])
geoshow(korea5c,korea5cR,DisplayType="texturemap")
demcmap(korea5c)

Outline the quadrangle that contains the elevation data.

latlim = korea5cR.LatitudeLimits;
lonlim = korea5cR.LongitudeLimits;
[outlineLat,outlineLon] = outlinegeoquad(latlim,lonlim,90,5);
geoshow(outlineLat,outlineLon,DisplayType="line",Color="k")

Create and display a track that crosses the elevation data.

[lat,lon] = track2(23,110,48,149,[1 0],"degrees",20);
geoshow(lat,lon,DisplayType="line")

Identify and mark points on the track that fall within the quadrangle that outlines the elevation data.

tf = ingeoquad(lat,lon,latlim,lonlim);
geoshow(lat(tf),lon(tf),DisplayType="point");

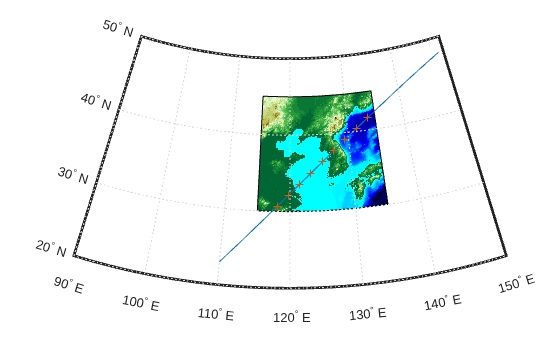

Figure contains an axes object. The hidden axes object contains 18 objects of type patch, surface, line, text. One or more of the lines displays its values using only markers

Version History

Introduced in R2008a
