clma

Clear current axesm-based map

Syntax

clma

clma all

clma purge

Description

clma deletes all displayed map objects from the current axesm-based map, but leaves the frame if it is displayed.

clma all deletes all displayed map objects, including the frame, but it leaves the map structure intact, thereby retaining the axesm-based map.

clma purge removes the map definition from the current axes, but leaves all objects projected on the axes intact.

Examples

Delete axesm-Based Map Without Frame

Read and display land areas, major lakes and rivers, cities, and populated places on a world map.

ax = worldmap("World");
setm(ax,"Origin",[0 180 0])

land = readgeotable("landareas.shp");
geoshow(ax,land,"FaceColor",[0.5 0.7 0.5])

lakes = readgeotable("worldlakes.shp");
geoshow(lakes,"FaceColor","blue")

rivers = readgeotable("worldrivers.shp");
geoshow(rivers,"Color","blue")

cities = readgeotable("worldcities.shp");
geoshow(cities,"Marker",".","Color","red")

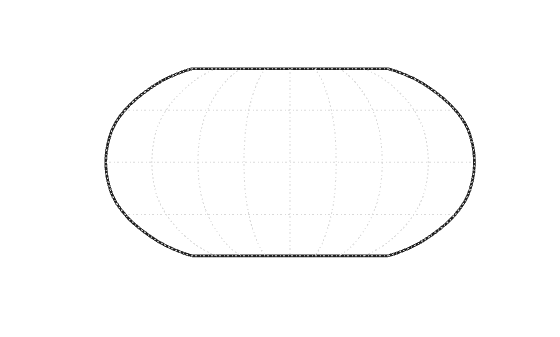

Delete all displayed map objects from the current axesm-based map, but retain the frame.

clma

Delete axesm-Based Map Definition Keeping Objects Intact

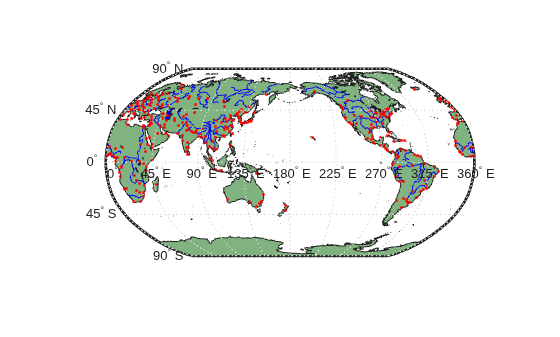

Read and display land areas, major lakes and rivers, cities, and populated places on a world map.

ax = worldmap("World");
setm(ax,"Origin",[0 180 0])

land = readgeotable("landareas.shp");
geoshow(ax,land,"FaceColor",[0.5 0.7 0.5])

lakes = readgeotable("worldlakes.shp");
geoshow(lakes,"FaceColor","blue")

rivers = readgeotable("worldrivers.shp");
geoshow(rivers,"Color","blue")

cities = readgeotable("worldcities.shp");
geoshow(cities,"Marker",".","Color","red")

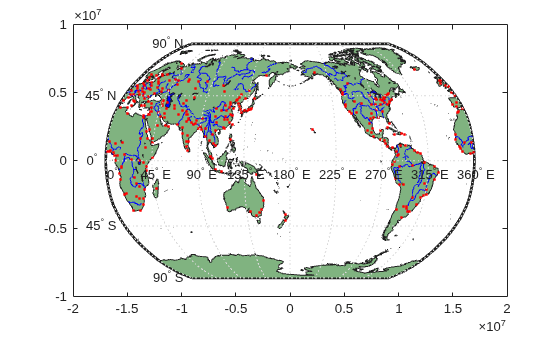

Delete the map definition from the current axes, but leave all objects projected on the axes intact.

clma purge

Version History

Introduced before R2006a
