imboxfilt

2-D box filtering of images

Syntax

B = imboxfilt(A)

B = imboxfilt(A,filterSize)

B = imboxfilt(___,Name=Value)

Description

B = imboxfilt(A) filters image A with a 2-D, 3-by-3 box filter. A box filter is also called a mean filter.

B = imboxfilt(A,filterSize) filters image A with a 2-D box filter with size specified by filterSize.

B = imboxfilt(___,Name=Value) uses name-value pair arguments to control aspects of the filtering.

Examples

Compute Mean Filter over Specified Neighborhood

Read image into the workspace.

A = imread("cameraman.tif");

Perform the mean filtering using an 11-by-11 filter.

localMean = imboxfilt(A,11);

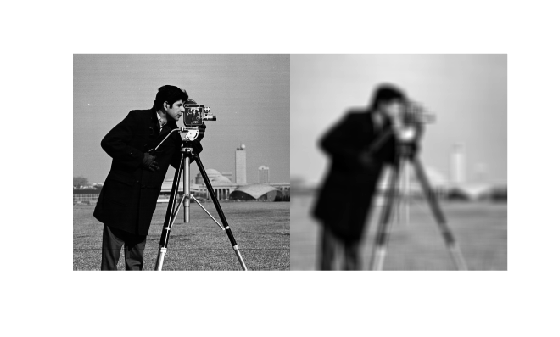

Display the original image and the filtered image, side-by-side.

imshowpair(A,localMean,"montage")

Compute Local Area Sums over Specified Neighborhood

Read image into the workspace.

A = imread('cameraman.tif');

Change the data type of the image to double to avoid integer overflow.

A = double(A);

Filter image, calculating local area sums, using a 15-by-15 box filter. To calculate local area sums, rather than the mean, set the NormalizationFactor parameter to 1.

localSums = imboxfilt(A, 15, 'NormalizationFactor',1);

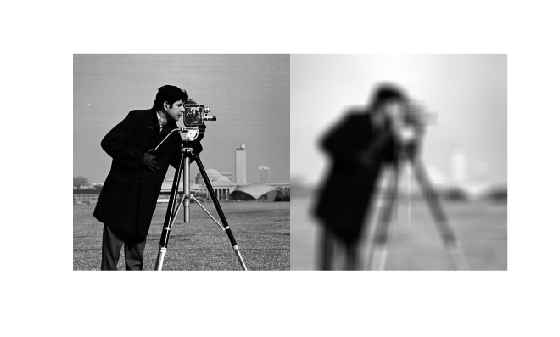

Display the original image and the filtered image, side-by-side.

imshowpair(A,localSums,'montage')

Input Arguments

A — Image to be filtered

numeric array

Image to be filtered, specified as a numeric array of any dimension. If the input image has more than two dimensions (ndims(I)>2), such as for an RGB image, then imboxfilt performs box filtering of all 2-D planes along the higher dimensions.

If A contains Infs or NaNs, then the behavior of imboxfilt is undefined. This can happen when integral image based filtering is used. To restrict the propagation of Infs and NaNs in the output, consider using imfilter instead.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32

filterSize — Size of box filter

3 (default) | positive, odd integer | 2-element vector of positive, odd integers

Size of box filter, specified as a positive odd integer or 2-element vector of positive, odd integers. If filterSize is scalar, then the box filter is square.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: B = imboxfilt(A,5,Padding="circular") specifies the padding pattern is "circular".

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: B = imboxfilt(A,5,"Padding","circular");

Padding — Padding pattern

"replicate" (default) | "circular" | "symmetric" | numeric scalar

Padding pattern, specified as one of the following values or a numeric scalar. If you specify a scalar value, input image pixels outside the bounds of the image are implicitly assumed to have the scalar value.

Value	Description
"circular"	Input image values outside the bounds of the image are computed by implicitly assuming the input image is periodic.
"replicate"	Input image values outside the bounds of the image are assumed equal to the nearest image border value.
"symmetric"	Input image values outside the bounds of the image are computed by mirror-reflecting the array across the array border.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | char | string

NormalizationFactor — Normalization factor applied to box filter

numeric scalar

Normalization factor applied to box filter, specified as a numeric scalar.

The default value of NormalizationFactor depends on filterSize. When filterSize is a scalar, then the default value is 1/filterSize.^2. When filterSize is a 2-element vector, the default value is 1/prod(filterSize).

The default NormalizationFactor has the effect of a mean filter — the pixels in the output image are the local means of the image over the neighborhood determined by filterSize. To get local area sums, set NormalizationFactor to 1. To avoid overflow in such circumstances, consider using double precision images by converting the input image to class double.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Output Arguments

B — Filtered image

numeric array

Filtered image, returned as a numeric array of the same size as the input image A.

Algorithms

imboxfilt performs filtering using either convolution-based filtering or integral image filtering, using an internal heuristic to determine which filtering approach to use.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

• imboxfilt supports the generation of C code (requires MATLAB^® Coder™). Note that if you choose the generic MATLAB Host Computer target platform, imboxfilt generates code that uses a precompiled, platform-specific shared library. Use of a shared library preserves performance optimizations but limits the target platforms for which code can be generated. For more information, see Types of Code Generation Support in Image Processing Toolbox.

• When generating code, all character vector input arguments must be compile-time constants.

GPU Code Generation

Generate CUDA® code for NVIDIA® GPUs using GPU Coder™.

Usage notes and limitations:

• When generating code, all character vector input arguments must be compile-time constants.

Thread-Based Environment

Run code in the background using MATLAB® backgroundPool or accelerate code with Parallel Computing Toolbox™ ThreadPool.

This function fully supports thread-based environments. For more information, see Run MATLAB Functions in Thread-Based Environment.

Version History

Introduced in R2015b

R2022b: Support for thread-based environments

imboxfilt now supports thread-based environments.
