edgetaper

Taper discontinuities along image edges

Syntax

J = edgetaper(I,PSF)

Description

J = edgetaper(I,PSF) blurs the edges of the input image I using the point spread function PSF.

The output image J is the weighted sum of the original image I and its blurred version. The weighting array, determined by the autocorrelation function of PSF, makes J equal to I in its central region, and equal to the blurred version of I near the edges.

The edgetaper function reduces the ringing effect in image deblurring methods that use the discrete Fourier transform, such as deconvwnr, deconvreg, and deconvlucy.

Examples

Blur the Edges of an Image

original = imread('cameraman.tif');
PSF = fspecial('gaussian',60,10);
edgesTapered = edgetaper(original,PSF);

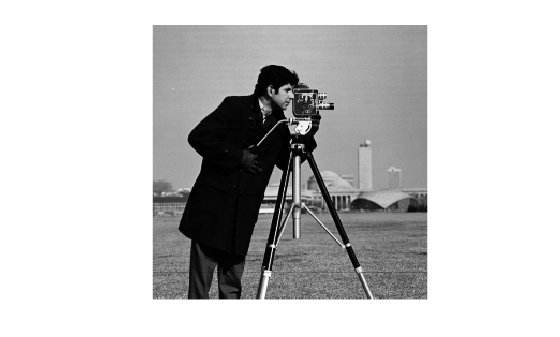

figure, imshow(original,[]);

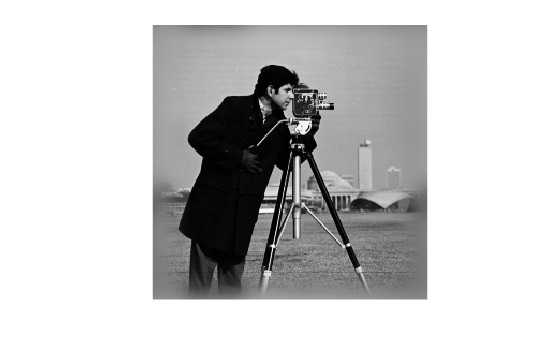

figure, imshow(edgesTapered,[]);

Input Arguments

I — Input image

numeric array

Input image, specified as a numeric array.

Data Types: single | double | int16 | uint8 | uint16

PSF — Point spread function

numeric array

Point spread function, specified as a numeric array. The size of the PSF cannot exceed half of the image size in any dimension.

Data Types: single | double | int16 | uint8 | uint16

Output Arguments

J — Weighted sum of original image and its blurred version

numeric array

Weighted sum of original image and its blurred version, returned as a numeric array the same size and class as I. The weighting array, determined by the autocorrelation function of PSF, makes J equal to I in its central region, and equal to the blurred version of I near the edges.

Version History

Introduced before R2006a
