Detect Cell Using Edge Detection and Morphology

This example shows how to detect a cell using edge detection and basic morphology. An object can be easily detected in an image if the object has sufficient contrast from the background.

Step 1: Read Image

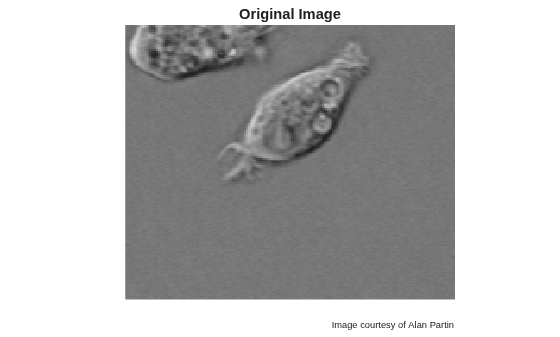

Read in the cell.tif image, which is an image of a prostate cancer cell. Two cells are present in this image, but only one cell can be seen in its entirety. The goal is to detect, or segment, the cell that is completely visible.

I = imread('cell.tif');
imshow(I)
title('Original Image');
text(size(I,2),size(I,1)+15, ...
    'Image courtesy of Alan Partin', ...
    'FontSize',7,'HorizontalAlignment','right');
text(size(I,2),size(I,1)+25, ....
    'Johns Hopkins University', ...
    'FontSize',7,'HorizontalAlignment','right');

Figure contains an axes. The axes with title Original Image contains 3 objects of type image, text.

Step 2: Detect Entire Cell

The object to be segmented differs greatly in contrast from the background image. Changes in contrast can be detected by operators that calculate the gradient of an image. To create a binary mask containing the segmented cell, calculate the gradient image and apply a threshold.

Use edge and the Sobel operator to calculate the threshold value. Tune the threshold value and use edge again to obtain a binary mask that contains the segmented cell.

[~,threshold] = edge(I,'sobel');
fudgeFactor = 0.5;
BWs = edge(I,'sobel',threshold * fudgeFactor);

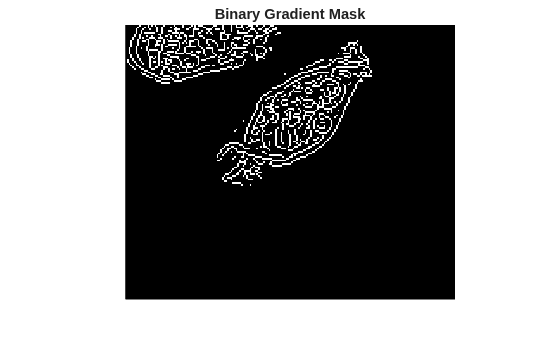

Display the resulting binary gradient mask.

imshow(BWs)
title('Binary Gradient Mask')

Figure contains an axes. The axes with title Binary Gradient Mask contains an object of type image.

Step 3: Dilate the Image

The binary gradient mask shows lines of high contrast in the image. These lines do not quite delineate the outline of the object of interest. Compared to the original image, there are gaps in the lines surrounding the object in the gradient mask. These linear gaps will disappear if the Sobel image is dilated using linear structuring elements. Create two perpindicular linear structuring elements by using strel function.

se90 = strel('line',3,90);
se0 = strel('line',3,0);

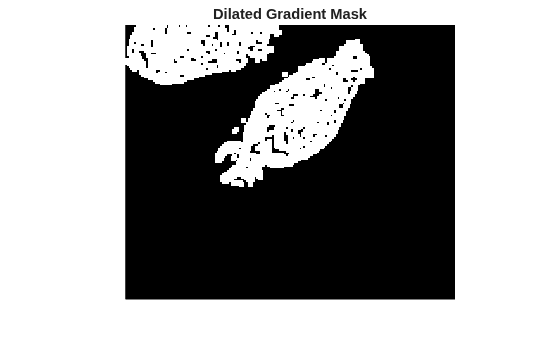

Dilate the binary gradient mask using the vertical structuring element followed by the horizontal structuring element. The imdilate function dilates the image.

BWsdil = imdilate(BWs,[se90 se0]);
imshow(BWsdil)
title('Dilated Gradient Mask')

Figure contains an axes. The axes with title Dilated Gradient Mask contains an object of type image.

Step 4: Fill Interior Gaps

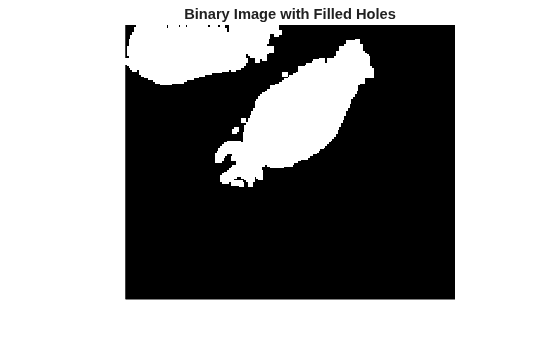

The dilated gradient mask shows the outline of the cell quite nicely, but there are still holes in the interior of the cell. To fill these holes, use the imfill function.

BWdfill = imfill(BWsdil,'holes');
imshow(BWdfill)
title('Binary Image with Filled Holes')

Figure contains an axes. The axes with title Binary Image with Filled Holes contains an object of type image.

Step 5: Remove Connected Objects on Border

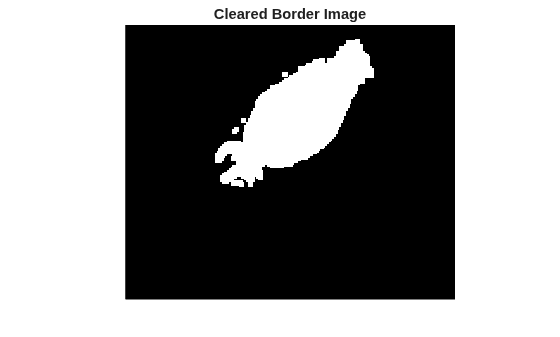

The cell of interest has been successfully segmented, but it is not the only object that has been found. Any objects that are connected to the border of the image can be removed using the imclearborder function. To remove diagonal connections, set the connectivity in the imclearborder function to 4.

BWnobord = imclearborder(BWdfill,4);
imshow(BWnobord)
title('Cleared Border Image')

Figure contains an axes. The axes with title Cleared Border Image contains an object of type image.

Step 6: Smooth the Object

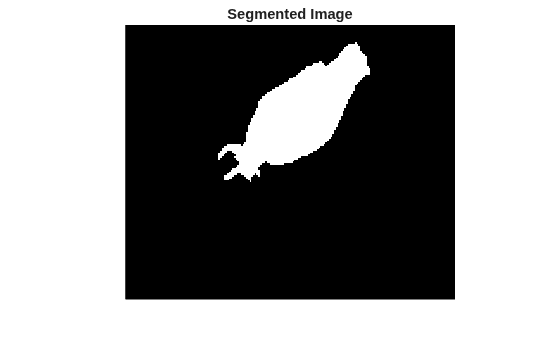

Finally, in order to make the segmented object look natural, smooth the object by eroding the image twice with a diamond structuring element. Create the diamond structuring element using the strel function.

seD = strel('diamond',1);
BWfinal = imerode(BWnobord,seD);
BWfinal = imerode(BWfinal,seD);
imshow(BWfinal)
title('Segmented Image');

Figure contains an axes. The axes with title Segmented Image contains an object of type image.

Step 7: Visualize the Segmentation

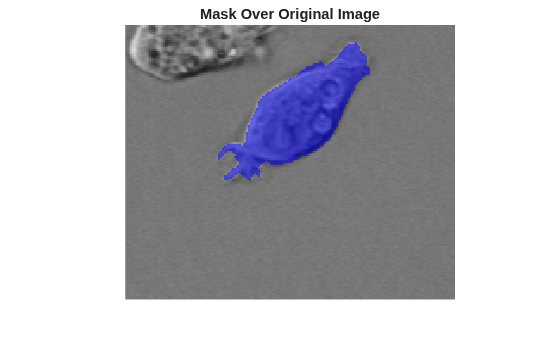

You can use the labeloverlay function to display the mask over the original image.

imshow(labeloverlay(I,BWfinal))
title('Mask Over Original Image')

Figure contains an axes. The axes with title Mask Over Original Image contains an object of type image.

An alternate method to display the segmented object is to draw an outline around the segmented cell. Draw an outline by using the bwperim function.

BWoutline = bwperim(BWfinal);
Segout = I;
Segout(BWoutline) = 255;
imshow(Segout)
title('Outlined Original Image')

Figure contains an axes. The axes with title Outlined Original Image contains an object of type image.
