Pipes and Fittings
R2026bUse these blocks to model pipe flow and resistances in the isothermal liquid domain.
Simscape Blocks
 | Area Change (IL) | Area expansion or contraction in an isothermal liquid network |
 | Elbow (IL) | Pipe turn in an isothermal liquid network |
 | Local Resistance (IL) | Pipe resistances in an isothermal liquid system |
 | Partially Filled Pipe (IL) | Pipe with variable liquid volume in an isothermal liquid system |
 | Pipe (IL) | Pipe segment in an isothermal liquid network |
 | Pipe Bend (IL) | Pipe bend segment in an isothermal liquid network |
 | T-Junction (IL) | Three-way junction in an isothermal liquid system |
 | Cross-Junction (IL) | Cross-junction in an isothermal liquid network (Since R2022b) |
 | Y-Junction (IL) | Y-junction in an isothermal liquid system (Since R2023a) |
Featured Examples
Partially Filled Pipe

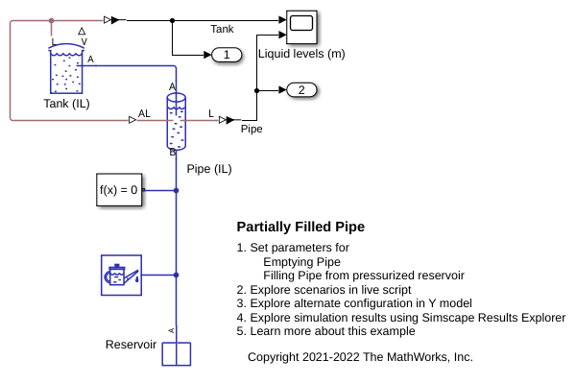

The Partially Filled Pipe (IL) block used to model the emptying and filling of a tank in multiple configurations. The block represents an arbitrarily full pipe in an isothermal liquid network. The block assumes that port A is higher than port B. The physical signal input AL indicates the relative liquid level of the block that is connected to port A. When the signal AL is less than or equal to 0, the block assumes there is no liquid is entering port A.
Flow Divider

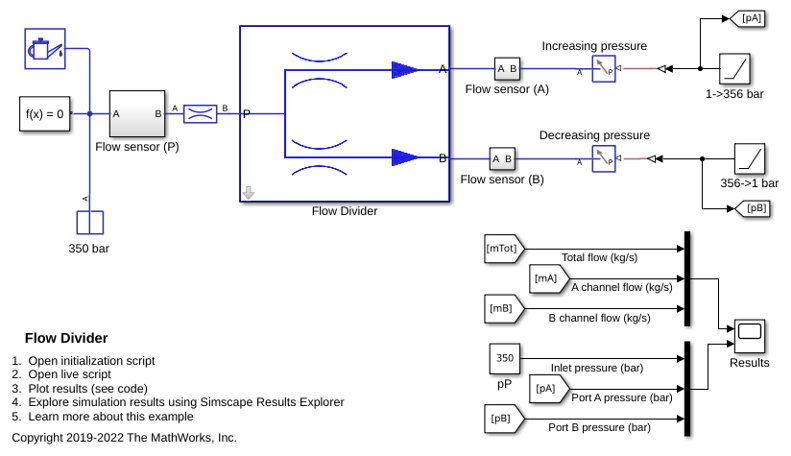

A simple way of modeling of a flow divider and using it with a load harness. The flow divider helps divide the input flow in desired percentage when the loads connected to the two lines are unequal. The flow divider allows flow only in forward direction. When it is used with loads where unloading is done through reverse flows, it should be used with direction control valves.
Lubrication System
A simplified version of a lubrication system fed with the centrifugal pump. The system consists of five major units: Pump Unit, Scavenge Unit, Heat Exchanger Manifold, Nozzle Manifold, and Control Unit. Both the pump and the scavenge unit are built around the centrifugal pump. The Scavenge Unit collects fluid discharged by nozzles and pumps it back into the reservoir of the Pump Unit. The Control Unit generates commands to bypass either the heat exchanger, represented as a local resistance, or the nozzles block. In a real system, these commands are generated by temperature sensors installed in lubrication cavities.
Water Hammer Effect
This demo shows how the Isothermal Liquid library can be used to model water hammer in a long pipe. After opening a valve to slowly establish steady flow in the pipe, the valve is quickly shut. If the Valve is shut quickly enough, it triggers a water hammer effect. A water hammer arrestor suppresses the pressure spikes.
Power-Assisted Steering Mechanism
A simplified version of a power-assisted steering mechanism. The hydraulic actuation system includes a double-acting hydraulic cylinder, 4-way valve, fixed-displacement pump, and a pressure-relief valve. The steering rack acts against a load modeled by a spring and damper.
Counterbalance Valve with Test Harness

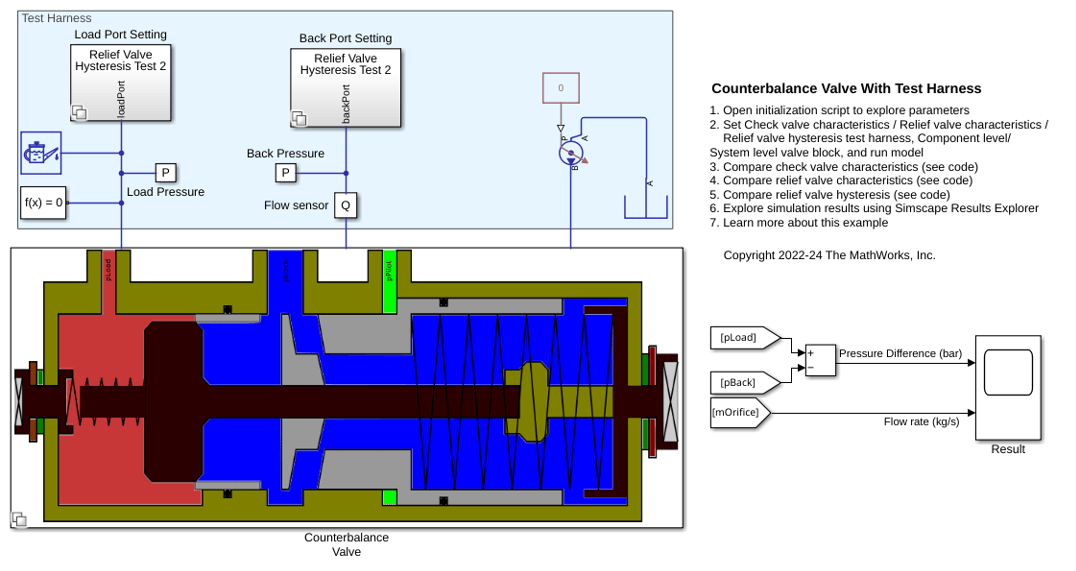

Model, parameterize, and test a counterbalance valve in detailed fidelity and system level fidelity using a variant subsystem. Running the model generates a plot of the flow from the load port to the back port due to the relief action of the counterbalance valve using the detailed fidelity variant. A counterbalance valve allows an upstream flow from the back port to the load port through the check valve stage, and it allows a downstream flow from the load port to the back port through the relief stage. Counterbalance valves help with load holding, load actuation speed control, and safety.
Pressure Reducing Valve in Punching Operation

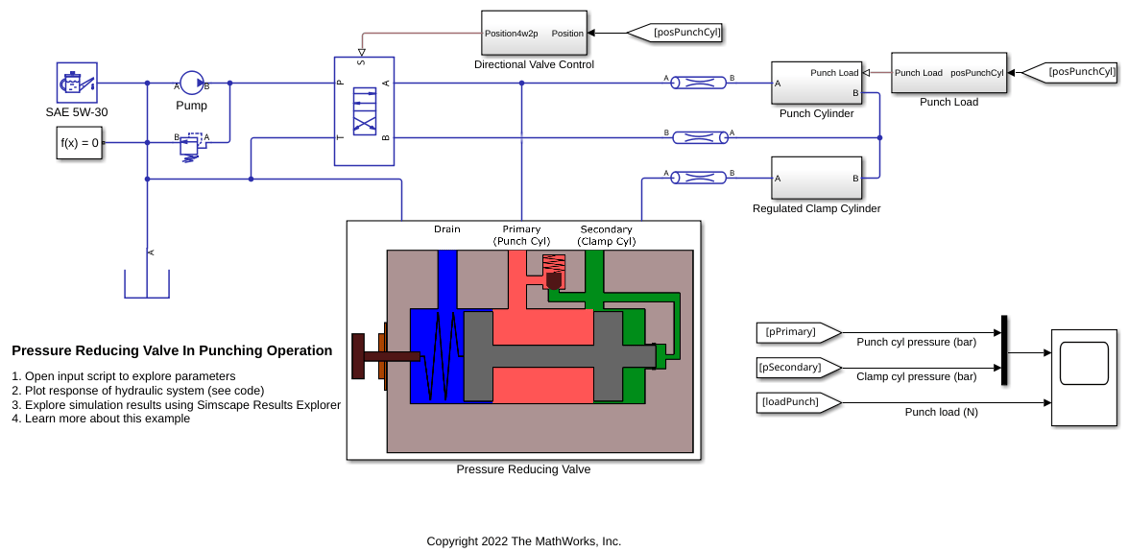

Models a hydraulic system with a direct operated, pressure reducing valve. This system helps to limit and maintain pressure in a hydraulic punching machine. Pressure reducing valves are common in hydraulic pressing, drilling, and stamping applications.
