Create PAC and Sequential CMO

This example shows how to use an underlying mortgage-backed security (MBS) pool to define a PAC bond, and then define a sequential CMO from the PAC bond. Specifically, this example uses a 30-year fixed-rate mortgage of 6% to define a PAC bond, and then define a sequential CMO from the PAC bond. You can analyze the CMO by comparing the CMO spread to a zero-rate curve for a 30-year Treasury bond and then calculate the weighted-average life (WAL) for the PAC bond.

Define Underlying Mortgage Pool

principal = 100000000;
grossrate = 0.06;
coupon = 0.05;
originalTerm = 360;
termRemaining = 360;
speed = 100;
delay = 14;

Settle      = datenum('1-Jan-2011');
IssueDate   = datenum('1-Jan-2011');
Maturity    = addtodate(IssueDate, 360, 'month');

Calculate Underlying Pool Cash Flow

Use mbscfamounts to calaculate the cash flow for the mortgage pool.

[CFlowAmounts, CFlowDates, ~, ~, ~, UnitPrincipal, UnitInterest, ...
UnitPrepayment] = mbscfamounts(Settle, Maturity, IssueDate, grossrate, ...
coupon, delay, speed, []);

Calculate Prepayments

principalPayments = UnitPrincipal * principal;
netInterest = UnitInterest * principal;
prepayments = UnitPrepayment * principal;
dates = CFlowDates' + delay;

Generate Plot for Underlying MBS Payments

area([principalPayments'+prepayments', netInterest'])
title('Underlying MBS Payments');
legend('Principal Payments (incl. Prepayments)', 'Interest Payments')

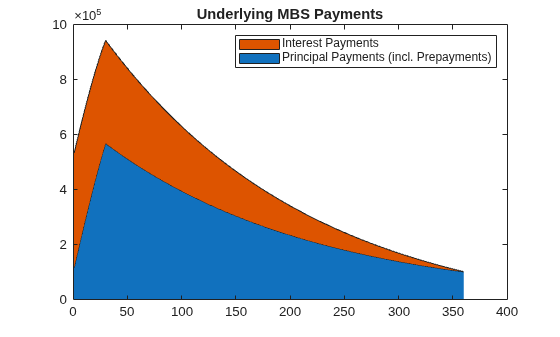

Figure contains an axes object. The axes object with title Underlying MBS Payments contains 2 objects of type area. These objects represent Principal Payments (incl. Prepayments), Interest Payments.

Calculate PAC Schedule

Use cmosched to generate the principal balance schedule for the PAC.

pacSpeed = [80 300];
[balanceSchedule, pacInitBalance] = ...
cmosched(principal, grossrate, originalTerm, termRemaining, ...
pacSpeed, []);

Generate Plot for PAC Principal Balance Schedule

figure;
area([pacInitBalance'; balanceSchedule'])
title('PAC Principal Balance Schedule');
legend('Principal Balance Schedule');

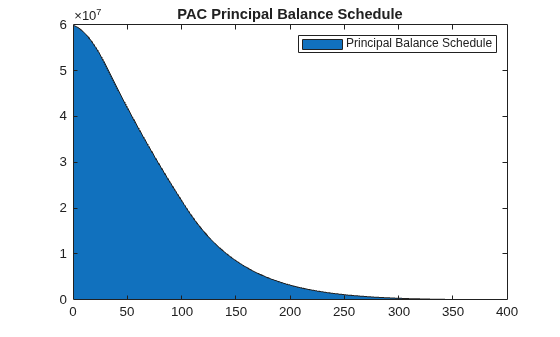

Figure contains an axes object. The axes object with title PAC Principal Balance Schedule contains an object of type area. This object represents Principal Balance Schedule.

Calculate PAC Cash Flow

Use cmoschedcf to generate cash flows for scheduled collateralized mortgage obligation (CMO) using a PAC model.

pacTranchePrincipals = [pacInitBalance; principal-pacInitBalance];
pacTrancheCoupons = [0.05; 0.05];
[pacBalances, pacPrincipals, pacInterests] = ...
cmoschedcf(principalPayments+prepayments, ...
pacTranchePrincipals, pacTrancheCoupons, balanceSchedule);

Generate Plot for PAC CMO Tranches

Generate a plot for the PAC CMO tranches:

figure;
area([pacPrincipals' pacInterests']);
title('PAC CMO (PAC and Support Tranches)');
legend('PAC Principal Payments', 'Support Principal Payments', ...
'PAC Interest Payments', 'Support Interest Payments');

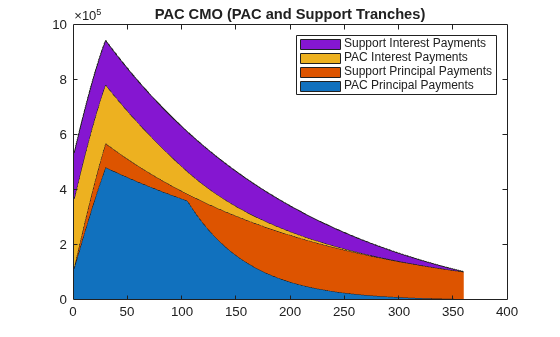

Figure contains an axes object. The axes object with title PAC CMO (PAC and Support Tranches) contains 4 objects of type area. These objects represent PAC Principal Payments, Support Principal Payments, PAC Interest Payments, Support Interest Payments.

Create Sequential CMO from PAC Bond

Create CMO tranches, A, B, C, and D.

seqTranchePrincipals = ...
[20000000; 20000000; 10000000; pacInitBalance-50000000];
seqTrancheCoupons = [0.05; 0.05; 0.05; 0.05];

Calculate Cash Flows for Each Tranche

[seqBalances, seqPrincipals, seqInterests] = ...
cmoseqcf(pacPrincipals(1, :), seqTranchePrincipals, ...
seqTrancheCoupons, false);

Generate Plot for Sequential PAC CMO

Generate a plot for the sequential PAC CMO.

figure
area([seqPrincipals' pacPrincipals(2, :)' pacInterests']);
title('Sequential PAC CMO and Support Tranches');
legend('Sequential PAC Principals (A)', 'Sequential PAC Principals (B)', ...
'Sequential PAC Principals (C)', 'Sequential PAC Principals (D)', ...
'Support Principal Payments', 'PAC Interest Payments', ...
'Support Interest Payments');

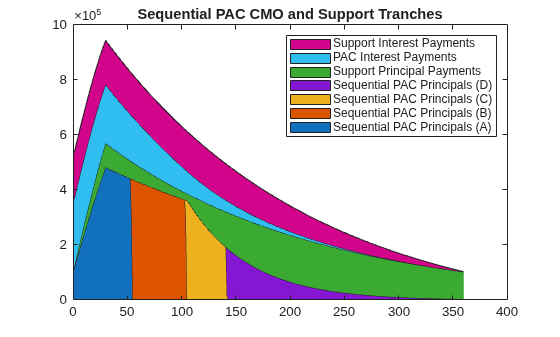

Figure contains an axes object. The axes object with title Sequential PAC CMO and Support Tranches contains 7 objects of type area. These objects represent Sequential PAC Principals (A), Sequential PAC Principals (B), Sequential PAC Principals (C), Sequential PAC Principals (D), Support Principal Payments, PAC Interest Payments, Support Interest Payments.

Create Discount Curve

Use intenvset to create zeroCurve.

CurveSettle = datenum('1-Jan-2011');
ZeroRates = [0.01 0.03 0.10 0.19 0.45 0.81 1.76 2.50 3.18 4.09 4.38]'/100;
CurveTimes = [1/12 3/12 6/12 1 2 3 5 7 10 20 30]';
CurveDates = daysadd(CurveSettle, 360 * CurveTimes, 1);
zeroCurve = intenvset('Rates', ZeroRates, 'StartDates', CurveSettle, ...
'EndDates', CurveDates);

Price CMO Cash Flows

The cash flow for the sequential PAC principal A tranche is calculated using the cash flow functions cfbyzero, cfyield, cfprice, and cfspread.

cflows = seqPrincipals(1, :)+seqInterests(1, :);
cfdates = dates(2:end)';
price1 = cfbyzero(zeroCurve, cflows, cfdates, Settle, 4)
price1 =
2.2109e+07
yield = cfyield(cflows, cfdates, price1, Settle, 'Basis', 4)
yield =
0.0090
price2 = cfprice(cflows, cfdates, yield, Settle, 'Basis', 4)
price2 =
2.2109e+07
spread = cfspread(zeroCurve, price2, cflows, cfdates, Settle, 'Basis', 4)
spread =
5.5084e-12
WAL = sum(cflows .* yearfrac(Settle, cfdates, 4)) / sum(cflows)
WAL =
2.5408

The weighted average life (WAL) for the sequential PAC principal A tranche is 2.54 years.
