cfport

Portfolio form of cash flow amounts

Syntax

[CFBondDate,AllDates,AllTF,IndByBond] = cfport(CFlowAmounts,CFlowDates)

[CFBondDate,AllDates,AllTF,IndByBond] = cfport(___,TFactors)

Description

[CFBondDate,AllDates,AllTF,IndByBond] = cfport(CFlowAmounts,CFlowDates) computes a vector of all cash flow dates of a bond portfolio, and a matrix mapping the cash flows of each bond to those dates. Use the matrix for pricing the bonds against a curve of discount factors.

[CFBondDate,AllDates,AllTF,IndByBond] = cfport(___,TFactors) specifies options using one or more optional arguments in addition to the input arguments in the previous syntax.

Examples

Calculate the Cash Flow Amounts, Cash Flow Dates, and Time Factors for Each of Two Bonds

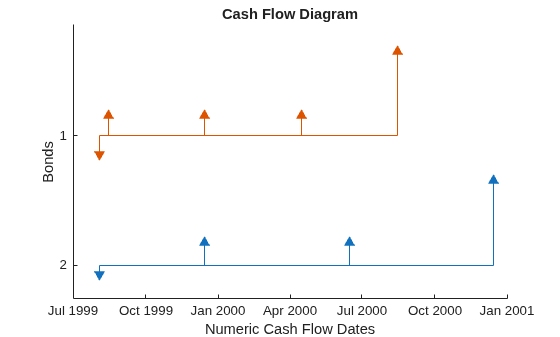

Use the function cfamounts to calculate the cash flow amounts, cash flow dates, and time factors for each of two bonds. Then use the function cfplot to plot the cash flow diagram.

Settle = '03-Aug-1999';
Maturity = ['15-Aug-2000';'15-Dec-2000'];
CouponRate= [0.06; 0.05];
Period = [3;2];
Basis = [1;0];
[CFlowAmounts, CFlowDates, TFactors] = cfamounts(CouponRate,...
Settle, Maturity, Period, Basis);
cfplot(CFlowDates,CFlowAmounts)
xlabel('Numeric Cash Flow Dates')
ylabel('Bonds')
title('Cash Flow Diagram')

Call the function cfport to map the cash flow amounts to the cash flow dates. Each row in the resultant CFBondDate matrix represents a bond. Each column represents a date on which one or more of the bonds has a cash flow. A 0 means the bond did not have a cash flow on that date. The dates associated with the columns are listed in AllDates. For example, the first bond had a cash flow of 2.000 on 730347. The second bond had no cash flow on this date For each bond, IndByBond indicates the columns of CFBondDate, or dates in AllDates, for which a bond has a cash flow.

[CFBondDate, AllDates, AllTF, IndByBond] = ...
cfport(CFlowAmounts, CFlowDates, TFactors)

CFBondDate = 2×7

   -1.8000    2.0000    2.0000    2.0000         0  102.0000         0
   -0.6694         0    2.5000         0    2.5000         0  102.5000

AllDates = 7×1

      730335
      730347
      730469
      730591
      730652
      730713
      730835

AllTF = 7×1

         0
    0.0663
    0.7322
    1.3989
    1.7322
    2.0663
    2.7322

IndByBond = 2×5

     1     2     3     4     6
     1     3     5     7   NaN

Calculate the Cash Flow Amounts, Cash Flow Dates Using a datetime Array, and Time Factors for Each of Two Bonds

Use the function cfamounts to calculate the cash flow amounts, cash flow dates, and time factors for each of two bonds.

Settle = datetime(1999,8,3);
Maturity = [datetime(2000,8,15) ; datetime(2000,12,15)];
CouponRate= [0.06; 0.05];
Period = [3;2];
Basis = [1;0];
[CFlowAmounts, CFlowDates, TFactors] = cfamounts(CouponRate,...
Settle, Maturity, Period, Basis);

Call the function cfport to map the cash flow amounts to the cash flow dates. Each row in the resultant CFBondDate matrix represents a bond. Each column represents a date on which one or more of the bonds has a cash flow. A 0 means the bond did not have a cash flow on that date. The dates associated with the columns are listed in AllDates returned as a datetime array.

[CFBondDate, AllDates, AllTF, IndByBond] = ...
cfport(CFlowAmounts, CFlowDates, TFactors)

CFBondDate = 2×7

   -1.8000    2.0000    2.0000    2.0000         0  102.0000         0
   -0.6694         0    2.5000         0    2.5000         0  102.5000

AllDates = 7x1 datetime
   03-Aug-1999
   15-Aug-1999
   15-Dec-1999
   15-Apr-2000
   15-Jun-2000
   15-Aug-2000
   15-Dec-2000

AllTF = 7×1

         0
    0.0663
    0.7322
    1.3989
    1.7322
    2.0663
    2.7322

IndByBond = 2×5

     1     2     3     4     6
     1     3     5     7   NaN

Input Arguments

CFlowAmounts — Cash flow amounts

matrix

Cash flow amounts, specified as number of bonds (NUMBONDS) by number of cash flows (NUMCFS) matrix with entries listing cash flow amounts corresponding to each date in CFlowDates.

Data Types: double

CFlowDates — Cash flow dates

datetime array | string array | date character vector

Cash flow dates, specified as an NUMBONDS-by-NUMCFS matrix with rows listing cash flow dates using a datetime array, string array, or date character vectors for each bond and padded with NaNs. If CFlowDates is a serial date number or a date character vector, AllDates is returned as an array of serial date numbers. If CFlowDates is a datetime array, then AllDates is returned as a datetime array.

To support existing code, cfport also accepts serial date numbers as inputs, but they are not recommended.

Data Types: char | string | datetime

TFactors — Time between settlement and the cash flow date

matrix

(Optional) Time between settlement and the cash flow date, specified as an NUMBONDS-by-NUMCFS matrix with entries listing the time between settlement and the cash flow date measured in semiannual coupon periods.

Data Types: double

Output Arguments

CFBondDate — Cash flows indexed by bond and by date

matrix

Cash flows indexed by bond and by date, returned as an NUMBONDS by number of dates (NUMDATES) matrix. Each row contains a bond's cash flow values at the indices corresponding to entries in AllDates. Other indices in the row contain zeros.

AllDates — List of all dates that have any cash flow from the bond portfolio

matrix

List of all dates that have any cash flow from the bond portfolio, returned as an NUMDATES-by-1 matrix. The AllDates matrix is expressed in datetime format (if CFlowDates is in datetime format).

AllTF — Time factors corresponding to the dates in AllDates

matrix

Time factors corresponding to the dates in AllDates, returned as an NUMDATES-by-1 matrix. If TFactors is not entered, AllTF contains the number of days from the first date in AllDates.

IndByBond — Indices by bond

matrix

Indices by bond, returned as an NUMBONDS-by-NUMCFS matrix. The ith row contains a list of indices into AllDates where the ith bond has cash flows. Since some bonds have more cash flows than others, the matrix is padded with NaNs.

Version History

Introduced before R2006a

R2022b: Serial date numbers not recommended

Although cfport supports serial date numbers, datetime values are recommended instead. The datetime data type provides flexible date and time formats, storage out to nanosecond precision, and properties to account for time zones and daylight saving time.

To convert serial date numbers or text to datetime values, use the datetime function. For example:

t = datetime(738427.656845093,"ConvertFrom","datenum");
y = year(t)

y =

        2021

There are no plans to remove support for serial date number inputs.
