euroAssessment

Store Euro NCAP assessment protocol specifications

Since R2025a

expand all in page

Description

Add-On Required: This feature requires the Automated Driving Toolbox Test Suite for Euro NCAP Protocols add-on.

The euroAssessment object stores Euro NCAP® assessment protocols specifications and assessment scores. For more information, see the Euro NCAP assessment protocol for vulnerable road user protection [1] and safety assist collision avoidance [2].

Creation

Syntax

euroAssessmentObj = euroAssessment

Description

euroAssessmentObj = euroAssessment creates a Euro NCAP assessment object euroAssessmentObj with the Name and Year properties set as "Euro NCAP" and 2023, respectively.

example

Properties

expand all

This property is read-only.

Name of the assessment protocol, represented as "Euro NCAP".

This property is read-only.

Assessment protocol implementation year, represented as 2023.

Object Functions

assessmentTableCreate empty assessment table for Euro NCAP test scenario
ncapScoreObtain score for Euro NCAP test
ncapReport Generate report from Euro NCAP test scenario assessment results
exportReport Export report of Euro NCAP test scenario assessment results

Examples

collapse all

This example uses:

Open Live Script

Specify a Euro NCAP test name.

ncapTestName = "SA AEB CCFtap";

Create a Euro NCAP protocol specification object.

euroAssessmentObj = euroAssessment;

Create an empty Euro NCAP assessment table for the specified Euro NCAP test name.

emptyAssessmentTable = assessmentTable(euroAssessmentObj,ncapTestName)
emptyAssessmentTable=9×2 table
     "EgoSpeed = 2.7778m/s, PrimaryTargetSpeed = 8.3333m/s"    NaN
       "EgoSpeed = 2.7778m/s, PrimaryTargetSpeed = 12.5m/s"    NaN
    "EgoSpeed = 2.7778m/s, PrimaryTargetSpeed = 16.6667m/s"    NaN
     "EgoSpeed = 4.1667m/s, PrimaryTargetSpeed = 8.3333m/s"    NaN
       "EgoSpeed = 4.1667m/s, PrimaryTargetSpeed = 12.5m/s"    NaN
    "EgoSpeed = 4.1667m/s, PrimaryTargetSpeed = 16.6667m/s"    NaN
     "EgoSpeed = 5.5556m/s, PrimaryTargetSpeed = 8.3333m/s"    NaN
       "EgoSpeed = 5.5556m/s, PrimaryTargetSpeed = 12.5m/s"    NaN
    "EgoSpeed = 5.5556m/s, PrimaryTargetSpeed = 16.6667m/s"    NaN

Create a copy of the empty assessment table, and fill in the values of the assessment criteria in the table.

filledAssessmentTable = emptyAssessmentTable;
filledAssessmentTable.CollisionAvoidance(:) = 1;

Compute the score for the specified Euro NCAP test name.

[score,assessmentTableUpdated] = ncapScore(euroAssessmentObj,ncapTestName,filledAssessmentTable);

Display the score for the specified Euro NCAP test name.

disp(score)
    AggregateScore: 1
    AvailableScore: 1

Display the updated assessment table.

disp(assessmentTableUpdated)
                        TestDescription                        CollisionAvoidance    EntryStatus    Points    Weights    Colors
    _______________________________________________________    __________________    ___________    ______    _______    _______

    "EgoSpeed = 2.7778m/s, PrimaryTargetSpeed = 8.3333m/s"             1               "Valid"        1          1       "Green"
    "EgoSpeed = 2.7778m/s, PrimaryTargetSpeed = 12.5m/s"               1               "Valid"        1          1       "Green"
    "EgoSpeed = 2.7778m/s, PrimaryTargetSpeed = 16.6667m/s"            1               "Valid"        1          1       "Green"
    "EgoSpeed = 4.1667m/s, PrimaryTargetSpeed = 8.3333m/s"             1               "Valid"        1          1       "Green"
    "EgoSpeed = 4.1667m/s, PrimaryTargetSpeed = 12.5m/s"               1               "Valid"        1          1       "Green"
    "EgoSpeed = 4.1667m/s, PrimaryTargetSpeed = 16.6667m/s"            1               "Valid"        1          1       "Green"
    "EgoSpeed = 5.5556m/s, PrimaryTargetSpeed = 8.3333m/s"             1               "Valid"        1          1       "Green"
    "EgoSpeed = 5.5556m/s, PrimaryTargetSpeed = 12.5m/s"               1               "Valid"        1          1       "Green"
    "EgoSpeed = 5.5556m/s, PrimaryTargetSpeed = 16.6667m/s"            1               "Valid"        1          1       "Green"

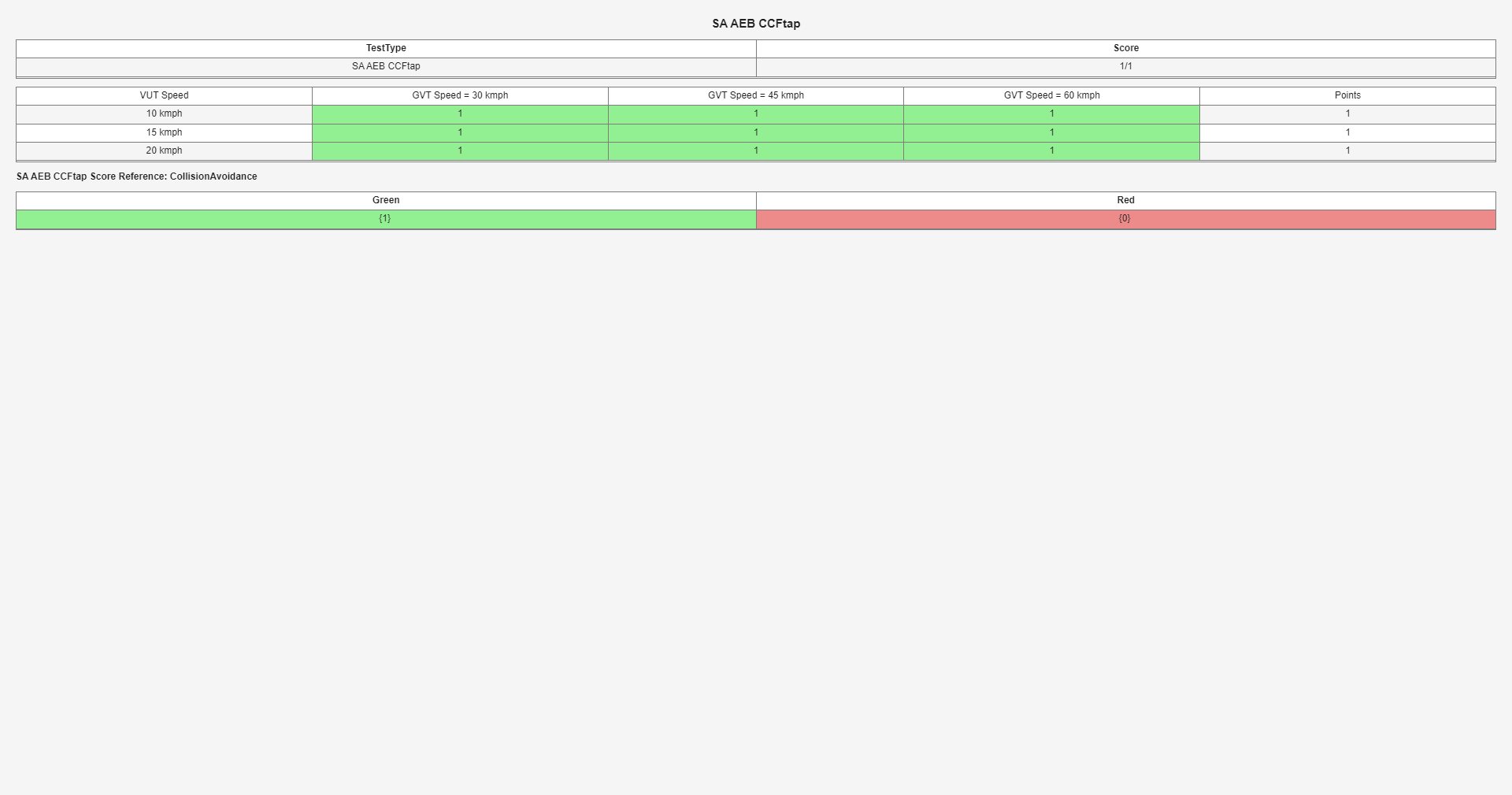

Generate a report showing consolidated assessment results for the EURO NCAP test.

fig = ncapReport(euroAssessmentObj,ncapTestName);
fig.WindowState = "maximized";

Export report to a PNG image.

exportReport(euroAssessmentObj,ncapTestName,"results.png")

References

[1] European New Car Assessment Programme (Euro NCAP). Assessment Protocol - Vulnerable Road User Protection, Implementation 2023, Version 11.4, December 2023. https://www.euroncap.com/media/79885/euro-ncap-assessment-protocol-vru-v114.pdf.

[2] European New Car Assessment Programme (Euro NCAP). Assessment Protocol - Safety Assist Collision Avoidance, Implementation 2023, Version 10.4.1, February 2024. https://www.euroncap.com/media/80154/euro-ncap-assessment-protocol-sa-collision-avoidance-v1041.pdf.

Version History

Introduced in R2025a
