Frequency Response of a SISO System
This example shows how to plot the frequency response and obtain frequency response data for a single-input, single-output (SISO) dynamic system model.

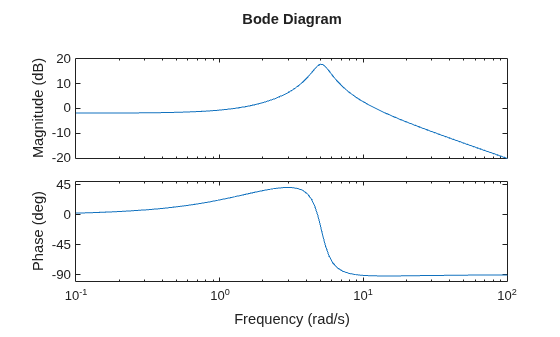

Create a transfer function model and plot its frequency response.
H = tf([10,21],[1,1.4,26]); bode(H)
When you can bode
without output arguments, it plots the frequency response on the screen. Unless you specify a frequency range to plot, bode
automatically chooses a frequency range based on the system dynamics.
Calculate the frequency response between 1 and 13 rad/s.
[mag,phase,w] = bode(H,{1,13});
When you call bode
with output arguments, the command returns vectors mag
and phase
containing the magnitude and phase of the frequency response. The cell array input {1,13}
tells bode
to calculate the response at a grid of frequencies between 1 and 13 rad/s. bode
returns the frequency points in the vector w
.
