passiveplot

Compute or plot passivity index as function of frequency

Syntax

passiveplot(G)

passiveplot(G,type)

passiveplot(___,w)

passiveplot(G1,G2,...,GN,___)

passiveplot(G1,LineSpec1,...,GN,LineSpecN,___)

[index,wout] = passiveplot(G)

[index,wout] = passiveplot(G,type)

index = passiveplot(G,w)

index = passiveplot(G,type,w)

Description

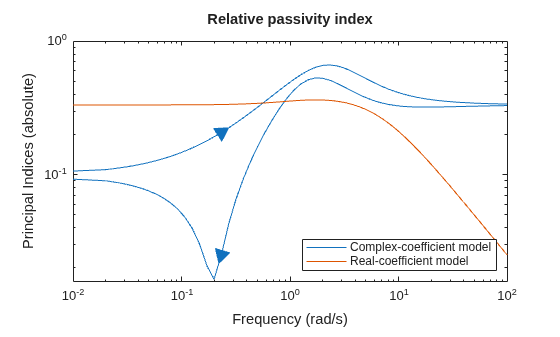

passiveplot(G) plots the relative passivity indices of the dynamic system G as a function of frequency. When I + G is minimum phase, the relative passivity indices are the singular values of (I - G)(I + G)^-1. The largest singular value measures the relative excess (R < 1) or shortage (R > 1) at each frequency. See getPassiveIndex for more information about the meaning of the passivity index.

passiveplot automatically chooses the frequency range and number of points for the plot based on the dynamics of G.

passiveplot(G,type) plots the input, output, or I/O passivity index, depending on the value of type: 'input', 'output', or 'io', respectively.

passiveplot(___,w) plots the passivity index for frequencies specified by w.

• If w is a cell array of the form {wmin,wmax}, then passiveplot plots the passivity index at frequencies ranging between wmin and wmax.

• If w is a vector of frequencies, then passiveplot plots the passivity index at each specified frequency.

You can use this syntax with any of the previous input-argument combinations.

passiveplot(G1,G2,...,GN,___) plots the passivity index for multiple dynamic systems G1,G2,...,GN on the same plot. You can also use this syntax with the type input argument, with w to specify frequencies to plot, or both.

passiveplot(G1,LineSpec1,...,GN,LineSpecN,___) specifies a color, linestyle, and marker for each system in the plot.

[index,wout] = passiveplot(G) and [index,wout] = passiveplot(G,type) return the passivity index at each frequency in the vector wout. The output index is a matrix, and the value index(:,k) gives the passivity indices in descending order at the frequency w(k). This syntax does not draw a plot.

index = passiveplot(G,w) and index = passiveplot(G,type,w) return the passivity indices at the frequencies specified by w.

Examples

Plot Passivity Versus Frequency

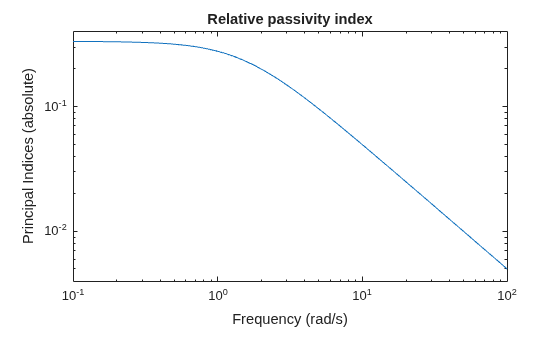

Plot the relative passivity index as a function of frequency of the system $$G=\left(s+2\right)/\left(s+1\right)$$.

G = tf([1 2],[1 1]);
passiveplot(G)

The plot shows that the relative passivity index is less than 1 at all frequencies. Therefore, the system G is passive.

Plot the input passivity index of the same system.

passiveplot(G,'input')

The input passivity index is positive at all frequencies. Therefore, the system is input strictly passive.

Plot Passivity of Multiple Systems

Plot the input passivity index of two dynamic systems and their series interconnection.

G1 = tf([5 3 1],[1 2 1]);
G2 = tf([1 1 5 0.1],[1 2 3 4]);
H = G2*G1;

passiveplot(G1,'r',G2,'b--',H,'gx','input')
legend('G1','G2','G2*G1')

The input passivity index of the interconnected system dips below 0 around 1 rad/s. This plot shows that the series interconnection of two passive systems is not necessarily passive. However, passivity is preserved for parallel or feedback interconnections of passive systems.

Input Arguments

G — Model to analyze

dynamic system model | model array

Model to analyze for passivity, specified as a dynamic system model such as a tf, ss, or genss model. G can be MIMO, if the number of inputs equals the number of outputs. G can be continuous or discrete. If G is a generalized model with tunable or uncertain blocks, passiveplot evaluates passivity of the current, nominal value of G.

If G is a model array, then passiveplot plots the passivity index of all models in the array on the same plot. When you use output arguments to get passivity data, G must be a single model.

type — Type of passivity index

'input' | 'output' | 'io'

Type of passivity index, specified as one of the following:

• 'input' — Input passivity index (input feedforward passivity). This value is the smallest eigenvalue of $$\left(G\left(s\right)+G{\left(s\right)}^H\right)/2$$, for s = jω in continuous time, and s = e_jω in discrete time.

• 'output' — Output passivity index (output feedback passivity). When G is minimum phase, this value is the smallest eigenvalue of $$\left(G{\left(s\right)}^{-1}+G{\left(s\right)}^{-H}\right)/2$$, for s = jω in continuous time, and s = e_jω in discrete time.

• 'io' — Combined I/O passivity index. When I + G is minimum phase, this value is the largest τ(ω) such that:

  $$\text{G}\left(s\right)+\text{G}{\left(s\right)}^H>2\tau \left(\omega \right)\left(I+\text{G}{\left(s\right)}^H\text{G}\left(s\right)\right),$$

  for s = jω in continuous time, and s = e_jω in discrete time.

See About Passivity and Passivity Indices for details about these indices.

w — Frequencies

{wmin,wmax} | vector

Frequencies at which to compute and plot indices, specified as the cell array {wmin,wmax} or as a vector of frequency values.

• If w is a cell array of the form {wmin,wmax}, then the function computes the index at frequencies ranging between wmin and wmax.

• If w is a vector of frequencies, then the function computes the index at each specified frequency. For example, use logspace to generate a row vector with logarithmically-spaced frequency values.

Specify frequencies in units of rad/TimeUnit, where TimeUnit is the TimeUnit property of the model.

LineSpec — Line style, marker, and color

character vector | string

Line style, marker, and color, specified as a string or vector of one, two, or three characters. The characters can appear in any order. You do not need to specify all three characteristics (line style, marker, and color). For example, if you omit the line style and specify the marker, then the plot shows only the marker and no line. For more information about configuring this argument, see the LineSpec input argument of the plot function.

Example: 'r--' specifies a red dashed line

Example: '*b' specifies blue asterisk markers

Example: 'y' specifies a yellow line

Output Arguments

index — Passivity indices

matrix

Passivity indices as a function of frequency, returned as a matrix. index contains whichever type of passivity index you specify, computed at the frequencies w if you supplied them, or wout if you did not. index has as many columns as there are values in w or wout, and

• One row, for the input, output, or combined i/o passivity indices.

• As many rows as G has inputs or outputs, for the relative passivity index.

For example, suppose that G is a 3-input, 3-output system, and w is a 1-by-30 vector of frequencies. Then the following syntax returns a 3-by-30 matrix index.

index = passiveplot(G,w);

The entry index(:,k) contains the relative passivity indices of G, in descending order, at the frequency w(k).

wout — Frequencies

vector

Frequencies at which the indices are calculated, returned as a vector. The function automatically chooses the frequency range and number of points based on the dynamics of the model.
