constellation
Calculate or plot ideal signal constellation
Description
Examples
Plot QPSK Reference Constellation
Create a QPSK modulator.
mod = comm.QPSKModulator;
Determine the reference constellation points.
refC = constellation(mod)
refC = 4×1 complex
0.7071 + 0.7071i
-0.7071 + 0.7071i
-0.7071 - 0.7071i
0.7071 - 0.7071i
Plot the constellation.
constellation(mod)
Reconfigure the object for bit input and plot the constellation to show the binary values of the Gray-encoded mapping.
release(mod) mod.BitInput = true; constellation(mod)
Create a QPSK demodulator having phase offset set to 0
.
demod = comm.QPSKDemodulator(0);
Plot the reference constellation. The constellation
method works for both modulator and demodulator objects.
constellation(demod)
Plot PSK Reference Constellation
Create a PSK modulator.
mod = comm.PSKModulator;
Determine the reference constellation points.
refC = constellation(mod)
refC = 8×1 complex
0.9239 + 0.3827i
0.3827 + 0.9239i
-0.3827 + 0.9239i
-0.9239 + 0.3827i
-0.9239 - 0.3827i
-0.3827 - 0.9239i
0.3827 - 0.9239i
0.9239 - 0.3827i
Plot the constellation.
constellation(mod)
Create a PSK demodulator having modulation order 16.
demod = comm.PSKDemodulator(16);
Plot its reference constellation. The constellation
method works for both modulator and demodulator objects.
constellation(demod)
Plot BPSK Reference Constellation
Create a BPSK modulator.
mod = comm.BPSKModulator;
Determine the reference constellation points.
refC = constellation(mod)
refC = 2×1 complex
1.0000 + 0.0000i
-1.0000 + 0.0000i
Plot the constellation.
constellation(mod)
Create a BPSK demodulator having phase offset set to .
demod = comm.BPSKDemodulator(pi/2);
Determine the reference constellation points.
refC = constellation(demod)
refC = 2×1 complex
0.0000 + 1.0000i
-0.0000 - 1.0000i
Plot the reference constellation. The constellation
method works for both modulator and demodulator objects.
constellation(demod)
Plot OQPSK Reference Constellation
Create a OQPSK modulator.
mod = comm.OQPSKModulator;
Determine the reference constellation points. The constellation that displays does not depict the IQ delay introduced by the OQPSK modulator.
refC = constellation(mod)
refC = 4×1 complex
0.7071 + 0.7071i
-0.7071 + 0.7071i
-0.7071 - 0.7071i
0.7071 - 0.7071i

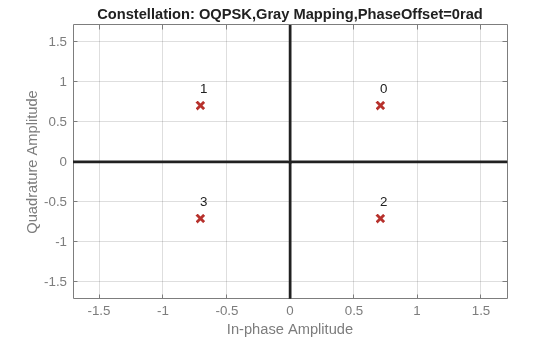

Plot the constellation.
constellation(mod)

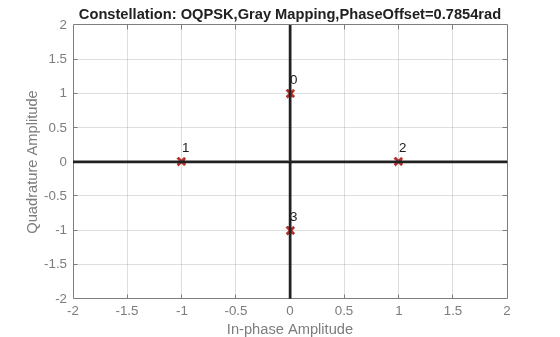

Change the phase offset for the modulated symbols. Plot the constellation to show the rotated constellation points.
release(mod) mod.PhaseOffset = 45*pi/180; constellation(mod)
Calculate Ideal PAM Signal Constellation
Create comm.PAMModulator
and comm.PAMDemodulator
System objects, and then calculate their ideal signal constellations.
Create modulator and demodulator objects.
mod = comm.PAMModulator; demod = comm.PAMModulator;
Calculate the constellation points.
refMod = constellation(mod)
refMod = 4×1
-3
-1
1
3
refDemod = constellation(demod)
refDemod = 4×1
-3
-1
1
3
Verify that both objects produce the same points.
isequal(refMod,refDemod)
ans = logical
1
Display the ideal signal constellation.
constellation(mod)
Input Arguments
obj
— System object™ to return constellation for
System object
System object to return constellation for, specified as a modulator System object.
Data Types: object
Output Arguments
symbols
— Constellation points
complex vector (default)
Constellation points, returned as a complex vector.
Data Types: double
| single
Complex Number Support: Yes
Version History
Introduced in R2012a
