Improve Performance of Edge Detection Algorithm Using Automatic Parallelization

This example is designed to perform edge detection on a 2D image using a custom filter. It highlights the performance improvement that comes from using automatic parallelization of for-loops, which is enabled by default in MATLAB® Coder™.

MATLAB Coder uses the OpenMP standard for parallel programming to efficiently distribute computations across multiple threads on a single machine. This parallelization leverages shared memory architecture to significantly speed up processing time. For more information on the parallel programming capabilities of OpenMP, see The OpenMP API Specification for Parallel Programming.

Prerequisites

To allow parallelization, ensure that your compiler supports the OpenMP. If the compiler does not support OpenMP, the code generator generates serial code.

To run the software-in-loop (SIL) verification mode, you must have an Embedded Coder license.

View Image and Filter Algorithm

The edge detection algorithm edgeDetectionOn2DImage.m applies a Sobel filter to the input image flower.jpg. The for-loop computes the gradient magnitude at each pixel by applying the input filter. The resulting image is normalized to a range of 0 to 255 for display.

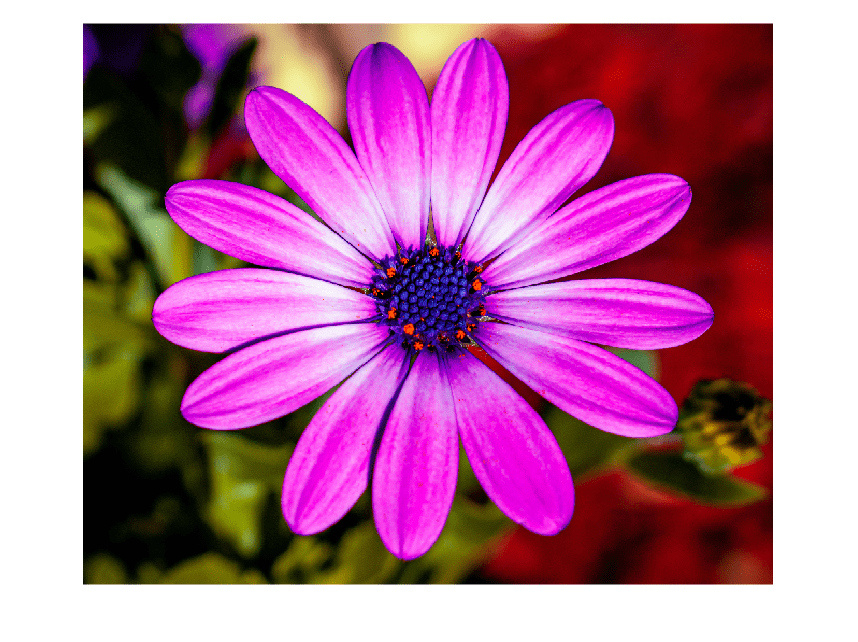

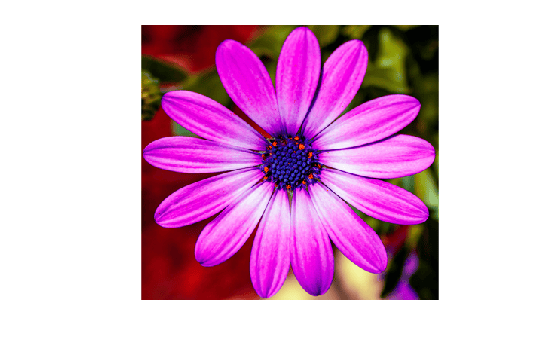

Display the input image flower.jpg.

imshow("flower.jpg")

Display the MATLAB® code for edgeDetectionOn2DImage.

type edgeDetectionOn2DImage

% This function accepts an image and a filter and returns an
% image with the filter applied on it.
function filteredImage = edgeDetectionOn2DImage(original2DImage, filter)
%#codegen
    arguments
        original2DImage (:,:) double
        filter (:,:) double
    end

    %% Algorithm for convolution
    % Initialize
    filteredImage = zeros(size(original2DImage));
    [rows, cols] = size(original2DImage);
    filterSize = size(filter);

    % Apply filter on input image through windowing technique
    for i = 3:rows-2
        for j = 3:cols-2
            % Compute the gradient components
            Gx_component = 0;
            Gy_component = 0;
            for u = 1:filterSize(1)
                for v = 1:filterSize(1)
                    pixel_value = original2DImage(i+u-3, j+v-3);
                    Gx_component = Gx_component + filter(u, v) * pixel_value;
                    Gy_component = Gy_component + filter(u, v+filterSize(1)) * pixel_value;
                end
            end
            % Compute the gradient magnitude
            filteredImage(i, j) = hypot(Gx_component, Gy_component);
        end
    end

    % Normalize the output image
    maxPixel = max(filteredImage,[], 'all');
    filteredImage = uint8(255 * (filteredImage / maxPixel));
end

Generate Parallel C Code

Generate parallel C code for the edgeDetectionOn2DImage function.

% Load the image and convert to grayscale for processing
image = double(rgb2gray(imread("flower.jpg")));

% Define the Edge Detection Filter
filter = [-2 -1 0 1 2 -2 -2 -4 -2 -2;
          -2 -1 0 1 2 -1 -1 -2 -1 -1;
          -4 -2 0 2 4  0  0  0  0  0;
          -2 -1 0 1 2  4  1  2  1  1;
          -2 -1 0 1 2  5  2  4  2  2];

cfg = coder.config("lib");
cfg.VerificationMode = "SIL";
codegen edgeDetectionOn2DImage -args {image,filter} -config cfg -report

Code generation successful: View report

You can view the generated code by clicking View report. The OpenMP pragmas in the file edgeDetectionOn2DImage.c indicate parallelization of the for-loop.

To display the output image with filter applied, run the generated SIL MEX edgeDetectionOn2DImage_sil.

out = edgeDetectionOn2DImage_sil(image,filter);

### Starting SIL execution for 'edgeDetectionOn2DImage'
    To terminate execution: clear edgeDetectionOn2DImage_sil

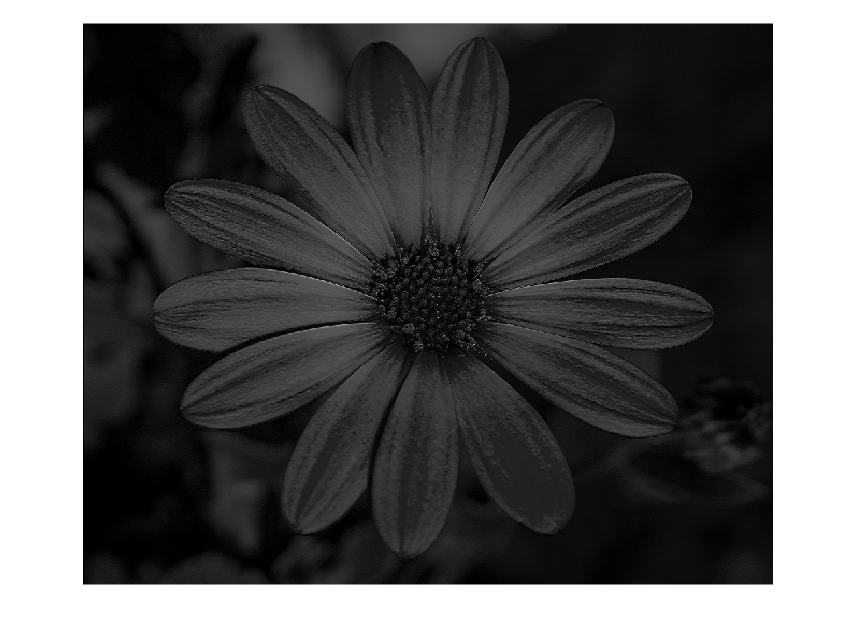

View the output image.

imshow(out)

Verify Numerical Correctness

You can verify the numerical correctness of the generated code by comparing its output with the MATLAB code output. Use the isequal function to compare their outputs.

isequal(edgeDetectionOn2DImage(image,filter),edgeDetectionOn2DImage_sil(image,filter))

ans = logical
   1

The returned value 1 (true) verifies that the generated code behaves the same as the MATLAB code.

You can also compare the generated code with the MATLAB code for a specific target hardware by setting the configuration option VerificationMode to PIL.

Compare Performance

You can compare the performance using coder.perfCompare of the code generated with automatic parallelization enabled and disabled along with MATLAB. These results are achieved when this example is run on a 12-core 64-bit Windows® platform.

Run these commands using the image and filter as defined above.

cfgOff = coder.config("lib");
cfgOff.VerificationMode = "SIL";
cfgOff.EnableAutoParallelization = false;

cfgOn = coder.config("lib");
cfgOn.VerificationMode = "SIL";

coder.perfCompare("edgeDetectionOn2DImage",1,{image,filter},{cfgOff,cfgOn}, ...
    ConfigNames={"Automatic Parallelization Disabled","Automatic Parallelization Enabled"},CompareWithMATLAB=true);

==== Running (edgeDetectionOn2DImage, MATLAB) ====
- Running MATLAB script.
TimingResult with 10 Runtime Sample(s)

Statistical Overview:
   mean = 2.13e+00 s    max = 2.23e+00 s     sd = 5.46e-02 s
 median = 2.13e+00 s    min = 2.05e+00 s   90th = 2.20e+00 s

==== Running (edgeDetectionOn2DImage, Automatic Parallelization Disabled) ====
- Generating code and building SIL/PIL MEX.
- Running MEX.
TimingResult with 10 Runtime Sample(s)

Statistical Overview:
   mean = 5.64e-01 s    max = 6.26e-01 s     sd = 2.63e-02 s
 median = 5.61e-01 s    min = 5.30e-01 s   90th = 6.04e-01 s

==== Running (edgeDetectionOn2DImage, Automatic Parallelization Enabled) ====
- Generating code and building SIL/PIL MEX.
- Running MEX.
TimingResult with 10 Runtime Sample(s)

Statistical Overview:
   mean = 1.06e-01 s    max = 1.21e-01 s     sd = 1.30e-02 s
 median = 1.08e-01 s    min = 8.53e-02 s   90th = 1.21e-01 s

                                 MATLAB        Automatic Parallelization Disabled      Automatic Parallelization Enabled
                              _____________    ___________________________________    ___________________________________
                              Runtime (sec)    Runtime (sec)    Speedup wrt MATLAB    Runtime (sec)    Speedup wrt MATLAB
                              _____________    _____________    __________________    _____________    __________________
    edgeDetectionOn2DImage       2.1324           0.56065             3.8035             0.10766             19.807

The results from coder.perfCompare show that the code generated with automatic parallelization disabled runs approximately 4 times faster than the MATLAB code. However, the code generated with automatic parallelization enabled runs approximately 20 times faster than the MATLAB code.
