Calculate Number of Lines of Code by Using Report Information Object

Open Live Script

This example shows how to calculate the number of lines in the source code and the generated code by using the report information object. For more information on the report information object, see Access Code Generation Report Information Programmatically.

The MATLAB Code

In this example, you generate code for the MATLAB function dijkstra. This function calculates the lengths of the shortest paths from a node to every other node in a graph by using Dijkstra's algorithm.

type dijkstra

% DIJKSTRA Find length of shortest path between nodes in a graph
%
% D = dijkstra(A, p)
% Takes a graph represented by its adjacency matrix 'A' along with a node
% 'p' as input and returns a vector 'D' containing the length of the
% shortest path from 'p' to all other nodes in the graph.

% Copyright 2018 The MathWorks, Inc.
function D = dijkstra(A, p) %#codegen

    narginchk(2,2);

    [m, n] = size(A);

    % Assertions to make sure inputs are valid
    assert(m == n, "Input adjacency matrix for graph must be a square matrix");
    assert(rem(p, 1) == 0 && p <= m && p > 0, "Input src must be a node in the graph");

    % Initialization
    max = realmax;
    D = repmat(max, 1, m);
    D(p) = 0;
    visited = false(1, m);

    for i = 1:m
        % Select next node to visit
        min = max;
        u = -1;
        for v = 1:n
            if ~visited(v) && D(v) <= min
                min = D(v);
                u = v;
            end
        end

        % Mark selected node as visited
        visited(u) = true;

        %{
          Update distances of nodes adjacent to selected node that are yet
          to be visited
        %}
        for v = 1:n
            if(~visited(v) && A(u, v) ~= 0 && D(u) ~= max)
                distVal = D(u) + A(u, v);
                if distVal < D(v)
                    D(v) = distVal;
                end
            end
        end
    end
end

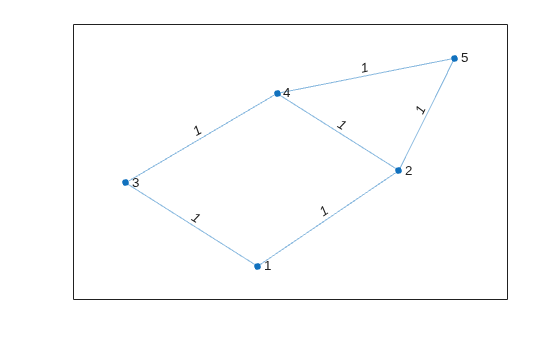

Specify the adjacency matrix A for a graph and a node p where the traversal of the graph begins. Plot the graph. Call dijkstra to compute the shortest distance from p to every node in the graph and display these distances.

% Sample adjacency Matrix for graph with 5 nodes
A = [
        0 1 1 0 0;
        1 0 0 1 1;
        1 0 0 1 0;
        0 1 1 0 1;
        0 1 0 1 0
    ];

% Plot the graph to see how it looks like
G = graph(A, 'omitselfloops');
plot(G, 'EdgeLabel', G.Edges.Weight)

% Source node from where graph traversal begins
p = randi(size(A, 1));

% Calculate shortest distance from 'p' to every other node in graph G
D = dijkstra(A, p);

for i=1:numel(D)
    fprintf("Length of shortest path from %d to %d is %d. \n", p, i, D(i));
end

Length of shortest path from 5 to 1 is 2.
Length of shortest path from 5 to 2 is 1.
Length of shortest path from 5 to 3 is 2.
Length of shortest path from 5 to 4 is 1.
Length of shortest path from 5 to 5 is 0.

Export Information about Code Generation

The report information object provides programmatic access to information about code generation. The properties of this object provide information about code generation settings, input files, generated files, and code generation error, warning, and information messages.

To export the report information object to a variable in your base MATLAB workspace, include the -reportinfo option with the name of the variable while running the codegen command. In this example, you export the code generation report information to the variable info.

codegen -c dijkstra -args {A, p} -reportinfo info

Code generation successful.
