transform

Transform audio datastore

Syntax

transformDatastore = transform(ADS,@fcn)

transformDatastore = transform(ADS,@fcn,Name,Value)

Description

transformDatastore = transform(ADS,@fcn) creates a new datastore that transforms output from the read function.

transformDatastore = transform(ADS,@fcn,Name,Value) specifies options using one or more Name,Value pair arguments.

Examples

Output Mono Audio from Datastore

Specify the file path to the audio samples included with Audio Toolbox™. Create an audio datastore that points to the specified folder.

folder = fullfile(matlabroot,'toolbox','audio','samples');
ADS = audioDatastore(folder);

Call transform to create a new datastore that mixes multichannel signals to mono.

ADSnew = transform(ADS,@(x)mean(x,2));

Read from the new datastore and confirm that it only outputs mono signals.

while hasdata(ADSnew)
    audio = read(ADSnew);
    fprintf('Number of channels = %d\n',size(audio,2))
end

Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1
Number of channels = 1

Clip Audio to Five Seconds

The audio samples included with Audio Toolbox™ have varying durations. Use the transform function to customize the read function so that it outputs a random five second segment of the audio samples.

Specify the file path to the audio samples included with Audio Toolbox. Create an audio datastore that points to the specified folder.

folder = fullfile(matlabroot,'toolbox','audio','samples');
ADS = audioDatastore(folder);

Define a function to take as input the output of the read function. Make the function extract five seconds worth of data from the audio signal.

function [dataOut,info] = extractSegment(audioIn,info)
    [N,numChan] = size(audioIn);
    newN = round(info.SampleRate*5);
    if newN > N                                % signal length < 5 seconds
        numPad = newN - N + 1;
        dataOut = [audioIn;zeros(numPad,numChan,'like',audioIn)];
    elseif newN < N                            % signal length > 5 seconds
        start = randi(N - newN + 1);
        dataOut = audioIn(start:start+newN-1,:);
    else                                       % signal length == 5 seconds
        dataOut = audioIn;
    end
end

Call transform to create a TransformedDatastore with Transforms set to the function you defined.

ADSnew = transform(ADS,@extractSegment,'IncludeInfo',true)

ADSnew =
  TransformedDatastore with properties:

      UnderlyingDatastores: {audioDatastore}
    SupportedOutputFormats: ["txt"    "csv"    "dat"    "asc"    "xlsx"    "xls"    "parquet"    "parq"    "png"    "jpg"    "jpeg"    "tif"    "tiff"    "wav"    "flac"    "ogg"    "opus"    "mp3"    "mp4"    "m4a"]
                Transforms: {[@extractSegment]}
               IncludeInfo: 1

Read the first three audio files and verify that the outputs are five second segments.

for i = 1:3
    [audio,info] = read(ADSnew);
    fprintf('Duration = %d seconds\n',size(audio,1)/info.SampleRate)
end

Duration = 5 seconds
Duration = 5 seconds
Duration = 5 seconds

Output Mel Spectrogram

Use transform to create an audio datastore that returns a mel spectrogram representation from the read function.

Specify the file path to the audio samples included with Audio Toolbox™. Create an audio datastore that points to the specified folder.

folder = fullfile(matlabroot,'toolbox','audio','samples');
ADS = audioDatastore(folder);

Define a function that transforms audio data from a time-domain representation to a log mel spectrogram. The function adds the additional outputs from the melSpectrogram function to the info struct output from reading the audio datastore.

function [dataOut,infoOut] = extractMelSpectrogram(audioIn,info)

    [S,F,T] = melSpectrogram(audioIn,info.SampleRate);

    dataOut = 10*log10(S+eps);
    infoOut = info;
    infoOut.CenterFrequencies = F;
    infoOut.TimeInstants = T;
end

Call transform to create a TransformedDatastore with Transforms set to extractMelSpectrogram.

ADSnew = transform(ADS,@extractMelSpectrogram,'IncludeInfo',true)

ADSnew =
  TransformedDatastore with properties:

      UnderlyingDatastores: {audioDatastore}
    SupportedOutputFormats: ["txt"    "csv"    "dat"    "asc"    "xlsx"    "xls"    "parquet"    "parq"    "png"    "jpg"    "jpeg"    "tif"    "tiff"    "wav"    "flac"    "ogg"    "opus"    "mp3"    "mp4"    "m4a"]
                Transforms: {[@extractMelSpectrogram]}
               IncludeInfo: 1

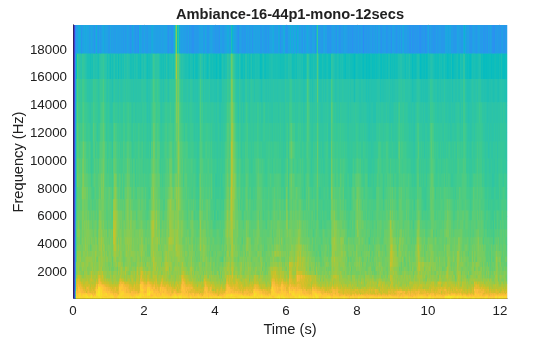

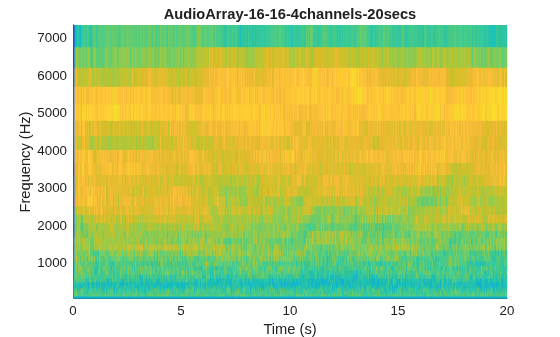

Read the first three audio files and plot the log mel spectrograms. If there are multiple channels, plot only the first channel.

for i = 1:3
    [melSpec,info] = read(ADSnew);

    figure(i)
    surf(info.TimeInstants,info.CenterFrequencies,melSpec(:,:,1),'EdgeColor','none');
    xlabel('Time (s)')
    ylabel('Frequency (Hz)')
    [~,name] = fileparts(info.FileName);
    title(name)
    axis([0 info.TimeInstants(end) info.CenterFrequencies(1) info.CenterFrequencies(end)])
    view([0,90])
end

Output Spectral Shape Features

Use transform to create an audio datastore that returns feature vectors.

Specify the file path to the audio samples included with Audio Toolbox™. Create an audio datastore that points to the specified folder.

folder = fullfile(matlabroot,'toolbox','audio','samples');
ADS = audioDatastore(folder);

Define a function, extractFeatureVector, that transforms the audio data from a time-domain representation to feature vectors.

function [dataOut,info] = extractFeatureVector(audioIn,info)

    % Convert to frequency-domain representation
    windowLength = 256;
    overlapLength = 128;
    [~,f,~,S] = spectrogram(mean(audioIn,2), ...
                            hann(windowLength,"Periodic"), ...
                            overlapLength, ...
                            windowLength, ...
                            info.SampleRate, ...
                            "power", ...
                            "onesided");

    % Extract features
    [kurtosis,spread,centroid] = spectralKurtosis(S,f);
    skewness = spectralSkewness(S,f);
    crest    = spectralCrest(S,f);
    decrease = spectralDecrease(S,f);
    entropy  = spectralEntropy(S,f);
    flatness = spectralFlatness(S,f);
    flux     = spectralFlux(S,f);
    rolloff  = spectralRolloffPoint(S,f);
    slope    = spectralSlope(S,f);

    % Concatenate to create feature vectors
    dataOut = [kurtosis,spread,centroid,skewness,crest,decrease,entropy,flatness,flux,rolloff,slope];

end

Call transform to create a TransformedDatastore with Transforms set to extractFeatureVector.

ADSnew = transform(ADS,@extractFeatureVector,'IncludeInfo',true)

ADSnew =

  TransformedDatastore with properties:

      UnderlyingDatastores: {audioDatastore}
    SupportedOutputFormats: ["txt"    "csv"    "dat"    ...    ] (1x20 string)
                Transforms: {[@extractFeatureVector]}
               IncludeInfo: 1

Call read to return the feature vectors for the audio over time.

featureMatrix = read(ADSnew);
[numFeatureVectors,numFeatures] = size(featureMatrix)

numFeatureVectors =

        4215


numFeatures =

    11

Apply Bandpass Filtering

Use transform to create an audio datastore that applies bandpass filtering before returning audio from the read function.

Specify the file path to the audio samples included with Audio Toolbox™. Create an audio datastore that points to the specified folder.

folder = fullfile(matlabroot,'toolbox','audio','samples');
ADS = audioDatastore(folder);

Define a function, applyBandpassFilter, that applies a bandpass filter with a passband between 1 and 15 kHz.

function [audioOut,info] = applyBandpassFilter(audioIn,info)

    audioOut = bandpass(audioIn,[1e3,15e3],info.SampleRate);

end

Call transform to create a TransformedDatastore with Transforms set to applyBandpassFilter.

ADSnew = transform(ADS,@applyBandpassFilter,'IncludeInfo',true)

ADSnew =
  TransformedDatastore with properties:

      UnderlyingDatastores: {audioDatastore}
    SupportedOutputFormats: ["txt"    "csv"    "dat"    "asc"    "xlsx"    "xls"    "parquet"    "parq"    "png"    "jpg"    "jpeg"    "tif"    "tiff"    "wav"    "flac"    "ogg"    "opus"    "mp3"    "mp4"    "m4a"]
                Transforms: {[@applyBandpassFilter]}
               IncludeInfo: 1

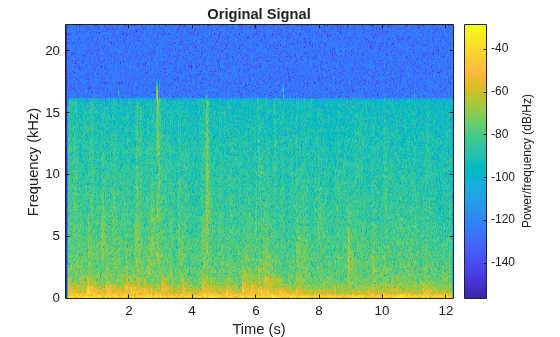

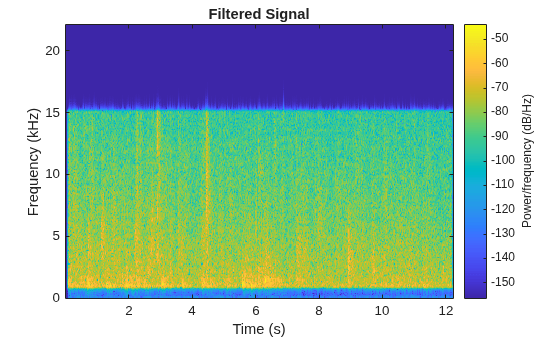

Call read to return the bandpass filtered audio from the transform datastore. Call read to return the bandpass filtered audio from the original datastore. Plot the spectrograms to visualize the difference.

[audio1,info1] = read(ADS);
[audio2,info2] = read(ADSnew);

spectrogram(audio1,hann(512),256,512,info1.SampleRate,'yaxis')
title('Original Signal')

spectrogram(audio2,hann(512),256,512,info2.SampleRate,'yaxis')
title('Filtered Signal')

Input Arguments

ADS — Audio datastore

audioDatastore object

Audio datastore, specified as an audioDatastore object.

@fcn — Function that transforms data

function handle

Function that transforms data, specified as a function handle. The signature of the function depends on the IncludeInfo parameter.

• If IncludeInfo is set to false (default), the function transforms the audio output from read. The info output from read is unaltered.



  The transform function must have this signature:

  function dataOut = fcn(audio)
  ...
  end

• If IncludeInfo is set to true, the function transforms the audio output from read, and can use or modify the information returned from read.



  The transform function must have this signature:

  function [dataOut,infoOut] = fcn(audio,infoIn)
  ...
  end

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: 'IncludeInfo',tf

IncludeInfo — Pass info through customized read function

false (default) | true

Pass info through the customized read function, specified as true or false. If true, the transform function can use or modify the information it gets from read. If unspecified, IncludeInfo defaults to false.

Data Types: logical

Output Arguments

transformDatastore — New datastore with customized read

TransformedDatastore

New datastore with customized read, returned as a TransformedDatastore with UnderlyingDatastore set to ADS, Transforms set to fcn, and IncludeInfo set to true or false.

Version History

Introduced in R2019a
