# Model Infinite Ground Plane for Unbalanced Antennas

This example shows how to model an infinite ground plane and calculate fundamental antenna parameters for unbalanced antennas.

### Create Antenna on Infinite Ground Plane

Create a patch microstrip antenna on a ground plane of infinite length.

`p = patchMicrostrip(GroundPlaneLength=inf)`
```p = patchMicrostrip with properties: Length: 0.0750 Width: 0.0375 Height: 0.0060 Substrate: [1x1 dielectric] GroundPlaneLength: Inf GroundPlaneWidth: 0.0750 PatchCenterOffset: [0 0] FeedOffset: [-0.0187 0] Conductor: [1x1 metal] Tilt: 0 TiltAxis: [1 0 0] Load: [1x1 lumpedElement] ```

### View Antenna Geometry

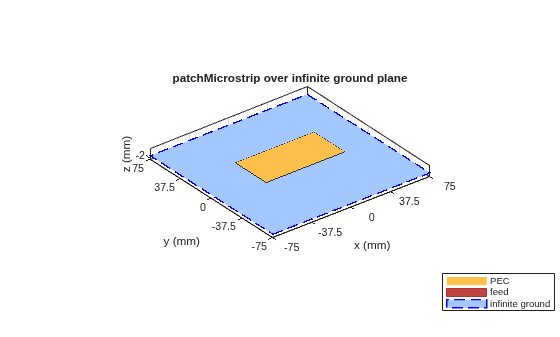

View the microstrip patch antenna with infinite ground plane.

```figure show(p);```

### Calculate Impedance of Antenna

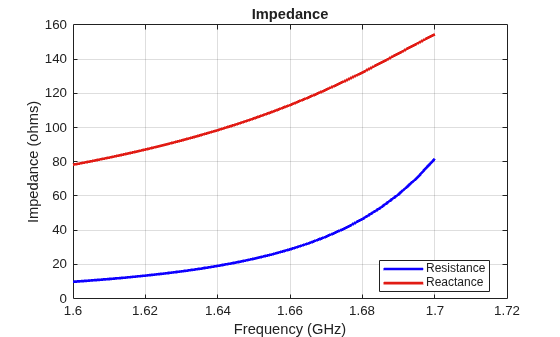

Calculate the impedance of the antenna over a frequency range of 1.60GHz to 1.70GHz.

```figure impedance(p,1.60e9:5e6:1.70e9);```

### Plot Radiation Pattern of Antenna

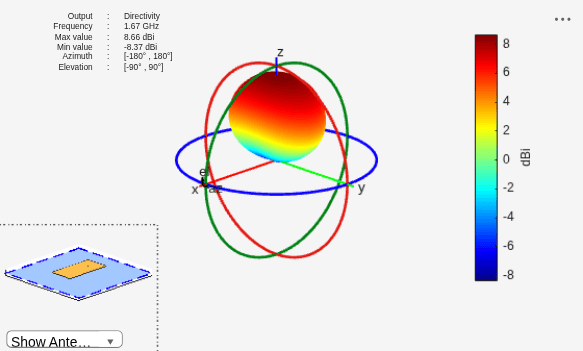

Plot the radiation pattern of the antenna at a frequency of 1.67 GHz.

```figure pattern(p,1.67e9);```

### Visualize Antenna Mesh

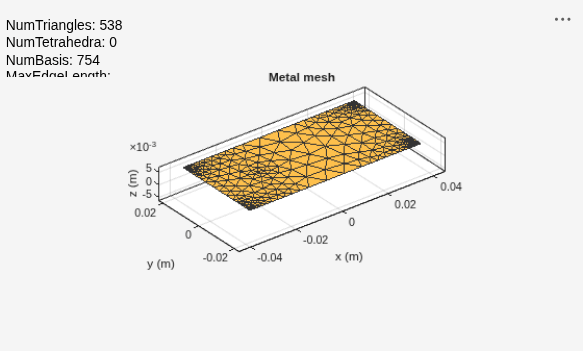

View the meshed microstrip patch antenna.

```figure mesh(p);```
