# Miniaturize Rectangular Microstrip Patch Antenna Using Genetic Algorithm Optimization

This example shows how to miniaturize a rectangular microstrip patch antenna by using a genetic algorithm for topology optimization. In this example, you divide the rectangular patch into small equal sized patches. Based on GA optimization values, you remove some patches to reduce the resonance frequency [1,2].

### Create Microstrip Patch Antenna at 4.9 GHz

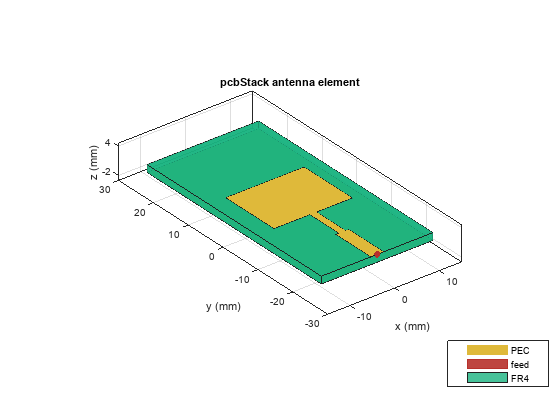

Specify the feed, substrate, ground plane, and patch dimensions. Define the feed location. Create the microstrip patch antenna of size 17.58-by-13.85 mm on FR4 substrate with thickness of 1.6 mm and a stepped microstrip feed to resonate around 4.9 GHz. using `pcbStack`.

```% Stepped feed parameters inputs.f2Width = 8.34e-3; inputs.f1Width = 10e-3; inputs.f2Length = 1.5e-3; inputs.f1Length = 2.87e-3; % Substrate parameters inputs.height = 1.6e-3; inputs.Subs = dielectric("FR4"); inputs.Subs.Thickness = inputs.height; % Ground plane parameters inputs.groundPlaneLength = 25e-3; inputs.groundPlaneWidth = 50e-3; % Create the feed strip f1 = antenna.Rectangle(Length=inputs.f1Length, Width=inputs.f1Width, Center=[0, -inputs.groundPlaneWidth/2+inputs.f1Width/2]); f2 = antenna.Rectangle(Length=inputs.f2Length, Width=inputs.f2Width, Center=[0, -inputs.groundPlaneWidth/2+inputs.f1Width+inputs.f2Width/2]); inputs.feedArea = f1 + f2; % Feed location inputs.feedLocation = [0, -inputs.groundPlaneWidth/2, inputs.height]; % Create the ground plane inputs.ground = antenna.Rectangle(Length=inputs.groundPlaneLength, Width=inputs.groundPlaneWidth, Center=[0 0]); % Patch parameters inputs.patchLength = 17.58e-3; inputs.patchWidth = 13.85e-3; patchRect5GHz = antenna.Rectangle(Length=inputs.patchLength, Width=inputs.patchWidth, ... Center=[0, -inputs.groundPlaneWidth/2+inputs.f1Width+inputs.f2Width+inputs.patchWidth/2]); finalPatch5GHz = inputs.feedArea + patchRect5GHz; antAt5GHz = pcbStack(Layers={finalPatch5GHz, inputs.Subs inputs.ground}, BoardThickness=inputs.height, ... BoardShape=inputs.ground, FeedLocations=[inputs.feedLocation(1:2), 1, 3]); figure show(antAt5GHz);```

```figure rfplot(sparameters(antAt5GHz,linspace(1.5e9,5.5e9,100)));```

### Optimize Antenna Using Genetic Algorithm

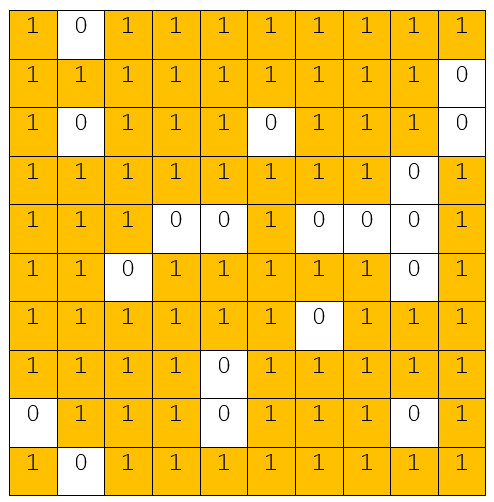

Apply the material distributive approach topology optimization by using a genetic algorithm to reduce the resonance frequency of the patch antenna. In GA optimization, you first create an initial population. At each iteration, the algorithm uses the individuals in the current generation to create the next population and evolve toward an optimized solution. For more information on the genetic algorithm, see How the Genetic Algorithm Works (Global Optimization Toolbox). For this example, create an initial population with each individuals having 100 patches. Each patch has a value of 0, which indicates the absence of a conductor, or 1, which indicates the presence of a conductor, as shown in this figure:

At each iteration, the algorithm generates the antenna based on design variables, computes S-parameters, and evaluates the objective function to obtain the population with the best cost value. The iterations continue until an optimized design is obtained.

#### Create Unit Pixel Patches

Create 100 small rectangular patches of size 1.758-by-1.385 mm each.

```inputs.rows = 10; inputs.cols = 10; inputs.patchLength = 17.58e-3; inputs.patchWidth = 13.85e-3; inputs.unitPatches = cell(inputs.rows, inputs.cols); inputs.unitPatchLength = inputs.patchLength/inputs.cols; inputs.unitPatchWidth = (inputs.patchWidth/inputs.rows); inputs.unitPatchCenters = []; inputs.overlapWidth = 0.2e-3;% lo: Small margin to keep connection intact inputs.commCenterX = -inputs.patchLength/2; inputs.commCenterY = -inputs.groundPlaneWidth/2+inputs.f1Width+inputs.f2Width; for i = 1:inputs.rows for j = 1:inputs.cols % Define pixels inputs.unitPatches{i, j} = antenna.Rectangle(Length=inputs.unitPatchLength+inputs.overlapWidth/2, ... Width=inputs.unitPatchWidth+inputs.overlapWidth/2, ... Center=[(i-1)*inputs.unitPatchLength+inputs.unitPatchLength/2+inputs.commCenterX (j-1)*inputs.unitPatchWidth+inputs.unitPatchWidth/2+inputs.commCenterY]); inputs.unitPatchCenters = [inputs.unitPatchCenters; inputs.unitPatches{i, j}.Center]; end end```

#### Define Objective Function

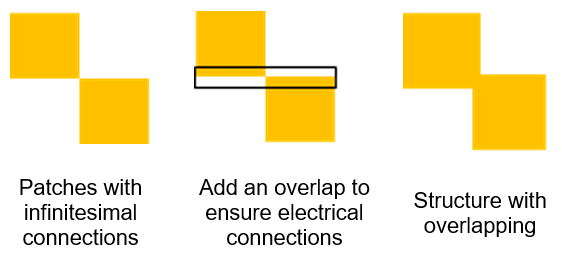

Create the radiating patch by adding the small patch when its design variable value is 1. When two diagonally adjacent patches have a value of$\left[\begin{array}{cc}0& 1\\ 1& 0\end{array}\right]$ or $\left[\begin{array}{cc}1& 0\\ 0& 1\end{array}\right]$, their connection at the corner is too infinitesimal to ensure the electrical connectivity. To avoid this problem, specify that such patches overlap by 0.2 mm.

Next, define the objective function. The objective function is given by:

`$\mathrm{cost}=\left\{\begin{array}{ll}|{\mathit{S}}_{11}\left({\mathit{f}}_{\mathit{i}}\right)|\mathrm{exp}\left(-20|\frac{{\mathit{f}}_{\mathrm{res}\text{\hspace{0.17em}}}-{\mathit{f}}_{\mathit{d}}}{{\mathit{f}}_{\mathit{d}}}|\right),& {\mathit{f}}_{\mathit{d}}-ϵ<{\mathit{f}}_{\mathit{i}}<{\mathit{f}}_{\mathit{d}}+ϵ\\ |\frac{1}{\mathit{N}}\sum _{\mathit{i}=1}^{\mathit{N}}{\mathit{S}}_{11}\left(\mathit{i}\right)|& \mathrm{otherwise}\end{array}$`

${\mathit{f}}_{\mathit{i}}$ is the Sampling frequency, $\mathit{N}\text{\hspace{0.17em}}$is the total number of sampling points, ${\mathit{f}}_{\mathit{d}}$ is the desired frequency, ${\mathit{f}}_{\mathrm{res}}$ is the individual resonance frequency, ${\mathit{S}}_{\mathrm{11}}$ is the S-parameters of the antenna at resonance frequency, and $ϵ$ is 0.1.

```function val = objectiveFunction(inputs, designVector) %objectiveFunction evaluates the main goal of optimization and passes the %output back to the optimizer for each iteration. % Reshape the input from optimizer into a 10 X 10 matrix designVector = reshape(designVector, 10, 10); designVector(5:6,1) = 1; patchNew = copy(inputs.feedArea); % Add pixels in the patch top layer when value is 1 for i = 1:inputs.rows for j = 1:inputs.cols if designVector(i, j) == 1 patchNew = patchNew + inputs.unitPatches{i, j}; end end end % Add overlap when [1 0;0 1] or [0 1; 1 0] for i = 1:inputs.rows-1 for j = 1:inputs.cols-1 dV4 = designVector(i:i+1,j:j+1); if all(all(dV4 == [1 0;0 1])) || all(all(dV4 ==[0 1;1 0])) overlap = antenna.Rectangle(Length=2*inputs.unitPatchLength,Width=inputs.overlapWidth,... Center=[i*inputs.unitPatchLength+inputs.commCenterX, j*inputs.unitPatchWidth+inputs.commCenterY]); patchNew = patchNew + overlap; end end end % Create pcbStack ant = pcbStack(Layers={patchNew, inputs.Subs inputs.ground}, BoardThickness=inputs.height, ... BoardShape=inputs.ground, FeedLocations=[inputs.feedLocation(1:2), 1, 3]); % Objective function N = 10; % Total sampling points fd = 2.16e9; % Desired frequency epsilon = 0.1e9; % Upper - Lower margin f = linspace(fd-epsilon, fd+epsilon, N); % Sampling frequency s = sparameters(ant, f); S11 = rfparam(s,1,1); % S11(dB) parameter at resonance frequency cost = 0; for i = 1:N fres = f(i); % The individual resonance frequency cost = cost + abs(S11(i))*exp(-20*abs((fres-fd)/fd)); end val = cost; end```

#### GA Optimization` `

Use the `ga` (Global Optimization Toolbox) function to apply genetic algorithm optimization. Specify options for the function by using `optimoptions`. At each iteration:

- Plot best value of the objective function.

- Set the `UseParallel` flag to true (requires a Parallel Computing Toolbox™ license).

- Pass the objective function to the `ga` function with 100 design variables, the bounds [0,1], and the options structure.

The objective function that `ga` uses is given in the `objectiveFunction` method.

```figure % Optimization Options options = optimoptions('ga',UseParallel=true,PlotFcn='gaplotbestf'); [x, fval, exitflag, output, population, scores] = ... ga(@(inputMat)objectiveFunction(inputs, inputMat), ... inputs.rows*inputs.cols, ... % Number of design variables [], [], [], [], ... % No linear constraints input zeros(1, inputs.rows*inputs.cols), ... % lower bound 1.*ones(1, inputs.rows*inputs.cols), ... % upper bound [], ... % No nonlinear constraints 1:inputs.rows*inputs.cols, ... % Integer constraint options); % options```
```Starting parallel pool (parpool) using the 'Processes' profile ... Connected to parallel pool with 8 workers. ga stopped because the average change in the penalty function value is less than options.FunctionTolerance and the constraint violation is less than options.ConstraintTolerance. ```

#### Optimized Antenna

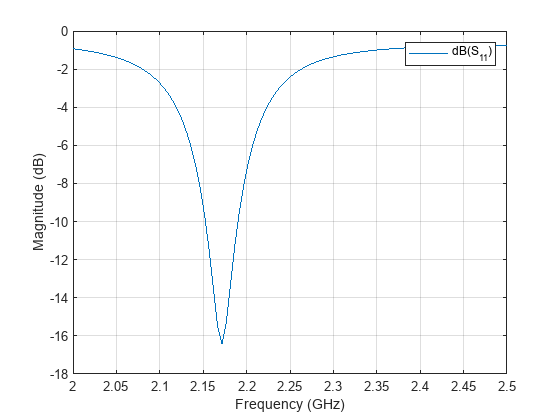

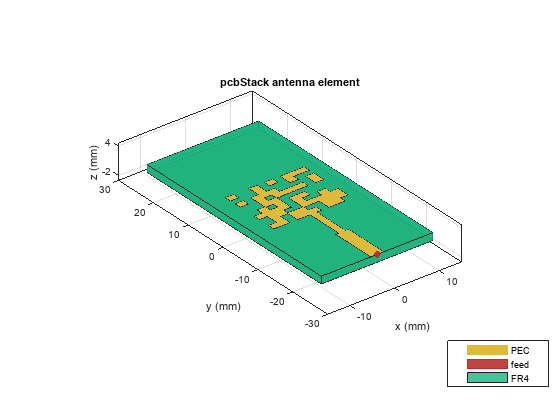

Create the optimized radiating patch by adding the small patches when `ga` output variable `x` is 1 with the overlap. Use `pcbStack` to create the optimized antenna, compute S-parameters, and observe the resonant frequency (which is around 2.16 GHz). Each run of this example leads to a new antenna structure, however the results remain same. Approximate execution time to obtain the optimized antenna is about 14 hours on a Windows® CPU @ 3.19 GHz system with 48 GB of RAM and 8 parallel workers.

```designVector = x; designVector = reshape(designVector, 10, 10); designVector(5:6,1) = 1; patchNew = copy(inputs.feedArea); % Add pixels in the patch top layer when value = 1 for i = 1:inputs.rows for j = 1:inputs.cols if designVector(i, j) == 1 patchNew = patchNew + inputs.unitPatches{i, j}; end end end % Add overlap when [1 0;0 1] or [0 1; 1 0] for i = 1:inputs.rows-1 for j = 1:inputs.cols-1 dV4 = designVector(i:i+1,j:j+1); if all(all(dV4 == [1 0;0 1])) || all(all(dV4 ==[0 1;1 0])) overlap = antenna.Rectangle(Length=2*inputs.unitPatchLength,Width=inputs.overlapWidth,... Center=[i*inputs.unitPatchLength+inputs.commCenterX, j*inputs.unitPatchWidth+inputs.commCenterY]); patchNew = patchNew + overlap; end end end % Create the pcbStack optimizedAnt = pcbStack(Layers={patchNew, inputs.Subs inputs.ground},BoardThickness=inputs.height, ... BoardShape=inputs.ground, FeedLocations=[inputs.feedLocation(1:2), 1, 3]); figure show(optimizedAnt);```

```sparams = sparameters(optimizedAnt,linspace(2e9,2.5e9,100)); figure rfplot(sparams);```

### Create Conventional Microstrip Patch Antenna at 2.16 GHz

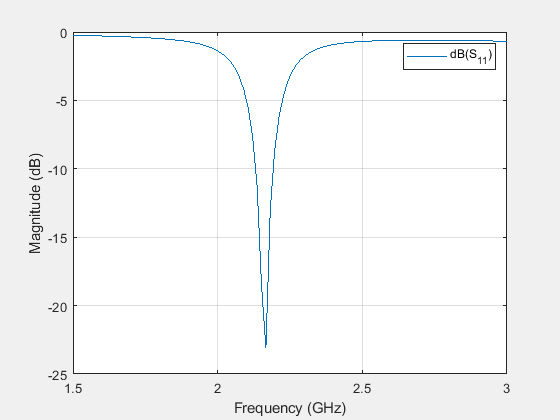

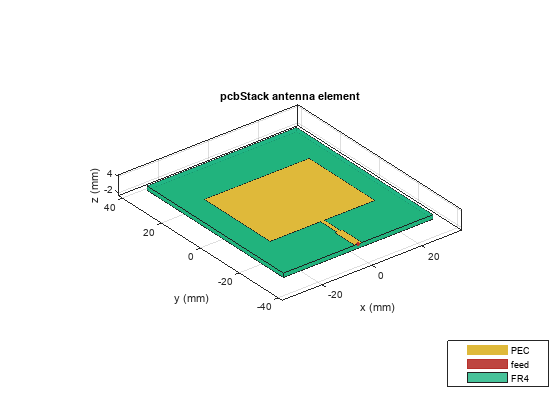

Create a microstrip antenna of size 42-by-3.7 mm on an FR4 substrate with the thickness of 1.6 mm and a stepped microstrip feed to resonate around 2.16 GHz.

```% Ground plane parameters inputs.groundPlaneLength = 60e-3; inputs.groundPlaneWidth = 70e-3; % Feed location inputs.feedLocation = [0, -inputs.groundPlaneWidth/2, inputs.height]; % Create the feed strip f1 = antenna.Rectangle(Length=inputs.f1Length, ... Width=inputs.f1Width, ... Center=[0, -inputs.groundPlaneWidth/2+inputs.f1Width/2]); f2 = antenna.Rectangle(Length=inputs.f2Length, ... Width=inputs.f2Width, ... Center=[0, -inputs.groundPlaneWidth/2+inputs.f1Width+inputs.f2Width/2]); inputs.feedArea = f1 + f2; % Create the ground plane inputs.ground = antenna.Rectangle(Length=inputs.groundPlaneLength, ... Width=inputs.groundPlaneWidth,Center=[0 0]); patchRect2GHz = antenna.Rectangle(Length=42e-3,Width=33.7e-3,Center=[0, -inputs.groundPlaneWidth/2+inputs.f1Width+inputs.f2Width+33.7e-3/2]); finalPatch2GHz = inputs.feedArea + patchRect2GHz; antAt2GHz = pcbStack(Layers={finalPatch2GHz, inputs.Subs inputs.ground}, ... BoardThickness=inputs.height, ... BoardShape=inputs.ground, ... FeedLocations=[inputs.feedLocation(1:2), 1, 3]); figure show(antAt2GHz);```

```figure rfplot(sparameters(antAt2GHz,linspace(1.5e9,3e9,100)));```

### Compare Optimized Antenna with Conventional Antenna

Compare the sizes of optimized and conventional microstrip antennas by plotting the patches side-by-side. Compared to the conventional microstrip antenna, the optimized microstrip antenna shows a patch size reduction of 82.79%.

```fig = figure; show(antAt2GHz.Layers{1}); hold on translate(optimizedAnt.Layers{1},[35e-3 0 0]); % Add annotation annotation(fig,textbox=[0.17 0.16 0.16 0.094],String={'Conventional Antenna'},EdgeColor=[1 1 1]); annotation(fig,textbox=[0.60 0.2 0.25 0.064],String={'Optimized Antenna'},EdgeColor=[1 1 1]);```

### References

[1] Herscovici, N., M.F. Osorio, and C. Peixeiro. “Miniaturization of Rectangular Microstrip Patches Using Genetic Algorithms.” IEEE Antennas and Wireless Propagation Letters 1 (2002): 94–97. https://doi.org/10.1109/LAWP.2002.805128.

[2] Lamsalli, Mohammed, Abdelouahab El Hamichi, Mohamed Boussouis, Naima Amar Touhami, and Tajeddin Elhamadi. “Genetic Algorithm Optimization for Microstrip Patch Antenna Miniaturization.” Progress In Electromagnetics Research Letters 60 (2016): 113–20. https://doi.org/10.2528/PIERL16041907.
