findLobes
Main, back, and side lobe data
Description
Examples
Find Main, Back, and Side Lobes
Create a dipole antenna and calculate its directivity at 270 MHz.
d = dipole; D = pattern(d,270e6,0,0:1:360);
Create a polar plot of the dipole directivity. Find the main, back, and side lobes of the dipole antenna.
p = polarpattern(D);
L = findLobes(p)
L = struct with fields:
mainLobe: [1x1 struct]
backLobe: [1x1 struct]
sideLobes: [1x1 struct]
FB: 0.0170
SLL: 0
HPBW: 30.9141
FNBW: 89.7507
FBIdx: [216 35.5000]
SLLIdx: [216 326]
HPBWIdx: [202 233]
HPBWAng: [200.4432 231.3573]
FNBWIdx: [181 271]
Inspect main, back, and side lobe data.
MainLobe = L.mainLobe
MainLobe = struct with fields:
index: 216
magnitude: 3.6699
angle: 214.4044
extent: [181 271]
BackLobe = L.backLobe
BackLobe = struct with fields:
magnitude: 3.6529
angle: 34.4044
extent: [361 91]
index: 35.5000
SideLobe = L.sideLobes
SideLobe = struct with fields:
index: 326
magnitude: 3.6699
angle: 324.0997
extent: [2x2 double]
Find Lobes in Two Data Sets
Create a helix antenna that has a 28 mm radius, a 1.2 mm width, and 4 turns. Calculate and plot the directivity of the antenna at 1.8 GHz.
hx = helix(Radius=28e-3, Width=1.2e-3, Turns=4); H = pattern(hx,1.8e9,0,0:1:360); P = polarpattern(H);
Create a dipole antenna and calculate the directivity at 270 MHz.
d = dipole; D = pattern(d,270e6,0,0:1:360);
Add the directivity of the dipole to the existing polar plot.

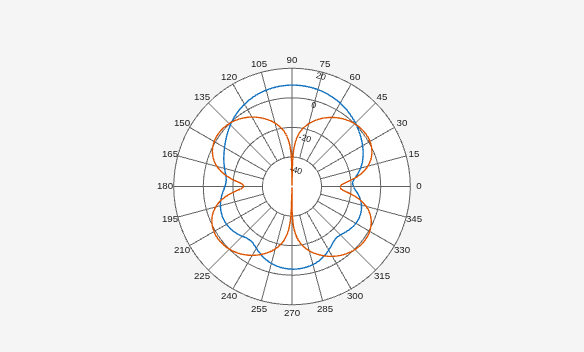

add(P,D);
Find the main, back, and side lobes of helix antenna.
L = findLobes(P,1)
L = struct with fields:
mainLobe: [1x1 struct]
backLobe: [1x1 struct]
sideLobes: [1x1 struct]
FB: 11.1386
SLL: 11.0829
HPBW: 56.8421
FNBW: 172.5208
FBIdx: [90 270.5000]
SLLIdx: [90 273]
HPBWIdx: [61 118]
HPBWAng: [59.8338 116.6759]
FNBWIdx: [4 177]
Input Arguments
p
— Polar plot
polarpattern
object
Polar plot, specified as a polarpattern
object. Set the
CleanData property of polarpattern
to
1
to clean the pattern data by removing any
NaN
and Inf
values before running
findLobes
function on the data.
Example: polarpattern
index
— Index of data set
scalar
Index of data set, specified as a scalar.
Example: 1
Output Arguments
L
— Main,back, and side lobe data
structure
Main,back, and side lobe data, returned as a structure.
Data Types: struct
Version History
Introduced in R2016a
See Also
add
| addCursor
| animate
| createLabels
| replace
| showPeaksTable
| showSpan
