Mirror shape along y-axis

Since R2022a



mirrorY(shape) mirrors a shape along the y-axis.


mirroredshape = mirrorY(shape) stores the mirrored shape in a shape object.


collapse all

Create a Dumbell shaped patch by performing operations on a circular and a rectangular shape.

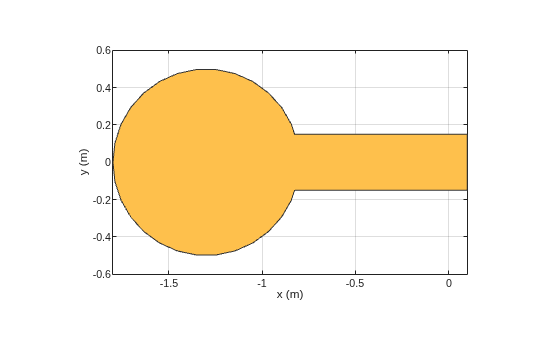

Create patch shape and view it

Use antenna.Circle and antenna.Rectangle to create a patch shape and view it.

c1 = antenna.Circle(Center=[-1.3 0],Radius=0.5);
c2 = antenna.Rectangle(Center=[-0.4 0],Length=1,Width=0.3);
cm = c1 + c2;

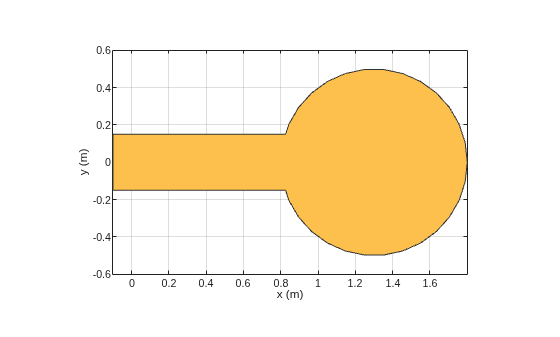

Mirror the shape along y-axis

Use mirrorY to create a mirror image of the shape along y-axis and view it.

cmm = mirrorY(cm);

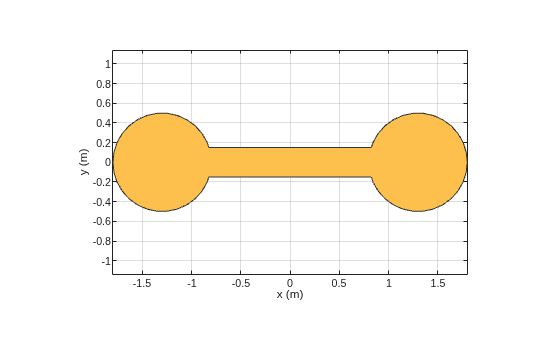

Add both shapes to create Dumbell shape

Add the original shape and its mirror image along y-axis to create a Dumbell shape and view it.

c3 = c1 + c2 + cmm;

Input Arguments

collapse all

Shape to mirror, specified as antenna.Shape object. You can specify rectangular, circular, elliptical, triangular, or polygon shape.

Example: antenna.Polygon

Complex Number Support: Yes

Output Arguments

collapse all

Mirrored shape stored as an antenna.Shape object.

Version History

Introduced in R2022a
