NR FDD Scheduling Performance Evaluation

This example models scheduling of downlink (DL) and uplink (UL) resources and measures network performance in frequency division duplexing (FDD) mode. The example includes three different scheduling strategies and also shows how to integrate a custom scheduler. To evaluate the network performance with different data traffic patterns, the example also models the radio link control layer in unacknowledged mode (RLC-UM) with logical channel prioritization (LCP) procedure. To model PHY, a probability-based passthrough physical (PHY) layer without any signal processing is used. You can switch to the 5G Toolbox™ PHY layer for high fidelity modeling. The performance of the scheduling strategy is evaluated in terms of the achieved throughput and fairness in resource sharing.

Introduction

This example shows how a scheduling strategy (controlled by the gNB) assigns UL and DL resources among the UEs. The example considers the following operations within the gNB and UEs that facilitate UL and DL transmissions and receptions.

The complete PUSCH or PDSCH packet is transmitted in the first symbol of its allocated symbol set. Receiver processes the packet in the symbol just after the last symbol in the allocated symbol set.

The schedulers (UL and DL) run every p slots to assign the UL and DL resources, where p is the configured periodicity of the scheduler. In each run, the number of slots scheduled is equal to the periodicity of scheduler run, p.

UL Scheduler

The first slot, among the p slots to be scheduled in a run, is the nearest upcoming slot which satisfies the PUSCH preparation time capability of UEs. For example, the figure shows the way scheduler selects the slots during two consecutive runs. It assumes scheduler periodicity (p) as 3 slots. Hence, the scheduler runs after every 3 slots, and schedules resources for 3 slots. PUSCH preparation time capability for all the UEs is assumed as greater than 1 slot (14 symbols) but less than 2 slots (28 symbols).

  • Run-1: When scheduler runs at the start of Slot-A, it schedules 3 slots starting from Slot-C, because for Slot-A and Slot-B the UEs do not get enough PUSCH preparation time (UEs gets a time of 0 symbols at start of Slot-A and 14 symbols at start of Slot-B). For Slot-C, UEs get 28 symbols for PUSCH preparation and this satisfies the PUSCH preparation time capability. Hence, Slot-C, D, and E are scheduled in this run.

  • Run-2: When scheduler runs at the start of Slot-D, it schedules the next 3 contiguous slots starting from Slot-F (Slot-F, G, and H).

DL Scheduler

The first slot, among the p slots to be scheduled in a run, is the immediate next slot.

  • Run-1: When scheduler runs at the start of Slot-A, it schedules 3 contiguous slots Slot-B, C, and D.

  • Run-2: When scheduler runs at the start of Slot-D, it schedules 3 contiguous slots Slot-E, F, and G.

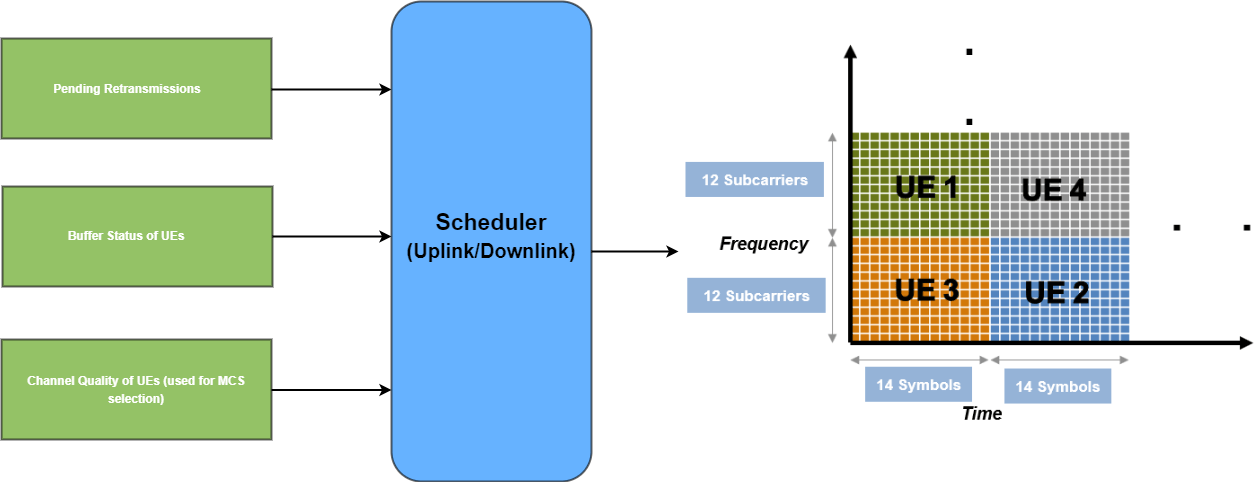

You can choose any one of the implemented scheduling strategies: proportional fair (PF), best CQI, or round robin (RR). The various supported inputs to the UL scheduler are listed along with the scheduling strategies that consider them.

The control packets required are assumed to be sent out of band without the need of resources for transmission. The control packets are UL assignment, DL assignment, buffer status report (BSR), and PDSCH feedback.

The demodulation reference signal (DM-RS) is not modeled in this example. However, one symbol is kept unused for it in the PUSCH and PDSCH assignments.

This example models:

  • Slot based and symbol based DL and UL scheduling.

  • Noncontiguous allocation of frequency-domain resources in terms of resource block groups (RBGs).

  • Configurable subcarrier spacing resulting in different slot durations.

  • Asynchronous adaptive hybrid automatic repeat request (HARQ) mechanism in UL and DL.

  • Multiple logical channels to support different kind of applications.

  • Logical channel prioritization (LCP) to distribute the received assignment among logical channels per UE for UL and DL.

Scenario Configuration

Set the parameters for simulation.

rng('default'); % Reset the random number generator
simParameters = []; % Clear the simulation parameters
simParameters.NumFramesSim = 100; % Simulation time in terms of number of 10 ms frames
simParameters.SchedulingType = 0; % Set the value to 0 (slot based scheduling) or 1 (symbol based scheduling)
% Number of UEs in the simulation. UEs are assumed to have sequential radio
% network temporary identifiers (RNTIs) from 1 to NumUEs. If you change the
% number of UEs, ensure that the length of simParameters.UEDistance is equal to NumUEs
simParameters.NumUEs = 4;
simParameters.UEDistance = [100 250 700 750]; % Distance of UEs from gNB (in meters)

% Set the channel bandwidth to 30 MHz and subcarrier spacing (SCS) to 15
% kHz as defined in 3GPP TS 38.104 Section 5.3.2. The complete UL and
% DL bandwidth is assumed to be allotted for PUSCH and PDSCH. The
% UL and DL carriers are assumed to have symmetric channel
% bandwidth
simParameters.DLBandwidth = 30e6; % Hz
simParameters.ULBandwidth = 30e6; % Hz
simParameters.NumRBs = 160;
simParameters.SCS = 15; % kHz
simParameters.DLCarrierFreq = 2.635e9; % Hz
simParameters.ULCarrierFreq = 2.515e9; % Hz

% Configure parameters to update UL channel quality at gNB and DL
% channel quality at gNB and UE. Channel conditions are periodically
% improved or deteriorated by CQIDelta every channelUpdatePeriodicity
% seconds for all RBs of a UE. Whether channel conditions for a particular
% UE improve or deteriorate is randomly determined
% RBCQI = RBCQI +/- CQIDelta
simParameters.ChannelUpdatePeriodicity = 0.2; % In sec
simParameters.CQIDelta = 2;
% Mapping between distance from gNB (first column in meters) and maximum
% achievable UL CQI value (second column). For example, if a UE is 700
% meters away from the gNB, it can achieve a maximum CQI value of 10 as the
% distance falls within the [501, 800] meters range, as per the mapping.
% Set the distance in increasing order and the maximum achievable CQI value in
% decreasing order
simParameters.CQIvsDistance = [
    200  15;
    500  12;
    800  10;
    1000  8;
    1200  7];

simParameters.BSRPeriodicity = 5; % In ms
simParameters.EnableHARQ = true; % Flag to enable or disable HARQ. If disabled, there are no retransmissions
simParameters.NumHARQ = 16; % Number of HARQ processes

% Set the scheduler run periodicity in terms of number of slots. Value must
% be less than the number of slots in a 10 ms frame
simParameters.SchedulerPeriodicity = 4;
simParameters.SchedulerStrategy = 'PF'; % Supported scheduling strategies: 'PF', 'RR' and 'BestCQI'
% Moving average parameter within the range [0, 1] to calculate average
% data rate for a UE in UL and DL directions. This value is used in
% the PF scheduling strategy. Parameter value closer to 1 implies more
% weight on the instantaneous data rate. Parameter value closer to 0
% implies more weight on the past data rate
% AverageDataRate = ((1 - MovingAvgDataRateWeight) * PastDataRate) + (MovingAvgDataRateWeight * InstantaneousDataRate)
simParameters.MovingAvgDataRateWeight = 0.5;
% gNB ensures that PUSCH assignment is received at UEs PUSCHPrepTime ahead
% of the transmission time
simParameters.PUSCHPrepTime = 200; % In microseconds
% Maximum RBs allotted to a UE in a slot for the UL and DL
% transmission (limit is applicable for new PUSCH and PDSCH assignments and
% not for the retransmissions)
simParameters.RBAllocationLimitUL = 100; % For PUSCH
simParameters.RBAllocationLimitDL = 100; % For PDSCH

Load the logical channel configuration table. Each row in the table represents one logical channel and has these properties as columns.

  • RNTI - Radio network temporary identifier of the UE.

  • LogicalChannelID - Logical channel identifier.

  • LCGID - Logical channel group identifier.

  • SeqNumFieldLength - Defines the sequence number field length. It takes either 6 or 12.

  • MaxTxBufferSDUs - Maximum Tx buffer size (in terms of number of packets).

  • ReassemblyTimer - Defines the reassembly timer (in ms).

  • EntityType - Defines the RLC entity type. It takes values 0, 1, and 2, which indicates whether the RLC UM entity is unidirectional DL, unidirectional UL, or bidirectional UM, respectively.

  • Priority - Priority of the logical channel.

  • PBR - Prioritized bit rate (in kilo bytes per second).

  • BSD - Bucket size duration (in ms).

load('NRFDDRLCChannelConfig.mat')
simParameters.RLCChannelConfig = RLCChannelConfig;

Load the application configuration table containing these fields. Each row in the table represents one application and has these properties as columns.

  • PacketInterval - Interval between two consecutive packet generations (in ms).

  • PacketSize - Size of the packet (in bytes).

  • HostDevice - Defines the device (UE or gNB) on which the application is installed with the specified configuration. The device takes values 0, 1, or 2. The values indicate the application is configured on gNB side, UE side, or both UE and gNB respectively.

  • RNTI - Radio network temporary identifier of a UE. This identifies the UE for which the application is installed.

  • LCID - Logical channel identifier.

load('NRFDDAppConfig.mat');
simParameters.AppConfig = AppConfig;

Logging and Visualization Configuration

% The parameters CQIVisualization and RBVisualization control the display
% of these visualizations: (i) CQI visualization of RBs (ii) RB assignment
% visualization. By default, these plots are disabled. You can enable them
% by setting to 'true'
simParameters.CQIVisualization = false;
simParameters.RBVisualization = false;
% The output metrics plots are updated periodically NumMetricsSteps times within the
% simulation duration
simParameters.NumMetricsSteps = 20;
% MAT-files to write the logs into. They are used for post simulation analysis and visualization
simParameters.ParametersLogFile = 'simParameters'; % For logging the simulation parameters
simParameters.SimulationLogFile = 'simulationLogs'; % For logging the simulation logs

% Validate the simulation configuration
hNRSchedulingFDDValidateConfig(simParameters);

Derived Parameters

Based on the primary configuration parameters, compute the derived parameters. Additionally, set some example specific constants.

simParameters.DuplexMode = 0; % FDD
% Size of sub-band for CQI reporting in terms of number of RBs (Only used
% when 5G Toolbox™ PHY layer processing is enabled)
simParameters.SubbandSize = 16;
simParameters.NumCells = 1; % Number of cells
simParameters.NCellID = 1; % Physical cell ID
simParameters.GNBPosition = [0 0 0]; % Position of gNB in (x,y,z) coordinates
% Slot duration for the selected SCS and number of slots in a 10 ms frame
slotDuration = 1/(simParameters.SCS/15); % In ms
numSlotsFrame = 10/slotDuration; % Number of slots in a 10 ms frame
numSlotsSim = simParameters.NumFramesSim * numSlotsFrame; % Number of slots in the simulation

% Calculate maximum achievable CQI value for the UEs based on their distance from
% the gNB
maxUECQIs = zeros(simParameters.NumUEs, 1); % To store the maximum achievable CQI value for UEs
for ueIdx = 1:simParameters.NumUEs
    % Based on the distance of the UE from gNB, find matching row in
    % CQIvsDistance mapping
    matchingRowIdx = find(simParameters.CQIvsDistance(:, 1) > simParameters.UEDistance(ueIdx));
    if isempty(matchingRowIdx)
        maxUECQIs(ueIdx) = simParameters.CQIvsDistance(end, 2);
    else
        maxUECQIs(ueIdx) = simParameters.CQIvsDistance(matchingRowIdx(1), 2);
    end
end

% Interval at which metrics visualization updates in terms of number of
% slots. As one slot is the finest time-granularity of the simulation, make
% sure that MetricsStepSize is an integer
simParameters.MetricsStepSize = ceil(numSlotsSim / simParameters.NumMetricsSteps);
if mod(numSlotsSim, simParameters.NumMetricsSteps) ~= 0
    % Update the NumMetricsSteps parameter if NumSlotsSim is not
    % completely divisible by it
    simParameters.NumMetricsSteps = floor(numSlotsSim / simParameters.MetricsStepSize);
end

% Define initial UL and DL channel quality as an N-by-P matrix,
% where 'N' is the number of UEs and 'P' is the number of RBs in the carrier
% bandwidth. The initial value of CQI for each RB, for each UE, is given
% randomly and is limited by the maximum achievable CQI value corresponding
% to the distance of the UE from gNB
simParameters.InitialChannelQualityUL = zeros(simParameters.NumUEs, simParameters.NumRBs); % To store current UL CQI values on the RBs for different UEs
simParameters.InitialChannelQualityDL = zeros(simParameters.NumUEs, simParameters.NumRBs); % To store current DL CQI values on the RBs for different UEs
for ueIdx = 1:simParameters.NumUEs
    % Assign random CQI values for the RBs, limited by the maximum achievable CQI value
    simParameters.InitialChannelQualityUL(ueIdx, :) = randi([1 maxUECQIs(ueIdx)], 1, simParameters.NumRBs);
    % Initially, DL and UL CQI values are assumed to be equal
    simParameters.InitialChannelQualityDL(ueIdx, :) = simParameters.InitialChannelQualityUL(ueIdx, :);
end

% To store the logical channel information associated per UE
lchInfo = repmat(struct('RNTI', [], 'LCID', [], 'EntityDir', []), [simParameters.NumUEs 1]);
for ueIdx = 1:simParameters.NumUEs
    lchInfo(ueIdx).RNTI = ueIdx;
    lchInfo(ueIdx).LCID = simParameters.RLCChannelConfig.LogicalChannelID(simParameters.AppConfig.RNTI == ueIdx);
    lchInfo(ueIdx).EntityDir = simParameters.RLCChannelConfig.EntityType(simParameters.AppConfig.RNTI == ueIdx);
end

if ~isfield(simParameters, 'SchedulingType') || simParameters.SchedulingType == 0 % If no scheduling type is specified or slot based scheduling is specified
    rbAssignmentPlotPeriodicity = numSlotsFrame; % Update RB assignment visualization every frame (10 ms)
    tickGranularity = 14;
    simParameters.PUSCHMappingType = 'A';
    simParameters.PDSCHMappingType = 'A';
else % Symbol based scheduling
    rbAssignmentPlotPeriodicity = 1; % Update RB assignment visualization every slot
    tickGranularity = 1;
    simParameters.PUSCHMappingType = 'B';
    simParameters.PDSCHMappingType = 'B';
end

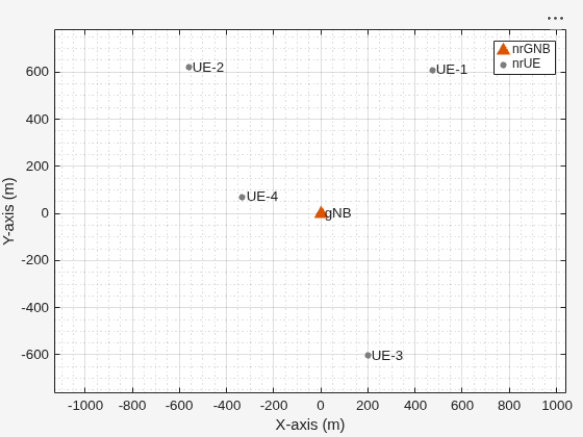

gNB and UEs Setup

Create the gNB and UE objects, initialize the channel quality information for UEs, and set up the logical channel at gNB and UE. The helper classes hNRGNB.m and hNRUE.m create gNB and UE nodes respectively, containing the RLC and medium access control (MAC) layers. For MAC layer, hNRGNB.m uses the helper class hNRGNBMAC.m to implement the gNB MAC functionality and hNRUE.m uses hNRUEMAC.m to implement the UE MAC functionality. Schedulers are implemented in hNRSchedulerRoundRobin.m (RR), hNRSchedulerProportionalFair.m (PF), hNRSchedulerBestCQI.m (Best CQI). All the schedulers inherit from the base class hNRScheduler.m which contains the core scheduling functionality. For RLC layer, both hNRGNB.m and hNRUE.m use hNRUMEntity.m to implement the functionality of the RLC transmitter and receiver. Passthrough PHY layer for UE and gNB is implemented in hNRUEPassThroughPhy.m and hNRGNBPassThroughPhy.m, respectively.

simParameters.Position = simParameters.GNBPosition;
gNB = hNRGNB(simParameters); % Create gNB node

% Create and add scheduler
switch(simParameters.SchedulerStrategy)
    case 'RR' % Round robin scheduler
        scheduler = hNRSchedulerRoundRobin(simParameters);
    case 'PF' % Proportional fair scheduler
        scheduler = hNRSchedulerProportionalFair(simParameters);
    case 'BestCQI' % Best CQI scheduler
        scheduler = hNRSchedulerBestCQI(simParameters);
end
addScheduler(gNB, scheduler); % Add scheduler to gNB

gNB.PhyEntity = hNRGNBPassThroughPhy(simParameters); % Add passthrough PHY
configurePhy(gNB, simParameters);
setPhyInterface(gNB); % Set the interface to PHY layer

% Create the set of UE nodes
UEs = cell(simParameters.NumUEs, 1);
for ueIdx=1:simParameters.NumUEs
    simParameters.Position = [simParameters.UEDistance(ueIdx) 0 0]; % Position of UE
    UEs{ueIdx} = hNRUE(simParameters, ueIdx);
    UEs{ueIdx}.PhyEntity = hNRUEPassThroughPhy(simParameters, ueIdx); % Add passthrough PHY
    configurePhy(UEs{ueIdx}, simParameters);
    setPhyInterface(UEs{ueIdx}); % Set the interface to PHY layer

    % Initialize the UL CQI values at gNB
    updateChannelQuality(gNB, simParameters.InitialChannelQualityUL(ueIdx, :), 1, ueIdx); % 1 for UL
    % Initialize the DL CQI values at gNB and UE. The DL CQI values
    % help gNB in scheduling, and UE in packet error probability estimation
    updateChannelQuality(gNB, simParameters.InitialChannelQualityDL(ueIdx, :), 0, ueIdx); % 0 for DL
    updateChannelQuality(UEs{ueIdx}, simParameters.InitialChannelQualityDL(ueIdx, :));
end

% Setup logical channels
for lchInfoIdx = 1:size(simParameters.RLCChannelConfig, 1)
    rlcChannelConfigStruct = table2struct(simParameters.RLCChannelConfig(lchInfoIdx, :));
    ueIdx = simParameters.RLCChannelConfig.RNTI(lchInfoIdx);
    % Setup the logical channel at gNB and UE
    gNB.configureLogicalChannel(ueIdx, rlcChannelConfigStruct);
    UEs{ueIdx}.configureLogicalChannel(ueIdx, rlcChannelConfigStruct);
end

% Add data traffic pattern generators to gNB and UE nodes
for appIdx = 1:size(simParameters.AppConfig, 1)
    device = simParameters.AppConfig.HostDevice(appIdx);
    rnti = simParameters.AppConfig.RNTI(appIdx);
    lcid = simParameters.AppConfig.LCID(appIdx);
    packetSize = simParameters.AppConfig.PacketSize(appIdx);
    packetInterval = simParameters.AppConfig.PacketInterval(appIdx);
    % Calculate the data rate (in kbps) of On-Off traffic pattern using
    % packet size (in bytes) and packet interval (in ms)
    dataRate = ceil(1000/packetInterval) * packetSize * 8e-3;
    % Limit the size of the generated application packet to the maximum RLC
    % SDU size. The maximum supported RLC SDU size is 9000 bytes
    if packetSize > 9000
        packetSize = 9000;
    end
    % Create an object for On-Off network traffic pattern and add it to the
    % specified UE. This object generates the uplink data traffic on the UE
    if device == 1 || device == 2
        ulApp = networkTrafficOnOff('PacketSize', packetSize, 'GeneratePacket', true, ...
            'OnTime', simParameters.NumFramesSim/100, 'OffTime', 0, 'DataRate', dataRate);
        UEs{rnti}.addApplication(rnti, lcid, ulApp);
    end
    % Create an object for On-Off network traffic pattern for the specified
    % UE and add it to the gNB. This object generates the downlink data
    % traffic on the gNB for the UE
    if device == 0 || device == 2
        dlApp = networkTrafficOnOff('PacketSize', packetSize, 'GeneratePacket', true, ...
            'OnTime', simParameters.NumFramesSim/100, 'OffTime', 0, 'DataRate', dataRate);
        gNB.addApplication(rnti, lcid, dlApp);
    end
end

% Setup the UL and DL packet distribution mechanism
simParameters.MaxReceivers = simParameters.NumUEs;
% Create DL packet distribution object
dlPacketDistributionObj = hNRPacketDistribution(simParameters, 0); % 0 for DL
% Create UL packet distribution object
ulPacketDistributionObj = hNRPacketDistribution(simParameters, 1); % 1 for UL
hNRSetUpPacketDistribution(simParameters, gNB, UEs, dlPacketDistributionObj, ulPacketDistributionObj);

Processing Loop

Simulation is run slot by slot. In each slot, these operations are executed:

  • Run the MAC and PHY layers of gNB

  • Run the MAC and PHY layers of UEs

  • Layer specific logging and visualization

  • Advance the timer for the nodes. Every 1 ms it also sends trigger to application and RLC layers. Application layer and RLC layer execute their scheduled operations based on 1 ms timer trigger.

% Create an object for MAC (UL & DL) scheduling information visualization and logging
simSchedulingLogger = hNRSchedulingLogger(simParameters);

% Create RLC statistics logging object
simRLCLogger = hNRRLCLogger(simParameters, lchInfo);

% Create visualization object for RLC and MAC metrics
visualizer = hNRMetricsVisualizer(simParameters, 'RLCLogger', simRLCLogger, 'LCHInfo', lchInfo, 'MACLogger', simSchedulingLogger);

% Run processing loop
slotNum = 0;
numSymbolsSim = numSlotsSim * 14; % Simulation time in units of symbol duration
% Execute all the symbols in the simulation
for symbolNum = 1 : tickGranularity : numSymbolsSim
    if mod(symbolNum - 1, 14) == 0
        slotNum = slotNum + 1;
    end

    % Run MAC and PHY of gNB
    run(gNB);

    % Run MAC and PHY of UEs
    for ueIdx = 1:simParameters.NumUEs
        run(UEs{ueIdx});
    end

    % RLC logging (only at slot boundary)
    if (simParameters.SchedulingType == 1 && mod(symbolNum, 14) == 0) || (simParameters.SchedulingType == 0 && mod(symbolNum-1, 14) == 0)
        logCellRLCStats(simRLCLogger, gNB, UEs);
    end

    % MAC logging
    logCellSchedulingStats(simSchedulingLogger, symbolNum, gNB, UEs);

    % Visualization
    % Check slot boundary
    if symbolNum > 1 && ((simParameters.SchedulingType == 1 && mod(symbolNum, 14) == 0) || (simParameters.SchedulingType == 0 && mod(symbolNum-1, 14) == 0))
        % RB assignment visualization (if enabled)
        if simParameters.RBVisualization
            if mod(slotNum, rbAssignmentPlotPeriodicity) == 0
                % Plot at slot boundary, if the update periodicity is reached
                plotRBGrids(simSchedulingLogger);
            end
        end
        % CQI grid visualization (if enabled)
        if simParameters.CQIVisualization
            if mod(slotNum, numSlotsFrame) == 0 % Plot at frame boundary
                plotCQIRBGrids(simSchedulingLogger);
            end
        end
        % If the update periodicity is reached, plot RLC and scheduler metrics visualization
        % at slot boundary
        if mod(slotNum, simParameters.MetricsStepSize) == 0
            plotMetrics(visualizer, slotNum);
        end
    end

    % Advance timer ticks for gNB and UEs by 14 symbols
    advanceTimer(gNB, tickGranularity);
    for ueIdx = 1:simParameters.NumUEs
        advanceTimer(UEs{ueIdx}, tickGranularity);
    end
end

Simulation Visualization

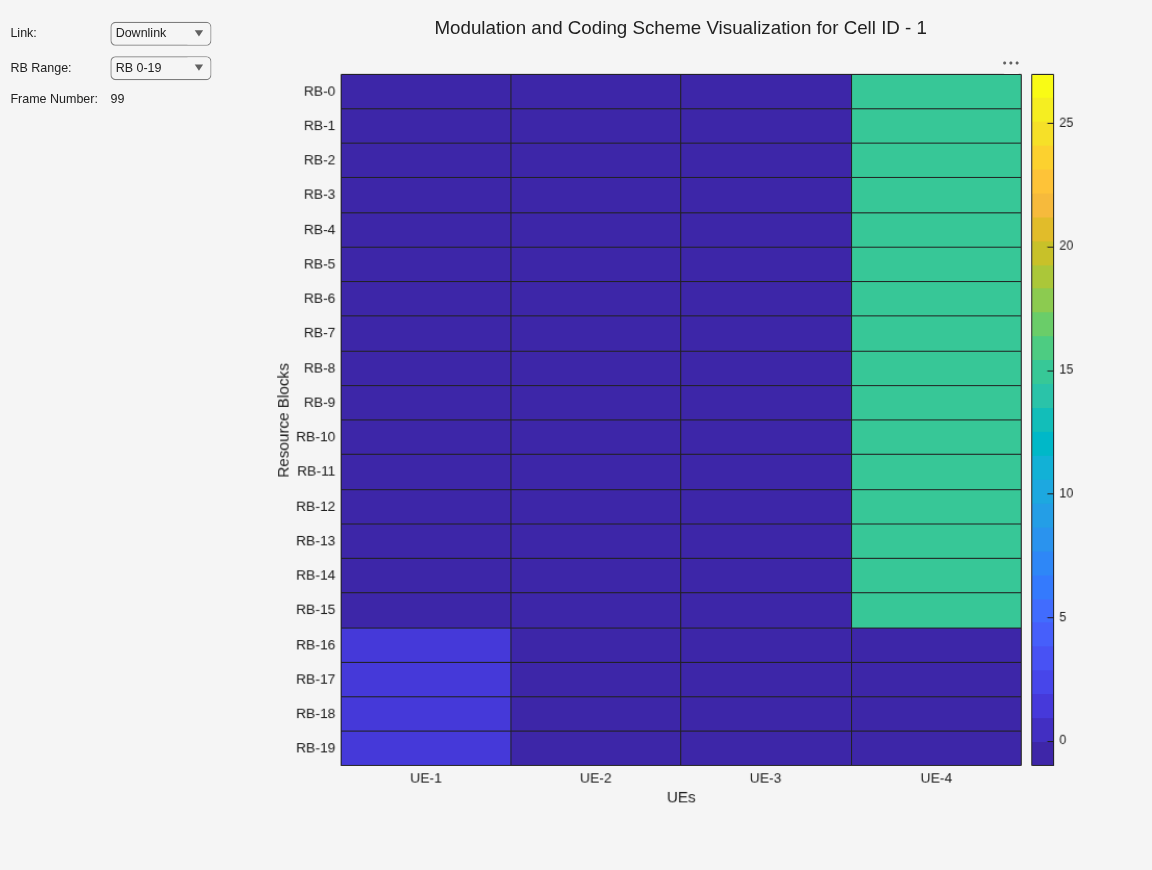

The five types of run-time visualization shown are:

  • Display of CQI values for UEs over the PUSCH and PDSCH bandwidth: You can enable this visualization in the Logging and Visualization Configuration section. For details, see the 'Channel Quality Visualization' figure description in NR PUSCH FDD Scheduling example.

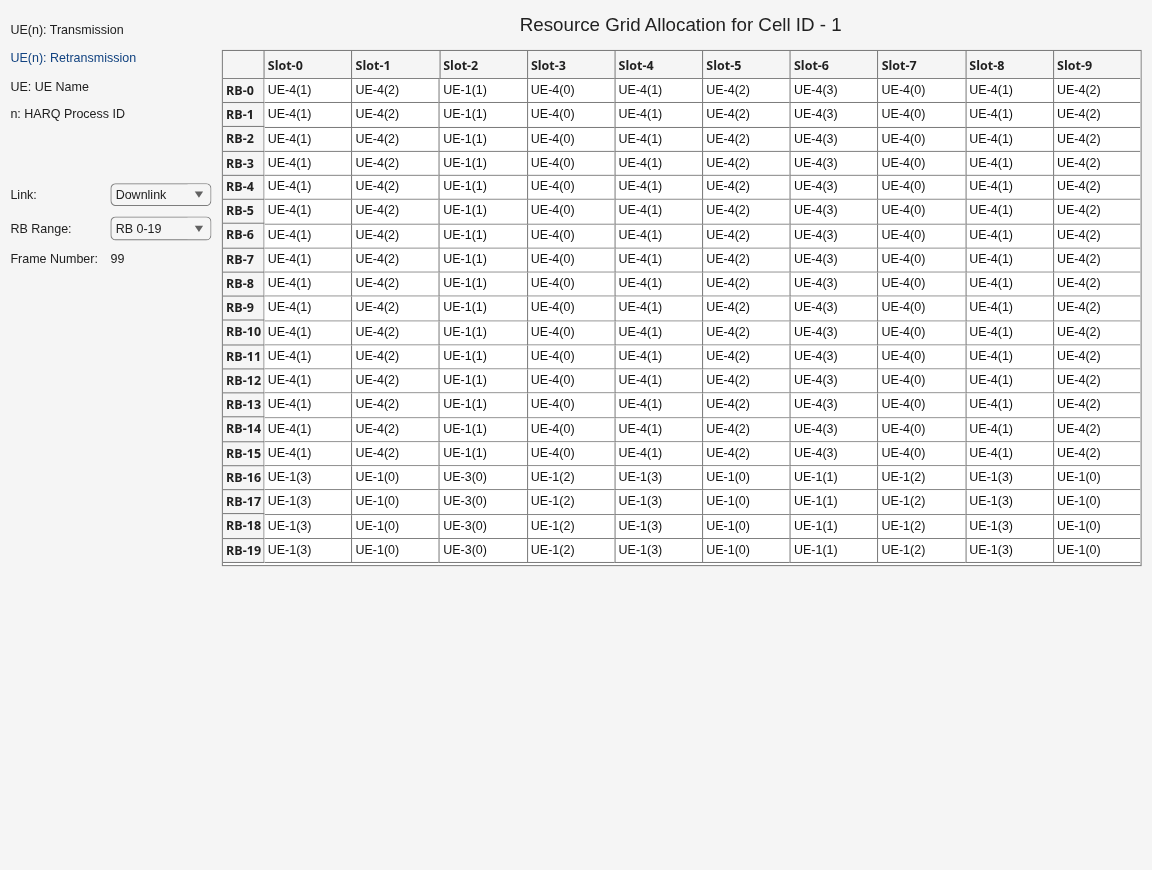

  • Display of resource grid assignment to UEs: The 2D time-frequency grid shows the resource allocation to the UEs. You can enable this visualization in the Logging and Visualization Configuration section. For details, see the 'Resource Grid Allocation' figure in NR PUSCH FDD Scheduling example.

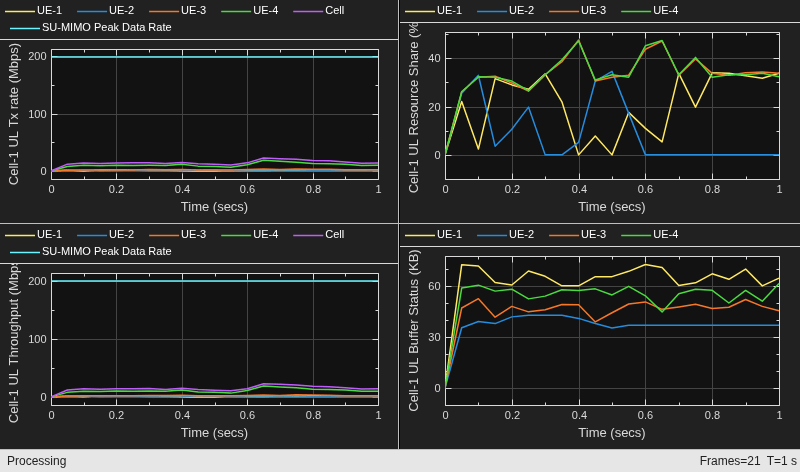

  • Display of UL scheduling metrics plots: The four plots displayed in 'Uplink Scheduler Performance Metrics' figure represent: UL throughput (per UE and cell), UL goodput (per UE and cell), resource share percentage among UEs (out of the total UL resources) to convey the fairness of scheduling, and pending UL buffer-status of UEs to show whether UEs are getting sufficient resources. The maximum achievable data rate value for UL throughput is shown with a dashed line in throughput and goodput plots. The performance metrics plots update for every metricsStepSize slots.

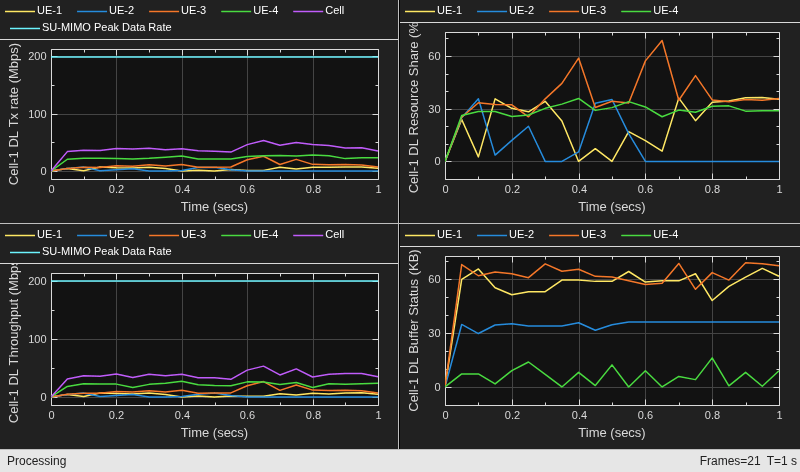

  • Display of DL scheduling metrics plots: Like UL metrics plots, 'Downlink Scheduler Performance Metrics' displays corresponding subplots for DL direction. The performance metrics plots update for every metricsStepSize slots.

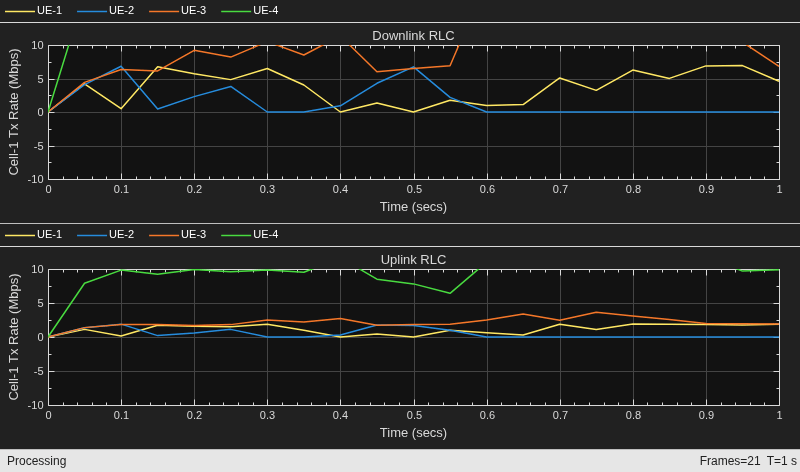

  • Display of RLC metrics plots: The 'RLC Metrics Visualization' figure shows the number of bytes transmitted by RLC layer (per logical channel) for each UE. The RLC metrics plot updates for every metricsStepSize slots.

Simulation Logs

The parameters used for simulation and the simulation logs are saved in MAT-files for post simulation analysis and visualization. The simulation parameters are saved in a MAT-file with the file name as the value of configuration parameter simParameters.ParametersLogFile. The per time step logs, scheduling assignment logs, and RLC logs are saved in the MAT-file simParameters.SimulationLogFile. After the simulation, open the file to load DLTimeStepLogs, ULTimeStepLogs SchedulingAssignmentLogs, and RLCLogs in the workspace.

Time step logs: Both the DL and UL time step logs follow the same format. For details of log format, see the 'Simulation Logs' section of NR PUSCH FDD Scheduling.

Scheduling assignment logs: Information of all the scheduling assignments and the related information is logged in this file. The table shows sample log entries.

RLC logs: For more information on the RLC log format, see NR PUSCH FDD Scheduling.

You can run the script NRPostSimVisualization to get a post simulation visualization of logs. In the post simulation script, you are provided with variable isLogReplay, which provides these options to visualize 'Resource Grid Allocation' and 'Channel Quality Visualization' figures.

  • Set isLogReplay to true for replay of simulation logs.

  • Set isLogReplay to false to analyze the details of a particular frame. In the 'Resource Grid Allocation' window, input the frame number to visualize the resource assignment for the entire frame. The frame number entered here controls the frame number for the 'Channel Quality Visualization' figure too.

% Get the logs
simulationLogs = cell(1,1);
logInfo = struct('DLTimeStepLogs',[], 'ULTimeStepLogs',[], 'SchedulingAssignmentLogs',[] ,'RLCLogs',[]);
[logInfo.DLTimeStepLogs, logInfo.ULTimeStepLogs] = getSchedulingLogs(simSchedulingLogger);
logInfo.SchedulingAssignmentLogs = getGrantLogs(simSchedulingLogger); % Scheduling assignments log
logInfo.RLCLogs = getRLCLogs(simRLCLogger);
simulationLogs{1} = logInfo;
save(simParameters.ParametersLogFile, 'simParameters'); % Save simulation parameters in a MAT-file
save(simParameters.SimulationLogFile, 'simulationLogs'); % Save simulation logs in a MAT-file

Further Exploration

You can use this example to further explore these options.

Custom scheduling

You can modify the existing scheduling strategy to implement a custom one. Peform following steps to accomplish this.

Create a custom scheduler class

Create a new class customStrategy.m and inherit from hNRScheduler.m. Implement the constructor of the class to call the base class constructor as shown below. See the constructor of hNRSchedulerRoundRobin.m, hNRSchedulerProportionalFair.m, hNRSchedulerBestCQI.m for more details.

function obj = customStrategy(param)
   obj = obj@hNRScheduler(simParameters); % Invoke the super class constructor to initialize the properties
   % Initialize any properties specific to this custom scheduling strategy
end

Implement custom UL scheduling

Override the scheduleULResourcesSlot function of the base class by implementing it in the class customStrategy.m. function.

function uplinkGrants = scheduleULResourcesSlot(obj, slotNum)
  % Implement custom UL scheduling to populate the output 'uplinkGrants'
end

First input obj is the custom scheduler object. By virtue of inheritance, it contains the context of base class hNRScheduler.m which can be used as input for taking scheduling decisions. Second input slotNum is the slot number in the 10 ms frame whose UL resources are getting scheduled. Note that it is not the current slot in which UL scheduler is running but the slot which is getting scheduled. Using the context in obj, do the custom scheduling and populate the output uplinkGrants of this function with an array of valid UL scheduling assignments. uplinkGrants can have maximum one assignment per UE. Each element in this array is PUSCH assignment for a UE. Also, update the context of UL HARQ processes as per the HARQ process ID assigned in the UL assignments. See the scheduleULResourcesSlot function in hNRScheduler.m for more details.

Implement custom DL scheduling

Follow the procedure like custom UL scheduling to override the scheduleDLResourcesSlot function of the base class by implementing it in the class customStrategy.m. function.

Create and install the custom scheduler

To use the custom scheduler in this example, create its object and install it on the gNB in the gNB and UEs Setup section.

scheduler = customScheduler(simParameters);
addScheduler(gNB, scheduler); % Add scheduler to gNB

Use 5G Toolbox™ physical layer

You can also switch from passthrough PHY layer to 5G Toolbox™ physical layer processing by creating PHY objects using hNRGNBPhy.m and hNRUEPhy.m. For more details, see 'gNB and UEs Setup' section of NR Cell Performance Evaluation with Physical Layer Integration.

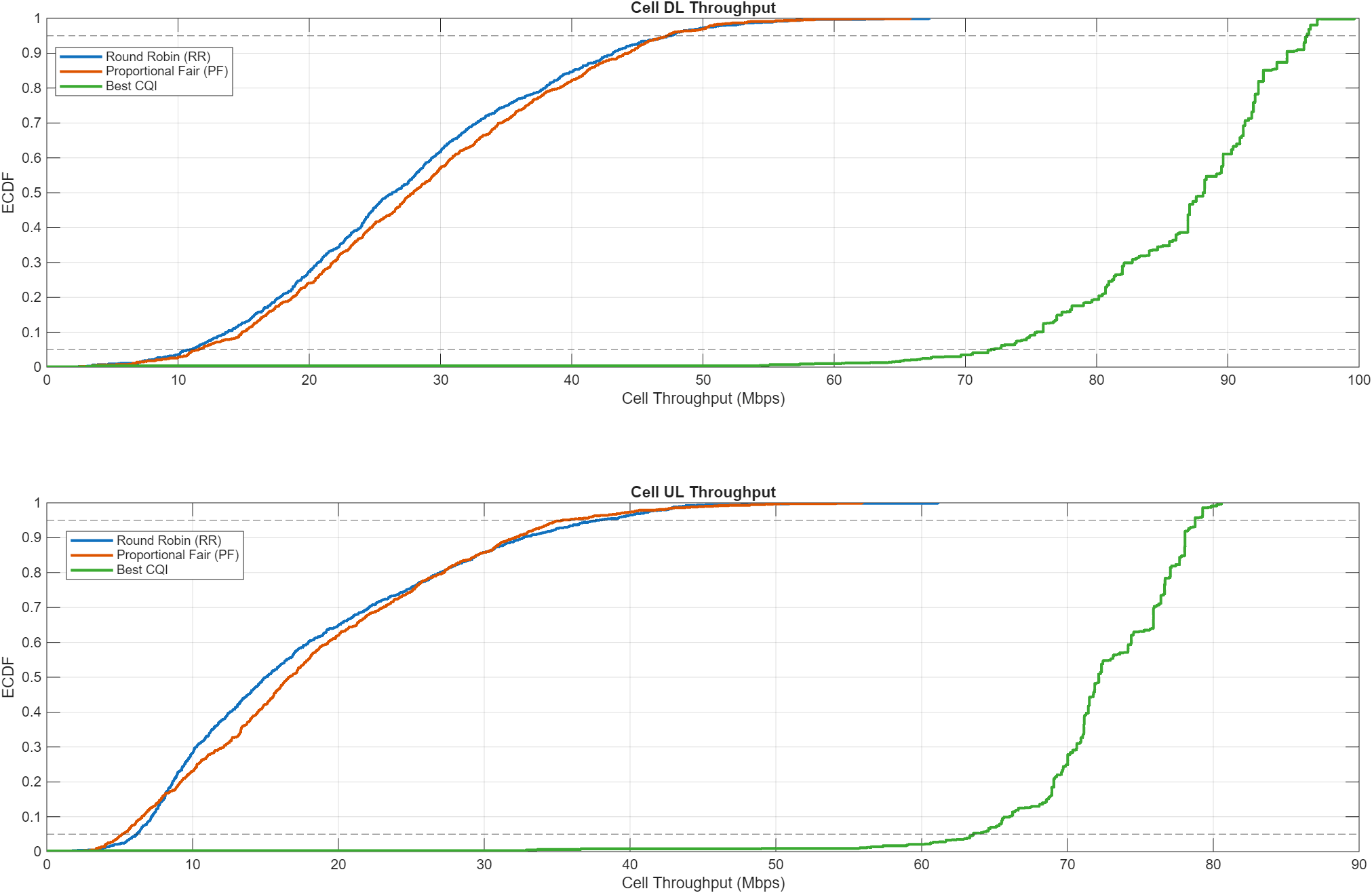

Based on the chosen scheduling strategy, this example shows the assignment of UL and DL resources to multiple UEs by the gNB. A run-time visualization display of the resource grid gives detailed information about the RBs allocated to each UE and the HARQ process ID assigned for transmission. UL and DL scheduling performance is analyzed based on run-time plots of throughput and goodput, resource share fairness, and pending buffer status on the UEs. A more thorough post simulation analysis by using the saved logs gives a detailed picture of the operations happening on a per slot basis.

Use RLC AM

You can also switch the operating mode of an RLC entity from UM to acknowledged mode (AM) by modifying the input structure fields EntityType and SeqNumFieldLength in the configureLogicalChannel function of hNRNode.m. Set the EntityType to 3 and SeqNumFieldLength to either 12 or 18. You can also add and set the following fields to the input structure to explore the RLC AM functionality:

  • PollRetransmitTimer: Timer used by the transmitting side of an RLC AM entity in order to retransmit a poll

  • PollPDU: Parameter used by the transmitting side of an RLC AM entity to trigger a poll based on number of PDUs

  • PollByte: Parameter used by the transmitting side of an RLC AM entity to trigger a poll based on number of SDU bytes

  • MaxRetransmissions: Maximum number of retransmissions corresponding to an RLC SDU, including its segments

  • StatusProhibitTimer: Timer used by the receiving side of an RLC AM entity in order to prohibit frequent transmission of status PDUs

Appendix

The example uses these helper functions and classes:

References

[1] 3GPP TS 38.104. “NR; Base Station (BS) radio transmission and reception.” 3rd Generation Partnership Project; Technical Specification Group Radio Access Network.

[2] 3GPP TS 38.214. “NR; Physical layer procedures for data.” 3rd Generation Partnership Project; Technical Specification Group Radio Access Network.

[3] 3GPP TS 38.321. “NR; Medium Access Control (MAC) protocol specification.” 3rd Generation Partnership Project; Technical Specification Group Radio Access Network.

[4] 3GPP TS 38.322. “NR; Radio Link Control (RLC) protocol specification.” 3rd Generation Partnership Project; Technical Specification Group Radio Access Network.

[5] 3GPP TS 38.331. “NR; Radio Resource Control (RRC) protocol specification.” 3rd Generation Partnership Project; Technical Specification Group Radio Access Network.

Related Topics
