RF Simulation
R2026b5G Toolbox™ enables you to characterize the impact of radio frequency (RF) impairments in NR transmitters and receivers.
Apps
| 5G Waveform Generator | Create, impair, visualize, and export 5G NR waveforms |
Functions
nrPhaseNoise | Add NR phase noise to signal (Since R2026a) |
Blocks
 | Waveform From Wireless Waveform Generator App | Wireless waveform source exported to Simulink |
Featured Examples

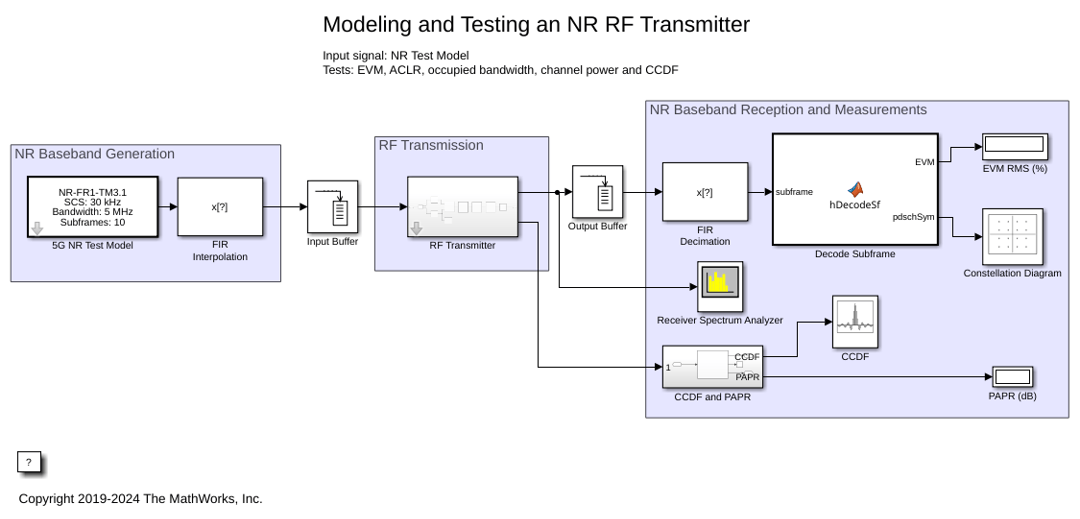

Modeling and Testing an NR RF Transmitter
Characterize the impact of RF impairments, such as IQ imbalance, phase noise, and PA nonlinearities in an NR RF transmitter.

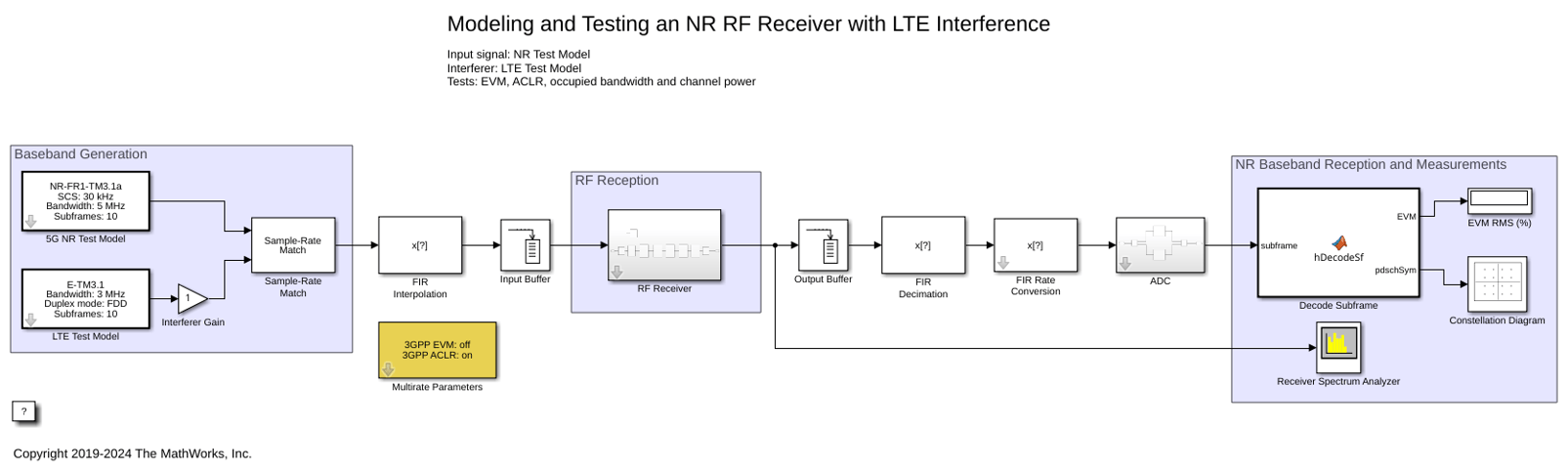

Modeling and Testing an NR RF Receiver with LTE Interference
Characterize the impact of RF impairments of NR-TM waveforms when coexisting with LTE waveforms.

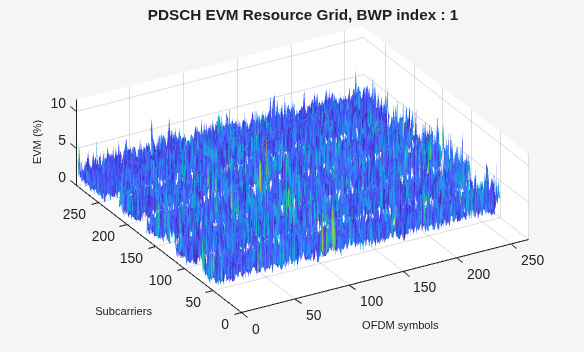

EVM Measurement of 5G NR Downlink Waveforms with RF Impairments
Measure EVM of NR-TM or NR-FRC waveforms with phase noise and memoryless nonlinearity impairments.
5G NR Downlink Carrier Aggregation, Demodulation, and Analysis
Generate, aggregate, and demodulate multiple 5G NR downlink carriers.
NR Phase Noise Modeling and Compensation
Analyze the impact of phase noise in a 5G OFDM system and use PT-RS in compensating the CPE.
Generate Wireless Waveform in Simulink Using App-Generated Block
Use the Export to Simulink capability of the Wireless Waveform Generator app to generate waveforms in Simulink.
