# plsregress

Partial least-squares regression

## Syntax

```[XL,YL] = plsregress(X,Y,ncomp) [XL,YL,XS] = plsregress(X,Y,ncomp) [XL,YL,XS,YS] = plsregress(X,Y,ncomp) [XL,YL,XS,YS,BETA] = plsregress(X,Y,ncomp,...) [XL,YL,XS,YS,BETA,PCTVAR] = plsregress(X,Y,ncomp) [XL,YL,XS,YS,BETA,PCTVAR,MSE] = plsregress(X,Y,ncomp) [XL,YL,XS,YS,BETA,PCTVAR,MSE] = plsregress(...,param1,val1,param2,val2,...) [XL,YL,XS,YS,BETA,PCTVAR,MSE,stats] = plsregress(X,Y,ncomp,...) ```

## Description

`[XL,YL] = plsregress(X,Y,ncomp)` computes a partial least-squares (PLS) regression of `Y` on `X`, using `ncomp` PLS components, and returns the predictor and response loadings in `XL` and `YL`, respectively. `X` is an n-by-p matrix of predictor variables, with rows corresponding to observations and columns to variables. `Y` is an n-by-m response matrix. `XL` is a p-by-`ncomp` matrix of predictor loadings, where each row contains coefficients that define a linear combination of PLS components that approximate the original predictor variables. `YL` is an m-by-`ncomp` matrix of response loadings, where each row contains coefficients that define a linear combination of PLS components that approximate the original response variables.

`[XL,YL,XS] = plsregress(X,Y,ncomp)` returns the predictor scores `XS`, that is, the PLS components that are linear combinations of the variables in `X`. `XS` is an n-by-`ncomp` orthonormal matrix with rows corresponding to observations and columns to components.

`[XL,YL,XS,YS] = plsregress(X,Y,ncomp)` returns the response scores `YS`, that is, the linear combinations of the responses with which the PLS components `XS` have maximum covariance. `YS` is an n-by-`ncomp` matrix with rows corresponding to observations and columns to components. `YS` is neither orthogonal nor normalized.

`plsregress` uses the SIMPLS algorithm, first centering `X` and `Y` by subtracting off column means to get centered variables `X0` and `Y0`. However, it does not rescale the columns. To perform PLS with standardized variables, use `zscore` to normalize `X` and `Y`.

If `ncomp` is omitted, its default value is `min(size(X,1)-1,size(X,2))`.

The relationships between the scores, loadings, and centered variables `X0` and `Y0` are:

`XL = (XS\X0)' = X0'*XS`,

`YL = (XS\Y0)' = Y0'*XS`,

`XL` and `YL` are the coefficients from regressing `X0` and `Y0` on `XS`, and `XS*XL'` and `XS*YL'` are the PLS approximations to `X0` and `Y0`.

`plsregress` initially computes `YS` as:

`YS = Y0*YL = Y0*Y0'*XS`,

By convention, however, `plsregress` then orthogonalizes each column of `YS` with respect to preceding columns of `XS`, so that `XS'*YS` is lower triangular.

`[XL,YL,XS,YS,BETA] = plsregress(X,Y,ncomp,...)` returns the PLS regression coefficients `BETA`. `BETA` is a (p+1)-by-m matrix, containing intercept terms in the first row:

`Y = [ones(n,1),X]*BETA + Yresiduals`,

`Y0 = X0*BETA(2:end,:) + Yresiduals`. Here `Yresiduals` is the vector of response residuals.

`[XL,YL,XS,YS,BETA,PCTVAR] = plsregress(X,Y,ncomp)` returns a 2-by-`ncomp` matrix `PCTVAR` containing the percentage of variance explained by the model. The first row of `PCTVAR` contains the percentage of variance explained in `X` by each PLS component, and the second row contains the percentage of variance explained in `Y`.

`[XL,YL,XS,YS,BETA,PCTVAR,MSE] = plsregress(X,Y,ncomp)` returns a 2-by-(`ncomp`+1) matrix `MSE` containing estimated mean-squared errors for PLS models with `0:ncomp` components. The first row of `MSE` contains mean-squared errors for the predictor variables in `X`, and the second row contains mean-squared errors for the response variable(s) in `Y`.

`[XL,YL,XS,YS,BETA,PCTVAR,MSE] = plsregress(...,param1,val1,param2,val2,...)` specifies optional parameter name/value pairs from the following table to control the calculation of `MSE`.

ParameterValue
`'cv'`

The method used to compute `MSE`.

• When the value is a positive integer `k`, `plsregress` uses `k`-fold cross-validation.

• When the value is an object of the `cvpartition` class, other forms of cross-validation can be specified.

• When the value is `'resubstitution'`, `plsregress` uses `X` and `Y` both to fit the model and to estimate the mean-squared errors, without cross-validation.

The default is `'resubstitution'`.

`'mcreps'`

A positive integer indicating the number of Monte-Carlo repetitions for cross-validation. The default value is `1`. The value must be `1` if the value of `'cv'` is `'resubstitution'`.

`options`

A structure that specifies whether to run in parallel, and specifies the random stream or streams. Create the `options` structure with `statset`. Option fields:

• `UseParallel` — Set to `true` to compute in parallel. Default is `false`.

• `UseSubstreams` — Set to `true` to compute in parallel in a reproducible fashion. Default is `false`. To compute reproducibly, set `Streams` to a type allowing substreams: `'mlfg6331_64'` or `'mrg32k3a'`.

• `Streams` — A `RandStream` object or cell array consisting of one such object. If you do not specify `Streams`, `plsregress` uses the default stream.

`[XL,YL,XS,YS,BETA,PCTVAR,MSE,stats] = plsregress(X,Y,ncomp,...)` returns a structure `stats` with the following fields:

• `W` — A p-by-`ncomp` matrix of PLS weights so that `XS = X0*W`.

• `T2` — The T2 statistic for each point in `XS`.

• `Xresiduals` — The predictor residuals, that is, `X0-XS*XL'`.

• `Yresiduals` — The response residuals, that is, `Y0-XS*YL'`.

## Examples

collapse all

Load data on near infrared (NIR) spectral intensities of 60 samples of gasoline at 401 wavelengths, and their octane ratings.

```load spectra X = NIR; y = octane; ```

Perform PLS regression with ten components.

```[XL,yl,XS,YS,beta,PCTVAR] = plsregress(X,y,10); ```

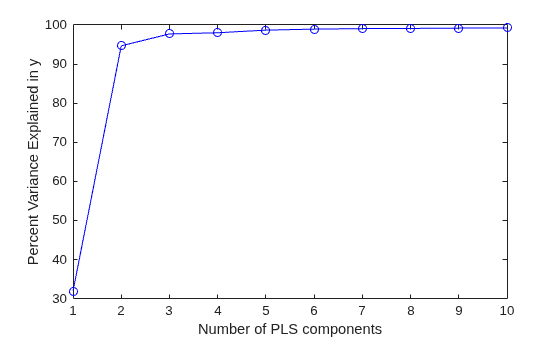

Plot the percent of variance explained in the response variable as a function of the number of components.

```plot(1:10,cumsum(100*PCTVAR(2,:)),'-bo'); xlabel('Number of PLS components'); ylabel('Percent Variance Explained in y'); ```

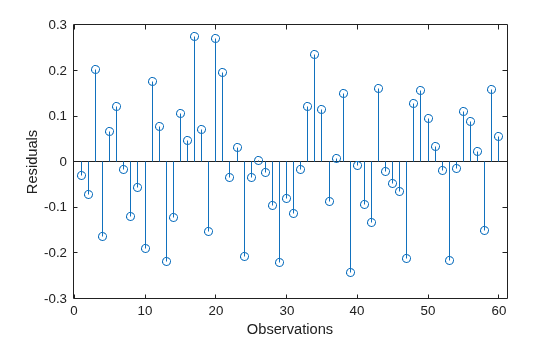

Compute the fitted response and display the residuals.

```yfit = [ones(size(X,1),1) X]*beta; residuals = y - yfit; stem(residuals) xlabel('Observation'); ylabel('Residual'); ```

## References

[1] de Jong, S. “SIMPLS: An Alternative Approach to Partial Least Squares Regression.” Chemometrics and Intelligent Laboratory Systems. Vol. 18, 1993, pp. 251–263.

[2] Rosipal, R., and N. Kramer. “Overview and Recent Advances in Partial Least Squares.” Subspace, Latent Structure and Feature Selection: Statistical and Optimization Perspectives Workshop (SLSFS 2005), Revised Selected Papers (Lecture Notes in Computer Science 3940). Berlin, Germany: Springer-Verlag, 2006, pp. 34–51.
