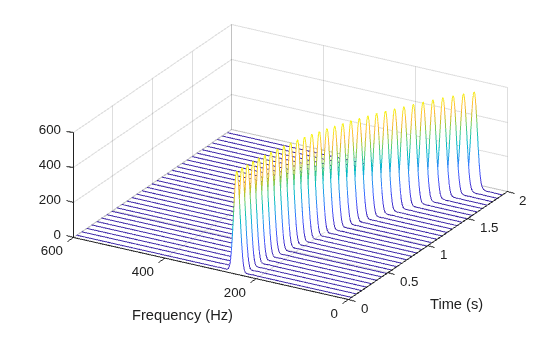

Spectrogram using short-time Fourier transform

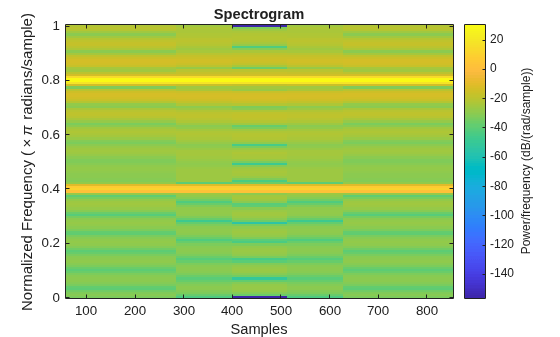

`s = spectrogram(x)`

`s = spectrogram(x,window)`

`s = spectrogram(x,window,noverlap)`

`s = spectrogram(x,window,noverlap,nfft)`

```
[s,w,t]
= spectrogram(___)
```

```
[s,f,t]
= spectrogram(___,fs)
```

```
[s,w,t]
= spectrogram(x,window,noverlap,w)
```

```
[s,f,t]
= spectrogram(x,window,noverlap,f,fs)
```

`[___,ps] = spectrogram(___)`

`[___] = spectrogram(___,'reassigned')`

```
[___,ps,fc,tc]
= spectrogram(___)
```

`[___] = spectrogram(___,freqrange)`

`[___] = spectrogram(___,spectrumtype)`

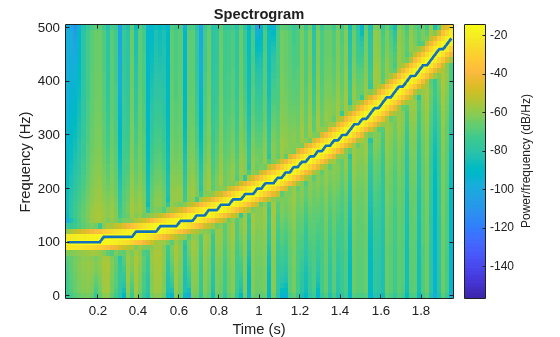

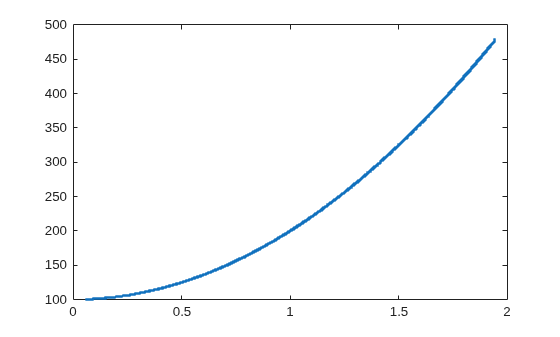

`[___] = spectrogram(___,'MinThreshold',thresh)`

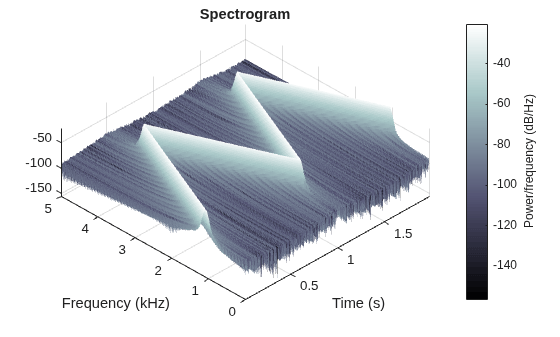

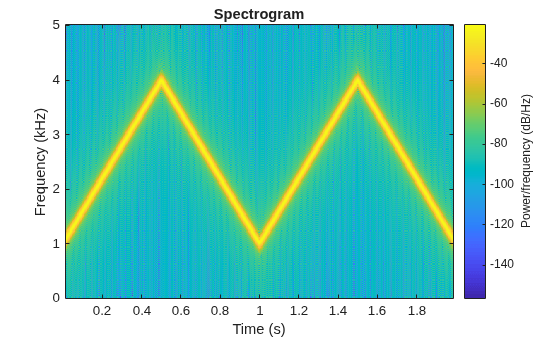

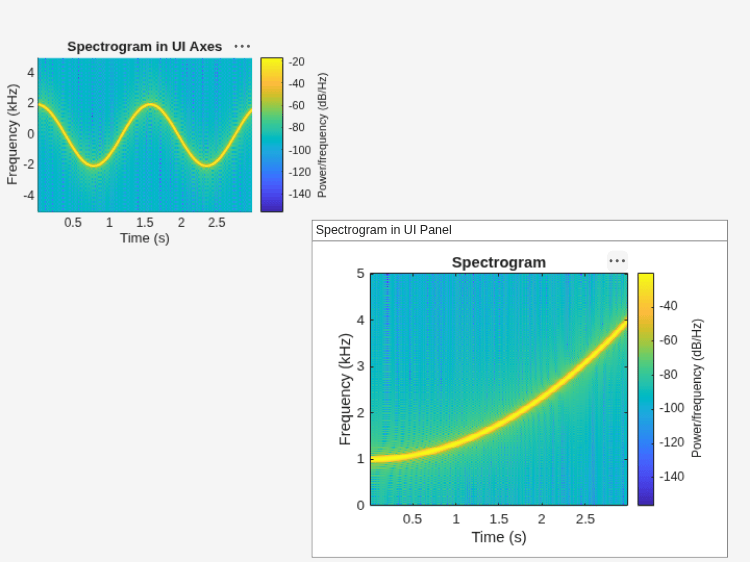

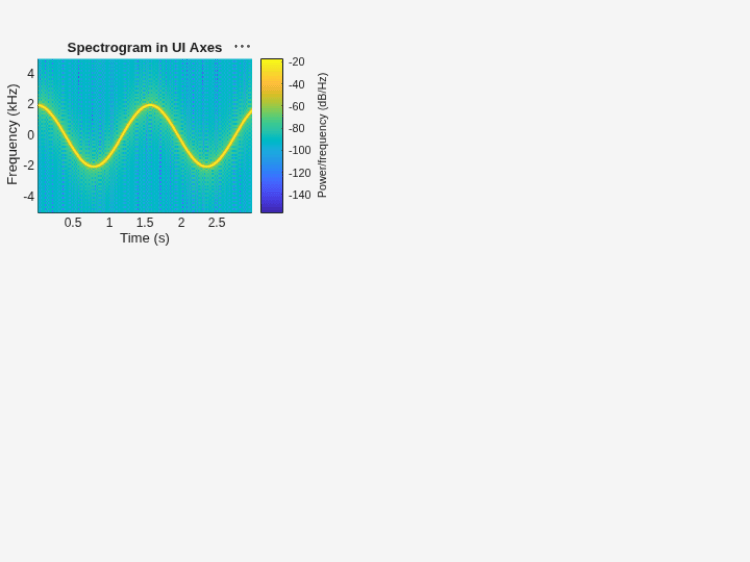

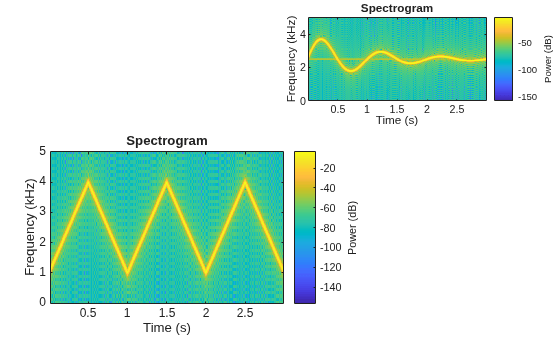

`spectrogram(___)`

`spectrogram(___,freqloc)`

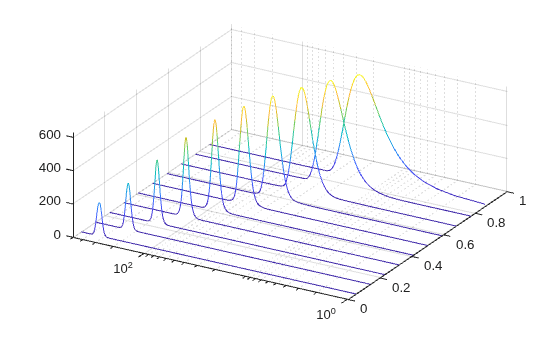

`[___,`

also
returns a matrix, `ps`

] = spectrogram(___)`ps`

, containing an estimate
of the power spectral density (PSD) or the power spectrum of each
segment.

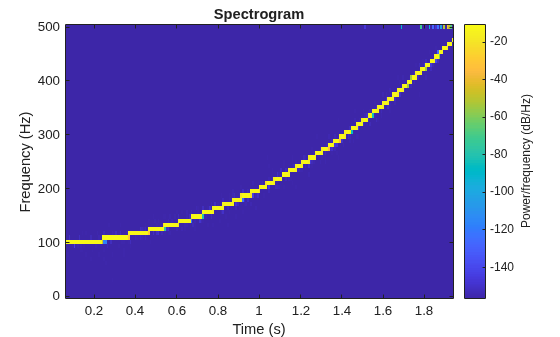

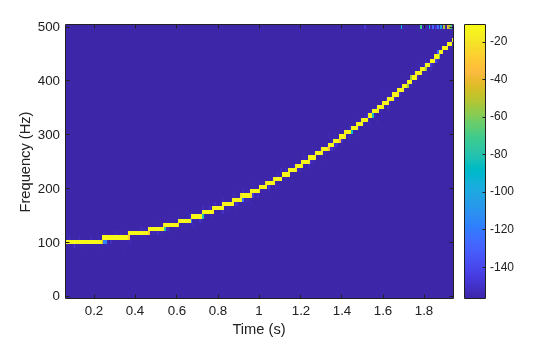

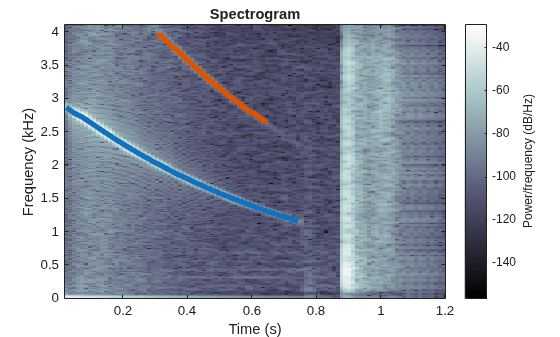

`[___] = spectrogram(___,'reassigned')`

reassigns
each PSD or power spectrum estimate to the location of its center
of energy. If your signal contains well-localized temporal or spectral
components, then this option generates a sharper spectrogram.

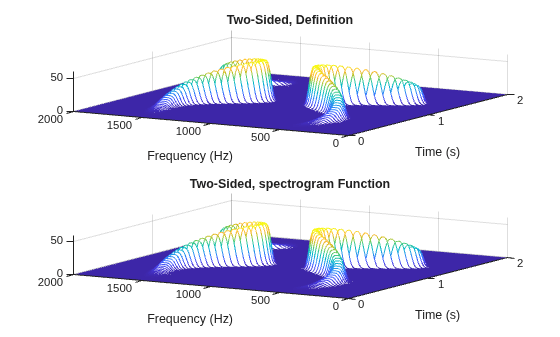

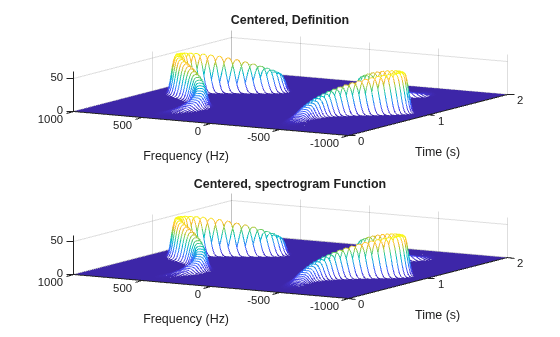

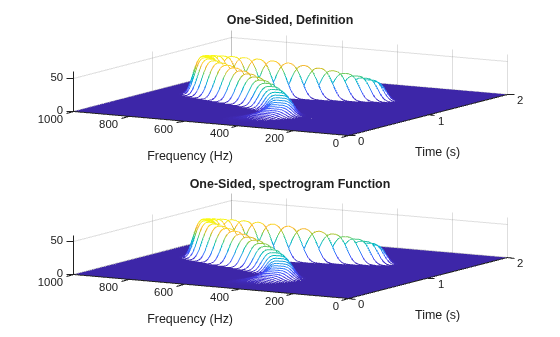

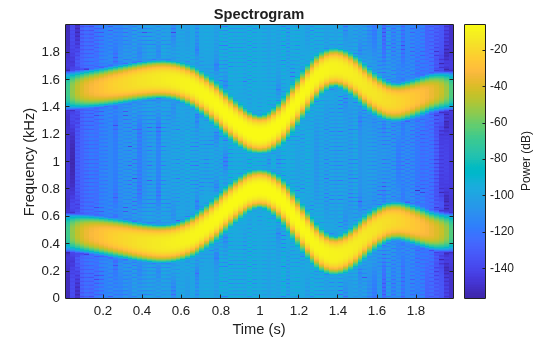

`[___] = spectrogram(___,`

returns
the PSD or power spectrum estimate over the frequency range specified
by `freqrange`

)`freqrange`

. Valid options for `freqrange`

are `'onesided'`

, `'twosided'`

,
and `'centered'`

.

`[___] = spectrogram(___,`

returns
PSD estimates if `spectrumtype`

)`spectrumtype`

is specified as `'psd'`

and
returns power spectrum estimates if `spectrumtype`

is
specified as `'power'`

.

If a short-time Fourier transform has zeros, its conversion
to decibels results in negative infinities that cannot be plotted.
To avoid this potential difficulty, `spectrogram`

adds `eps`

to
the short-time Fourier transform when you call it with no output arguments.

[1] Oppenheim, Alan V., Ronald W. Schafer, and John R. Buck. Discrete-Time Signal Processing. 2nd Ed. Upper Saddle River, NJ: Prentice Hall, 1999.

[2] Rabiner, Lawrence R., and Ronald W. Schafer. Digital Processing of Speech Signals. Englewood Cliffs, NJ: Prentice-Hall, 1978.

[3] Chassande-Motin, Éric, François Auger, and Patrick Flandrin. “Reassignment.” In Time-Frequency Analysis: Concepts and Methods. Edited by Franz Hlawatsch and François Auger. London: ISTE/John Wiley and Sons, 2008.

[4] Fulop, Sean A., and Kelly Fitz. “Algorithms for computing the time-corrected instantaneous frequency (reassigned) spectrogram, with applications.” Journal of the Acoustical Society of America. Vol. 119, January 2006, pp. 360–371.
