The Arduino Engineering Kit is an initiative by MathWorks® and Arduino®, which provides hands-on experience in building three engineering projects using MATLAB®, Simulink®, and Arduino hardware: self-balancing motorcycle, mobile rover, and drawing robot. The kit has complete documentation and project files containing the code to guide you from start to finish.

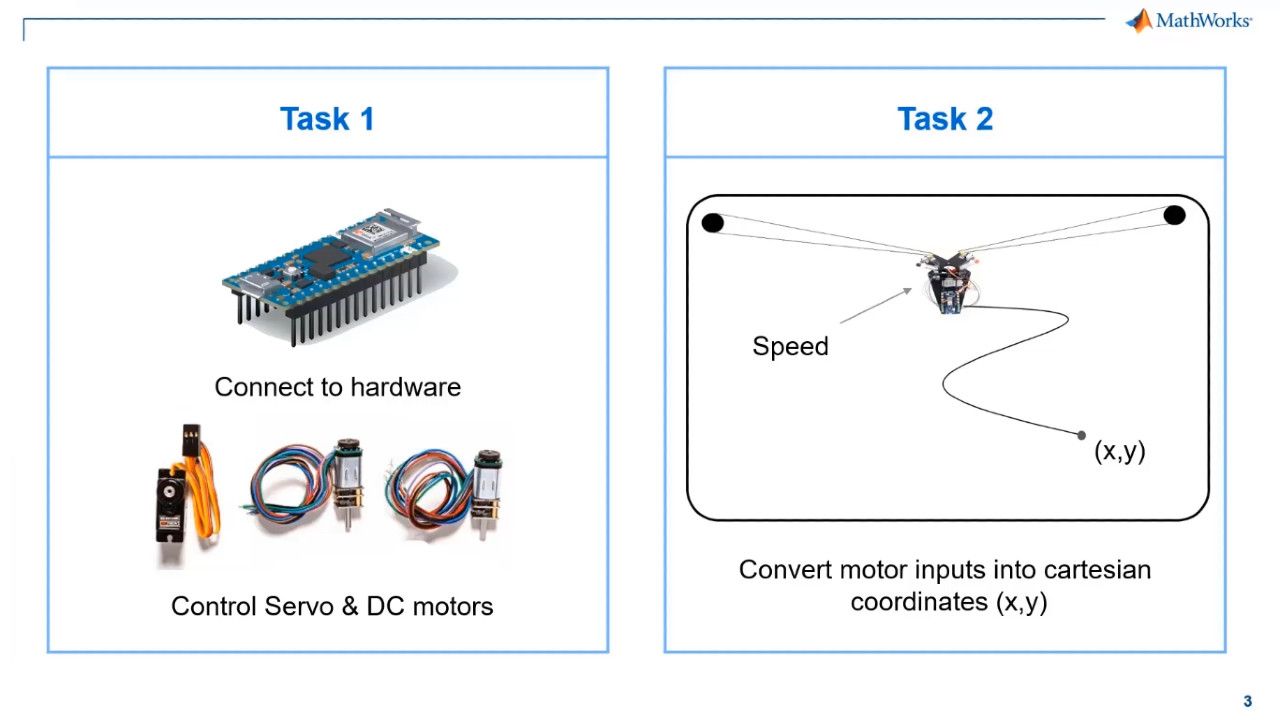

In this video series, learn the steps needed to implement the drawing robot. The project contains MATLAB live scripts for seven tasks (tasks 1–7) that are required to configure and run the drawing robot to replicate an image provided through a file or webcam.
This video series has three parts:
Part 1: Introduction to the Drawing Robot The first video in this series gives an overview of the Arduino Engineering Kit and the drawing robot.
Part 2: Configure and Test DC Motors of the Robot The second video in this series shows how to setup, configure, and calibrate DC motors of the Arduino Engineering Kit drawing robot.

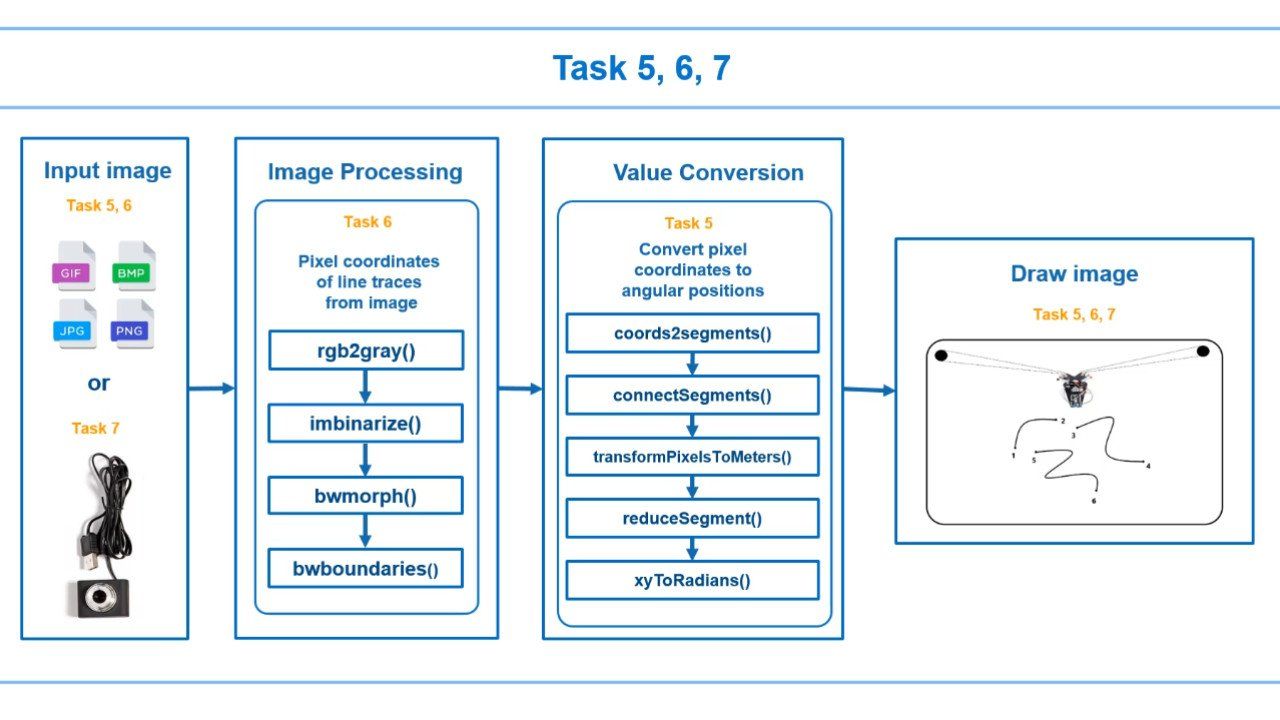

Part 3: Draw Images from a Picture or Webcam The third video in this series shows how to process an image from a file or webcam and convert it into motor commands to perform the drawing motion of the robot.
