Fibre Mode Solver and Simulator

Solves eigenvalue equation for a step-index fibre and allows plotting of fibre modes and simulation of fibre coupling and propagation.
965 Downloads
Updated 30 Jun 2020

View License

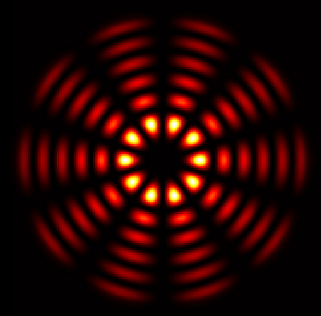

This library solves the eigenvalue equation for a step-index fibre under the weakly-guided, linear polarisation approximation, generating propagation constants and other parameters, including power in core, for each of the supported LP modes. (The solution is only valid for small fibre numerical apertures with step index profiles.) Mode amplitudes and intensities can be plotted, and arbitrary input fields can be coupled into the fibre, allowing the coupling efficiency and power in each mode to be calculated. The fields can be propagated along an arbitrary length of fibre.

Cite As

Michael Hughes (2024). Fibre Mode Solver and Simulator (https://www.mathworks.com/matlabcentral/fileexchange/77497-fibre-mode-solver-and-simulator), MATLAB Central File Exchange. Retrieved .

MATLAB Release Compatibility
Created with R2020a
Compatible with any release
Platform Compatibility
Windows macOS Linux
