Simscape Simulation Results Explorer

Tools for exploring Simscape™ simulation data and zero crossing statistics, created in MATLAB® code
4.9K Downloads
Updated 1 Sep 2016

View License

Editor's Note: This file was selected as MATLAB Central Pick of the Week

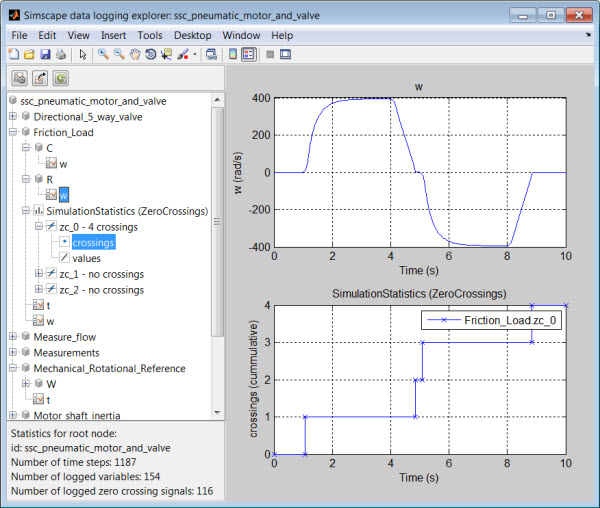

This submission contains an interactive GUI for navigating and plotting Simscape simulation data. You can navigate the Simscape logging object using a tree browser, and the data is plotted for you automatically. This makes it easier to plot the different physical quantities in your network without using sensors. To use this file, simply pass the Simscape logging object to the function:
>> ssc_explore(simlog)
This submission also contains a function that lists the components that generated zero crossings and indicate locations in the Simscape language code where the zero crossing was generated. To use this file, simply pass the Simscape logging object to the function:
>> ssc_printzcs(simlog)

To learn more about ssc_printzcs, view the comments within the file:
>> help ssc_printzcs

To see how to use Simscape logging, watch this video (3 min):
http://www.mathworks.com/videos/logging-simulation-data-68839.html

To see how zero-crossing statistics can help you speed up your simulations, watch this video (4 min):
http://www.mathworks.com/videos/finding-causes-of-slow-simulations-73445.html

To find other physical modeling examples, search for posts with the keyword "physical modeling"
http://www.mathworks.com/matlabcentral/fileexchange/?term=%22physical+modeling%22

To learn more about MathWorks Physical Modeling Products, go to: http://www.mathworks.com/physical-modeling/

Cite As

Atul Suri (2024). Simscape Simulation Results Explorer (https://www.mathworks.com/matlabcentral/fileexchange/28184-simscape-simulation-results-explorer), MATLAB Central File Exchange. Retrieved .

MATLAB Release Compatibility
Created with R2010a
Compatible with any release
Platform Compatibility
Windows macOS Linux
Acknowledgements

Inspired: simparto pump selector beta

Community Treasure Hunt

Find the treasures in MATLAB Central and discover how the community can help you!

Start Hunting!
Version Published Release Notes
1.10.0.1

Updated license

1.10.0.0

Added links to videos that demonstrate these functions.

1.7.0.0

Updated for R2012b including adding support for zero-crossing statistics.

1.5.0.0

Updated ssc_explore to include several new capabilities. New enhancements include:
* Multi-selection
* Reload data
* Plot options
** Marker selection
** Time axis linking
** Axis alignment
** Custom units

1.1.0.0

updated trademark

1.0.0.0
