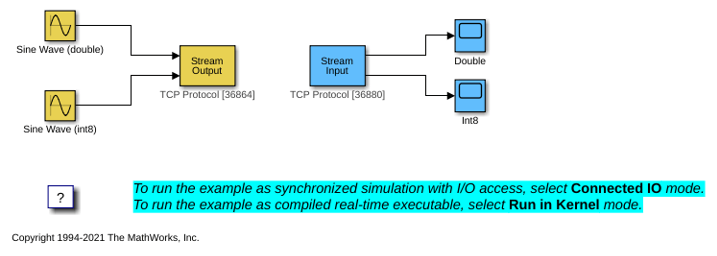

This example shows how to transfer data through TCP communication protocol by using ASCII encoding. The model sends data within one computer, from one TCP port to another. You can modify the model to communicate between two computers by splitting this model into its send and receive parts and running the models on two computers. The yellow blocks are used to send the data, the blue blocks are used to receive the data. Then, please enter the host names or IP addresses of the two computers into the appropriate fields in the Board Setup dialog.
To switch to normal mode if needed, on the Simulation tab, select Normal mode.
To start the real-time execution, on the Simulation tab, click Run.
To start the real-time execution in external mode, on the Desktop Real-Time tab, click Run in Real-Time. The model builds, connects to external mode, and starts.
These commands open the model and suppressing warning about board not installed.
w = warning('off', 'sldrt:blkgui:boardnotonlist'); open_system(fullfile(matlabroot,'toolbox','sldrt','sldrtexamples','sldrtex_streamio')); warning(w);
close_system(find_system(gcs ,'BlockType', 'Scope'));
clear close all bdclose all
