3D Scenes for Simulation in Unreal Engine Environment

These products provide prebuilt scenes in which you can simulate and visualize the performance of dynamic systems in a 3D environment.

• Vehicle Dynamics Blockset™

• Aerospace Blockset™

• Automated Driving Toolbox™

• UAV Toolbox

• Robotics System Toolbox™

• Simulink^® 3D Animation™

The scenes are rendered using the Unreal Engine^® from Epic Games^®. You can also download and install any prebuilt scene for 3D simulations. To visualize the 3D environment in the installed scene, you must have the required product licenses.

Install Scenes

To install and simulate in a scene using Simulink:

1. Add a Simulation 3D Scene Configuration block to your Simulink model.

2. Set the Scene source parameter to Default Scenes.

3. View the currently available scenes in the Scene name parameter. To install a new scene, click Install.

4. In the Add-on Installer dialog box, select the scenes.

5. To download and install the scenes, click Next and follow the prompts. MATLAB^® restarts after the scenes are installed.

6. Select the scene from the Scene name parameter.

To simulate in a scene using MATLAB:

1. Download and install the scenes using the Install option in the Simulation 3D Scene Configuration block.

2. Create a sim3d.World object.

3. Set the Scene argument to the scene name.

The table lists the scenes that you can install and the product licenses required for simulation.

Scene Name		Products Required for Simulation

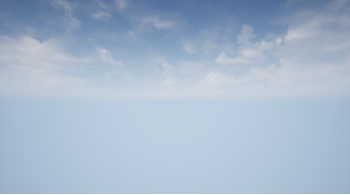

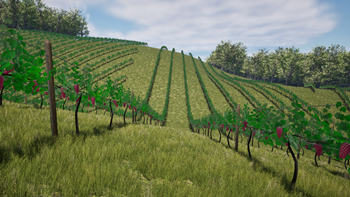

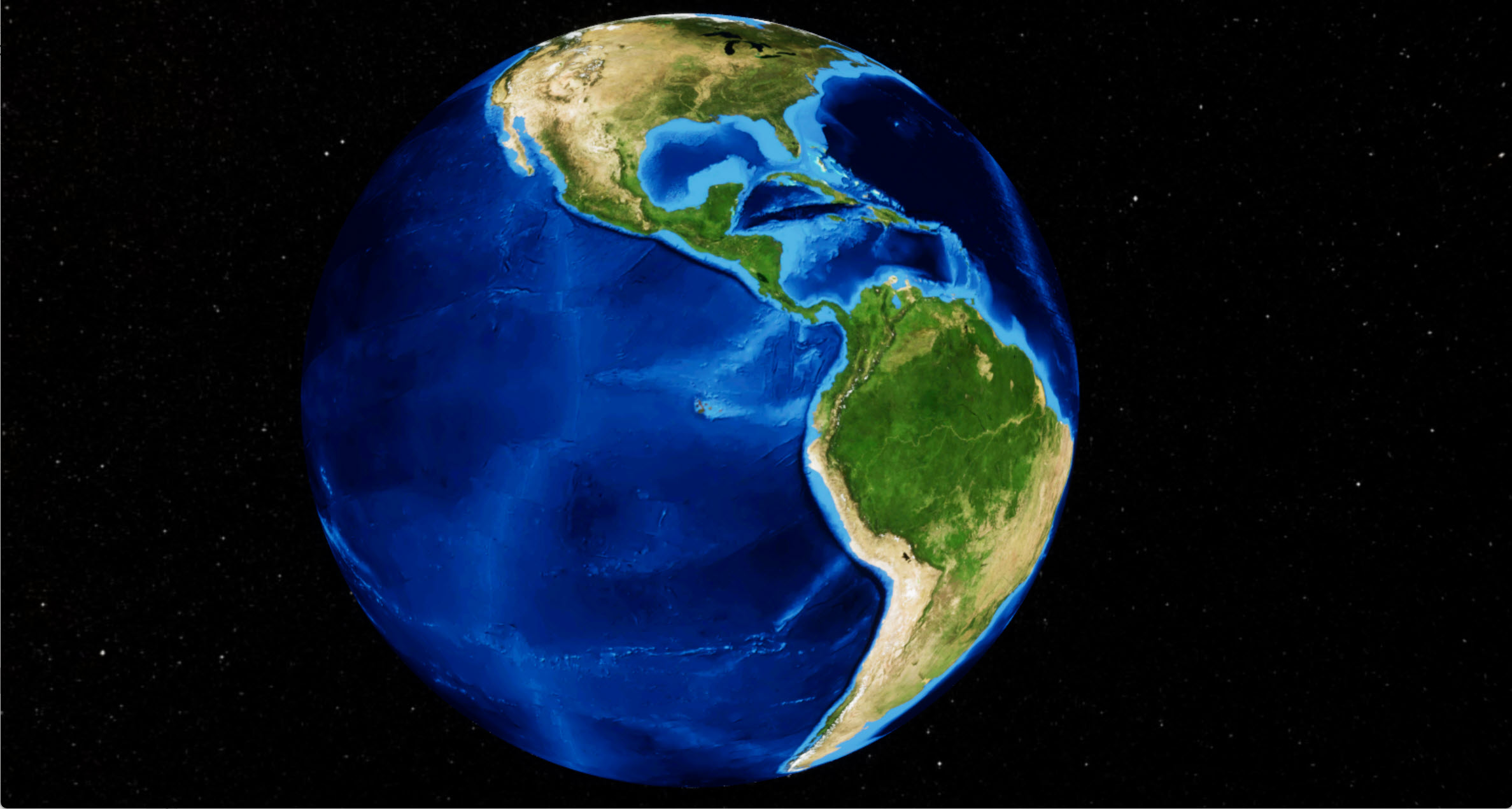

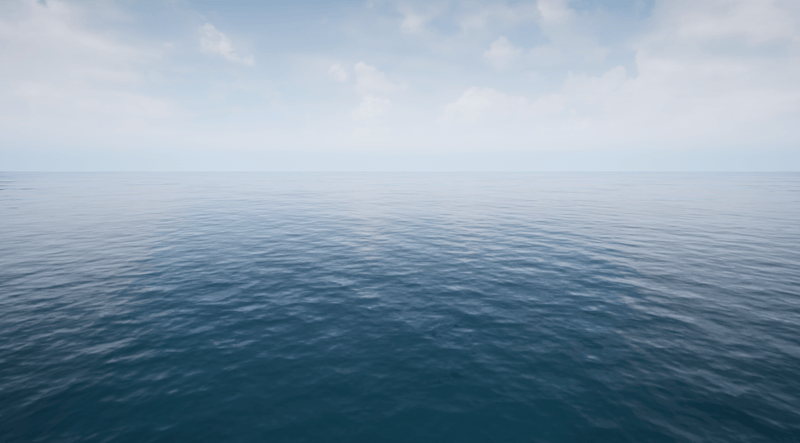

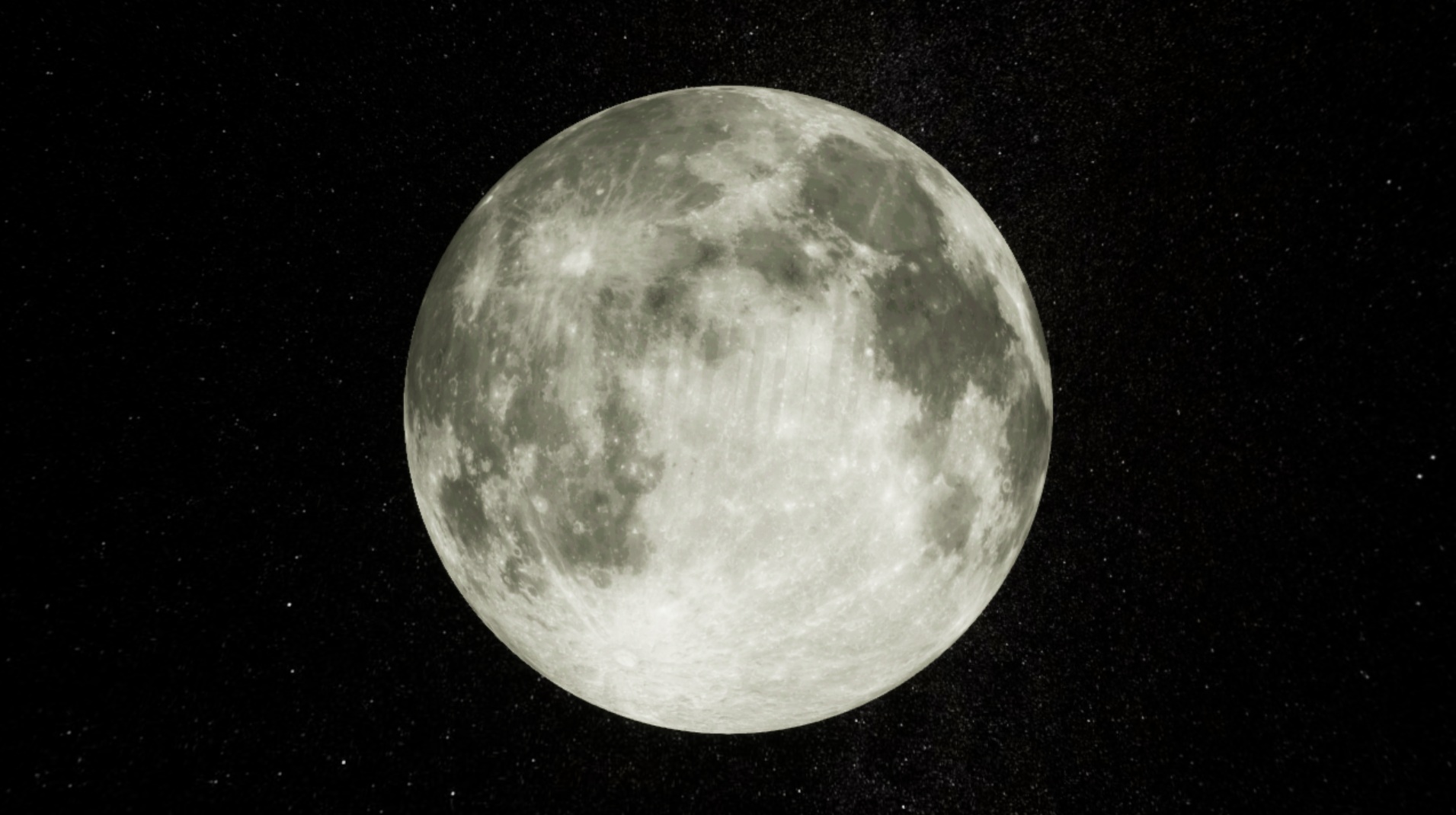

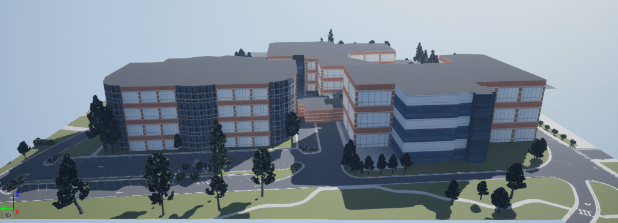

Empty scene		Simulink 3D Animation

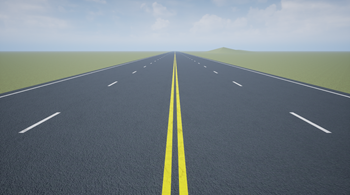

Straight road

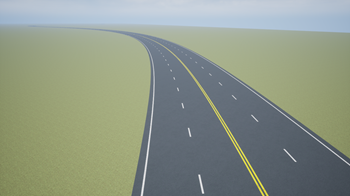

Curved road

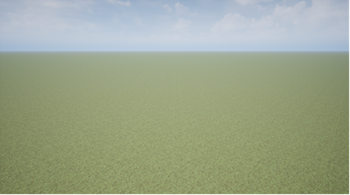

Empty Grass
Open surface		Vehicle Dynamics Blockset or Automated Driving Toolbox

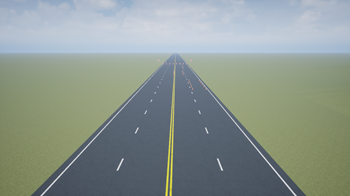

Double lane change

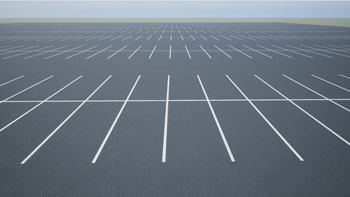

Parking lot
Large parking lot

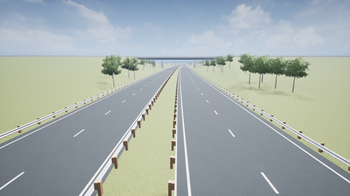

US highway

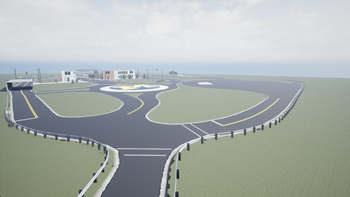

Virtual Mcity

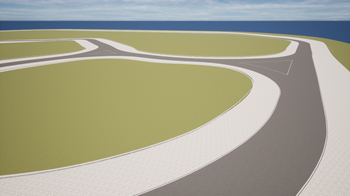

ZalaZONE High-Speed Handling Course		Vehicle Dynamics Blockset

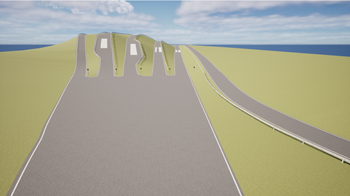

ZalaZONE Hill Tracks

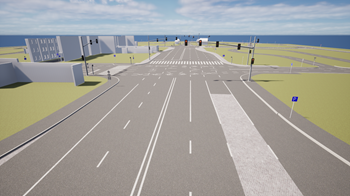

ZalaZONE Smart City		Automated Driving Toolbox

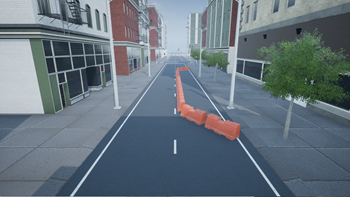

US city block		Vehicle Dynamics Blockset or Automated Driving Toolbox or UAV Toolbox

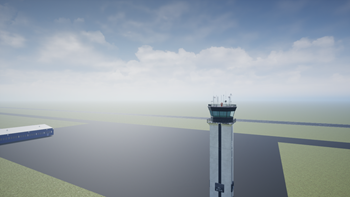

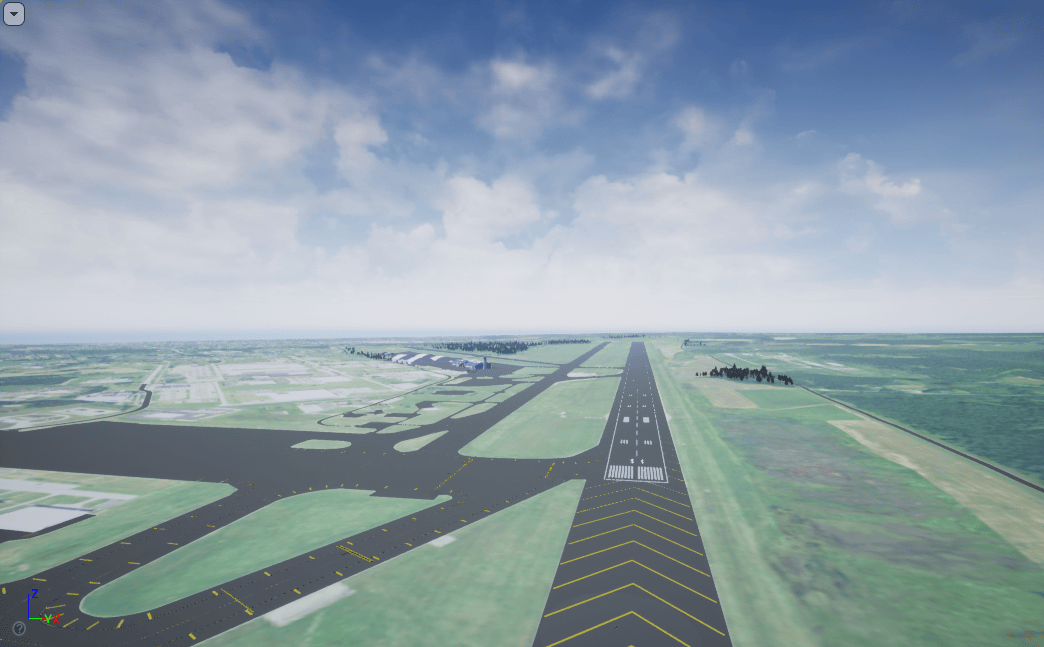

Airport		Aerospace Blockset

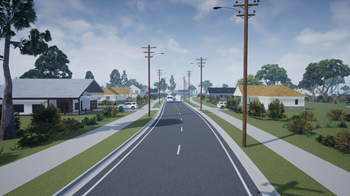

Suburban scene		UAV Toolbox

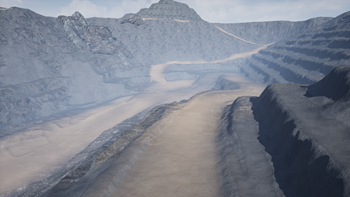

Offroad pit mining		Robotics System Toolbox
Construction site scene

Default Scenes

The table lists the scenes available when you install the product.

Default Scenes	Product
Empty scene Blank scene	Simulink 3D Animation
Empty grass Open surface Double lane change	Vehicle Dynamics Blockset
Straight road Curved road Large parking lot US city block Empty grass	Automated Driving Toolbox
US city block	UAV Toolbox
Airport	Aerospace Blockset
Empty scene Straight road Curved road	Robotics System Toolbox
