Chebyshev Window

The Chebyshev window minimizes the mainlobe width, given a particular sidelobe height. It is characterized by an equiripple behavior. Its sidelobes all have the same height.

Generate and display a 50-point Chebyshev window with a sidelobe attenuation of 40 dB.

w = chebwin(50,40);
wvtool(w)

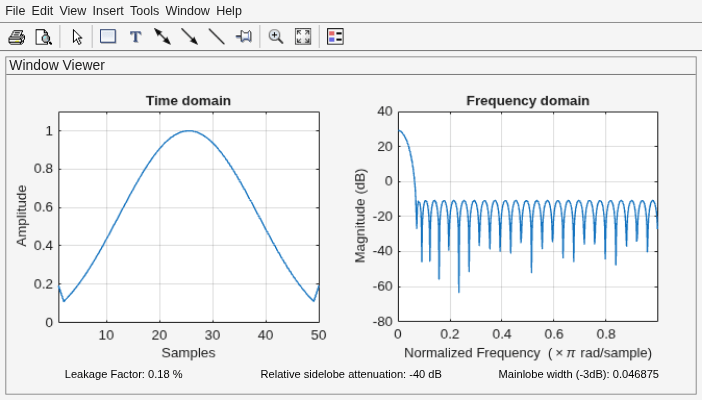

Figure Window Visualization Tool contains 2 axes objects and other objects of type uimenu, uitoolbar, uipanel. Axes object 1 with title Time domain contains an object of type line. Axes object 2 with title Frequency domain contains an object of type line.

As shown in the time-domain plot, the Chebyshev window has large spikes at its outer samples.
