Hydraulically-Actuated Driveline Clutch

This example shows an engine driving an inertial load via a hydraulically-controlled clutch. It shows how Simscape™ Driveline™ can be used in conjunction with Foundation Library isothermal liquid blocks to model hydraulically-actuated drivelines.

Model

Simulation Results from Simscape Logging

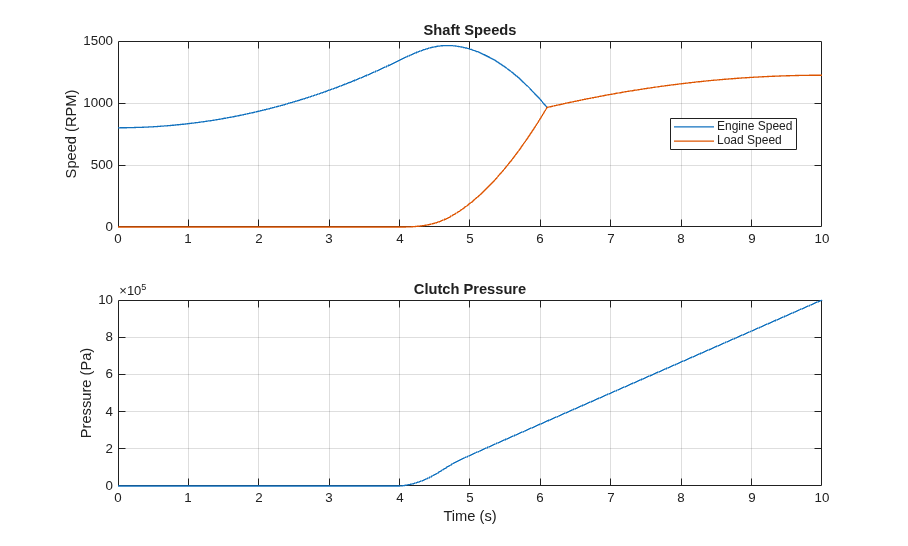

The plot below shows the speeds of an engine and load as a clutch is engaged. Once the clutch is fully engaged the shafts rotate at the same speed. The clutch actuator is modeled as a hydraulic system.
