visualize

Visualize idealized amplifier characteristics, S-parameter data, and filter response

Since R2024b

Syntax

visualize(idbbobj)

visualize(idbbobj,hfig)

Description

visualize(idbbobj) plots the amplifier characteristics, S-parameter data, or the filter response of the idealized amplifier, S-parameter data, or RF filter specified in idbbobj.

visualize(idbbobj,hfig) plots the amplifier characteristics, S-parameter data, or the filter response in the figure specified in hfig.

Examples

collapse all

Visualize S-Parameter Data

Open Live Script

Model RF system using S-parameters from a two-port Touchstone file.

rfspara = rf.Sparameter(DataSource="file",FileName='default.s2p');

Visualize the S-parameter data.

visualize(rfspara)

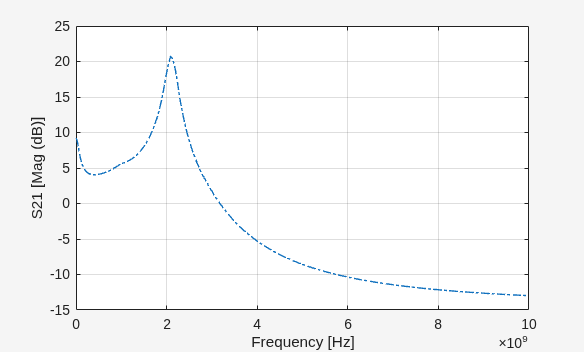

Figure contains an axes object. The axes object with xlabel Frequency [Hz], ylabel S21 [Mag (dB)] contains an object of type line.

Input Arguments

collapse all

`idbbobj` — Idealized amplifier, S-parameter data, or RF filter
`rf.Amplifier` | `rf.Sparameter` | `rf.Filter`

Idealized amplifier, S-parameter data, or RF filter, specified as one of these System objects:

rf.Amplifier — Plots the amplifier characteristics.
rf.Sparameter — Plots the S-parameter data.
rf.Filter — Plots the filter response.

`hfig` — Figure handle
`matlab.ui.Figure`

Figure handle, specified as a matlab.ui.Figure.

Version History

Introduced in R2024b
