Integrate Polyspace User Interface with Polyspace Access

If you use the Polyspace® desktop user interface, you can integrate the interface with Polyspace Access™ to enable interactions between your local machine and results that are stored on the Polyspace Access server.

To integrate your Polyspace user interface with Polyspace Access:

  1. In the Polyspace desktop user interface, go to Tools > Preferences and select the Server Configuration tab.

    Polyspace Preferences window in Polyspace desktop user interface

    If you are using the Polyspace Platform user interface (Polyspace Test), select Preferences from the toolstrip.

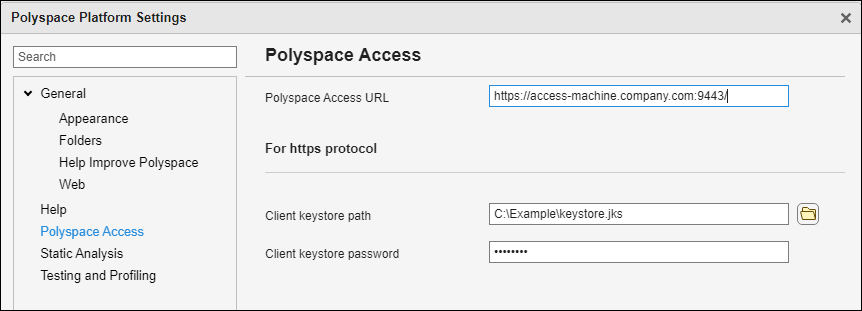

    Polyspace Preferences window in Polyspace Platform user interface

  2. Complete these fields:

    FieldDescription
    Polyspace Access URL

    Specify the URL you use to log into the Polyspace Access interface as:

    http(s)://hostName:port
    If you do not know the URL, contact your Polyspace Access administrator.

    Client keystore path

    Path to the key store file where you imported the signed certificate used to configure Polyspace Access with HTTPS. See Generate a Client Keystore.

    This field is mandatory if the Polyspace Access URL uses HTTPS. If the URL uses HTTP (not recommended), leave this field blank.

    Client keystore password

    The password associated with the key store file.

    This field is mandatory if the Polyspace Access URL uses HTTPS. If the URL uses HTTP (not recommended), leave this field blank.

    To check the connection between the desktop interface and the Polyspace Access instance that you specify in the Polyspace Access URL field, click Check Polyspace Access connection. If required, enter your Polyspace Access credentials. The Check Polyspace Access connection button is not available in the Polyspace Platform user interface.

To associate your Polyspace desktop interface with Polyspace Access, click Register Polyspace UI, click OK, and then close and restart the desktop interface for the changes to take effect. From the Polyspace Access web interface, you can now start the desktop interface and view open results. The Register Polyspace UI button is not available in the Polyspace Platform user interface.

Once you restart the desktop interface, select Access to:

Note

On Linux®, the desktop interface must already be open before you can view results currently open in Polyspace Access.

Generate a Client Keystore

If Polyspace Access is configured to use HTTPS, generate a Java® Key Store (JKS) file to enable communications between Polyspace Access and these Polyspace interfaces on client machines:

Obtain the signed certificate used to configure Polyspace Access with HTTPS and import that certificate to the JKS file that you generate.

Obtain Polyspace Access Signed Certificate

If you manage the Polyspace Access software installation, copy the signed certificate that you obtained to configure Polyspace Access with HTTPS to client machines. Use a utility such as scp to securely copy the certificate from the server machine where you installed Polyspace Access to client machines.

If you are a Polyspace Access end user, contact your Polyspace administrator to obtain a copy of the signed certificate. Alternatively, Download Signed Certificate from Web Browser.

Generate JKS file and Import Polyspace Access Signed Certificate

To generate the jks file, use the keytool key and certificate management utility. The keytool utility is available with your Polyspace desktop or server product installation in these folders:

  • Windows®: polyspaceroot\sys\java\jre\win64\jre\bin

  • Linux: polyspaceroot/sys/java/jre/glnxa64/jre/bin

polyspaceroot is your product installation folder, for instance /usr/local/Polyspace/R2024b.

It is recommended that you use the keytool utility that ships with your Polyspace desktop or server product installation to generate the keystore file. keytool utilities from JDK alternatives such as OpenJDK might generate keystore files with incompatible formats and should not be used.

For example, if you obtained Polyspace Access signed certificate file admin_cert.cer, generate the corresponding JKS file by using this command:

keytool -import -trustcacerts -alias cert -file admin_cert.cer -keystore client-cert.jks -storepass password
The command outputs file client-cert.jks. The password associated with this key store file is password.

Download Signed Certificate from Web Browser

To download a copy of the Polyspace Access signed certificate, follow your web browser instructions on how to view and download a certificate.

After you download the certificate, follow the instructions in Generate JKS file and Import Polyspace Access Signed Certificate to generate the client keystore.

Note

Talk to your network security administrator before downloading a signed certificate from your web browser. If your network is not protected from unauthorized access, downloading a certificate from a browser might leave you vulnerable to a man in the middle (MITM) attack.
