Interactively Identify Geographic Locations

Find the latitude-longitude coordinates of locations on a map by interactively selecting the locations.

This page shows how to create similar maps using map axes (since R2023a) and axesm-based maps. For a comparison of map axes and axesm-based maps, including when to use each type of display, see Choose a 2-D Map Display.

Load Data

Read a shapefile containing world land areas into the workspace.

land = readgeotable("landareas.shp");

Find Coordinates on Map Axes

Interactively identify locations on map axes by using the ginput function.

Create a new map that uses a sinusoidal projection. Create the projected CRS using the ESRI code 54008. Provide geographic context for the map by displaying the land areas.

figure
proj = projcrs(54008,Authority="ESRI");
newmap(proj)

geoplot(land)
hold on

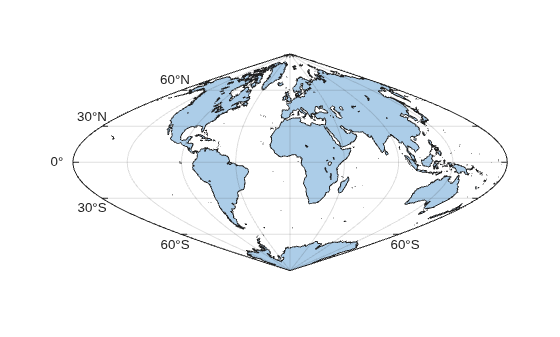

Figure contains an axes object with type mapaxes. The mapaxes object contains an object of type polygon.

Identify the coordinates of four locations. To use predefined points, specify interactivelySelectLocations as false. To interactively select the locations, specify interactivelySelectLocations as true.

interactivelySelectLocations = false;
if interactivelySelectLocations
    [lat,lon] = ginput(4);
else
    lat = [38 -12 20 34];
    lon = [-98 -55 17 89];
end

Display the locations on the map.

geoscatter(lat,lon,"filled")

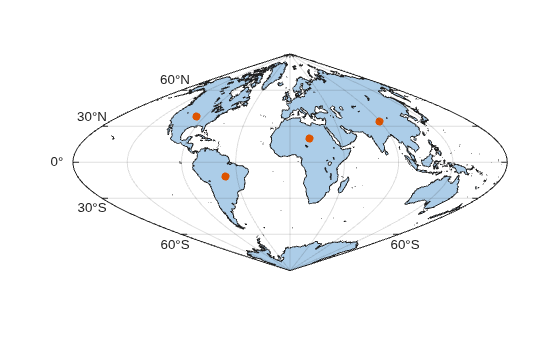

Figure contains an axes object with type mapaxes. The mapaxes object contains 2 objects of type polygon, scatter.

Alternatively, you can return the current mouse position on a map axes by using the CurrentPoint property of the axes, as in get(gca,"CurrentPoint").

Find Coordinates on axesm-Based Maps

Interactively identify locations on axesm-based maps by using the inputm function.

Create an axesm-based map that uses a sinusoidal projection. Provide geographic context for the map by displaying the land areas.

figure
axesm sinusoid
framem on
gridm on
geoshow(land)

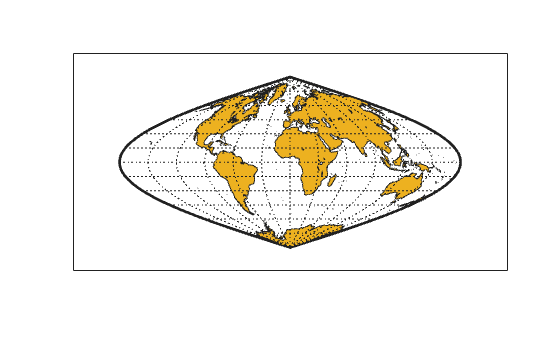

Figure contains an axes object. The axes object contains 540 objects of type patch, line.

Identify the coordinates of four locations. To use predefined points, specify interactivelySelectLocations as false. To interactively select the locations, specify interactivelySelectLocations as true.

interactivelySelectLocations = false;
if interactivelySelectLocations
    [lat,lon] = ginput(4);
else
    lat = [38 -12 20 34];
    lon = [-96 -55 17 89];
end

Display the locations on the map.

scatterm(lat,lon,"filled","r")

Figure contains an axes object. The axes object contains 541 objects of type patch, scatter, line.

At each location, calculate the area scale and the maximum angular deformation of the map projection. The result indicates that the sinusoid projection preserves area, but has variable angular distortion across the map (less distortion near the equator and more distortion near the poles).

[areascale,maxangdef] = distortcalc(lat,lon)
areascale = 1×4

    1.0000    1.0000    1.0000    1.0000

maxangdef = 1×4

   54.5671   11.3974    5.8094   46.9515

Alternatively, you can return the current mouse position on an axesm-based map by using the gcpmap function. This function is analogous to get(gca,"CurrentPoint").
